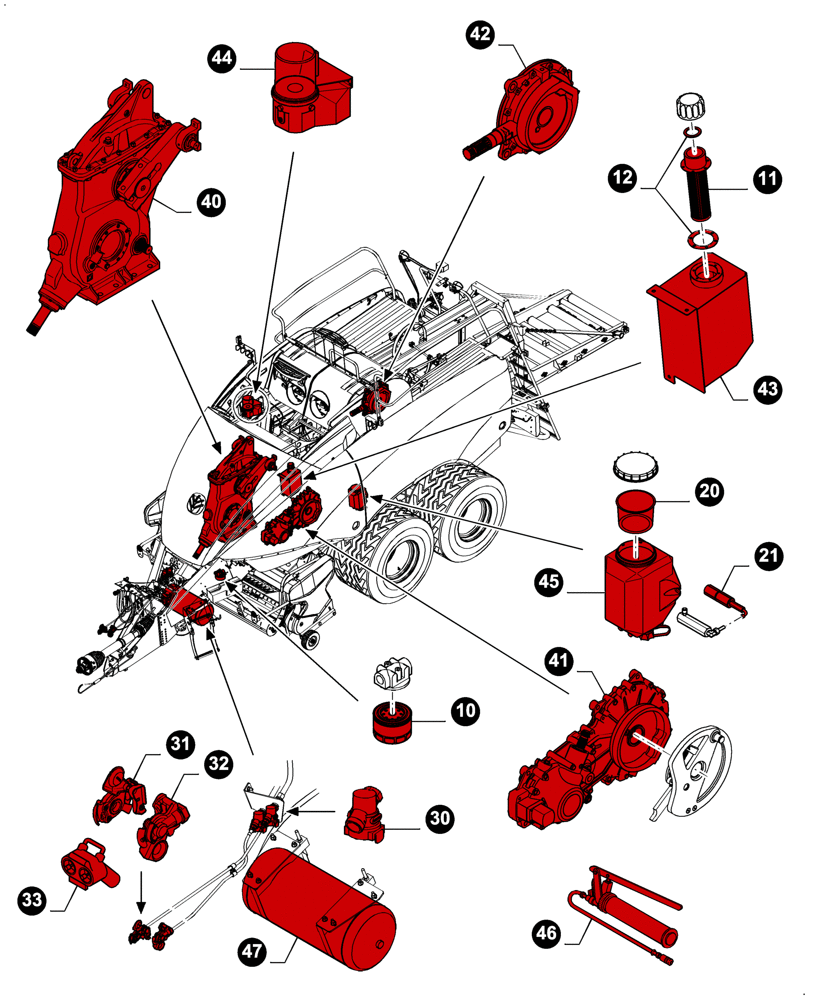

Запчасти Case IH LB324P (05.100.03[01]) - MAINTENANCE PARTS, FILTERS & CAPACITIES (05) - SERVICE & MAINTENANCE

- HYD. OIL FILTERS -

1шт.

10

84078520

HYDRAULIC OIL FILTER

Element: 25 Micron, Bale density system hydraulic oil tank

1шт.

WHEN THE INDICATOR ON TOP OF THE FILTER HEAD ENTERS THE RED SECTION

1шт.

600 HOURS OR ANNUALLY OR EVERY 10000 BALES

1шт.

11

87054105

HYDRAULIC OIL FILTER

Bale density system hydraulic oil tank

1шт.

12

87054107

SEAL KIT

Bale density system hydraulic oil tank

1шт.

- LUBE OIL FILTERS -

1шт.

20

84818525

HYDRAULIC OIL FILTER

Strainer element, Automatic oiler reservoir

1шт.

21

84819466

HYDRAULIC OIL FILTER

Automatic oiler reservoir

1шт.

250 HOURS OR ANNUALLY OR EVERY 10000 BALES

1шт.

- AIR FILTERS -

1шт.

30

9512545

AIR FILTER

Cartridge, Air brake line filter

2шт.

250 HOURS OR ANNUALLY OR EVERY 10000 BALES

1шт.

DAMAGED FILTER CARTRIDGES MUST BE REPLACED

1шт.

31

9512537

COUPLING BLOCK

Air filter, Brake control line, Pneumatic brakes

1шт.

250 HOURS OR ANNUALLY OR EVERY 10000 BALES

1шт.

YELLOW

1шт.

32

9512546

COUPLING BLOCK

Air filter, Compressed air supply, Pneumatic brakes

1шт.

250 HOURS OR ANNUALLY OR EVERY 10000 BALES

1шт.

RED

1шт.

33

84017270

COUPLING BLOCK

Air filter, Pneumatic brakes

1шт.

ANNUALLY

1шт.

MANDATORY FOR ITALY ONLY

1шт.

- CAPACITIES -

1шт.

40

Main drive gearbox oil (Qty. in liters), (5.28 US gallons) - CASE IH Akcela Gear 135 H EP 85W-140 (MS 1316), SAE 85W-140, Int. specifications: API-GL5, MIL-L-2105 D

20шт.

250 HOURS OR ANNUALLY OR EVERY 10000 BALES

1шт.

41

Stuffter drive gearbox oil (Qty. in liters), (1 US gallons) - CASE IH Akcela Gear 135 H EP 85W-140 (MS 1316), SAE 85W-140, Int. specifications: API-GL5, MIL-L-2105 D

3.75шт.

250 HOURS OR ANNUALLY OR EVERY 10000 BALES

1шт.

42

Knotter drive Gearbox oil (Qty. in liters), (0.73 US gallons) - CASE IH Akcela Gear 135 H EP 85W-140 (MS 1316), SAE 85W-140, Int. specifications: API-GL5, MIL-L-2105 D

2.75шт.

250 HOURS OR ANNUALLY OR EVERY 10000 BALES

1шт.

43

Bale density hydraulic circuit oil tank (Qty. in liters), (2.38 US gallons): Entire system capacity (4 liters - 1.06 US gallons: Reservoir capacity) - CASE IH Hydraulic Excavators Fluid BIO hydraulic oil (MS 1230), Int. specifications: DIN 51524 part 3 HV

9шт.

250 HOURS OR ANNUALLY OR EVERY 10000 BALES

1шт.

44

Automatic centralised greasing system (Qty. in liters), (0.53 US gallons) - CASE IH Akcela Multipurpose grease 251H EP or CASE IH Akcela Moly grease, NLGI 2

2шт.

45

Automatic oil lubrication system (Qty. in liters), (0,8 US gallons): Reservoir capacity - CASE IH Hydraulic Excavators Fluid BIO hydraulic oil (MS 1230), Int. specifications: DIN 51524 part 3 HVLP 46 or ISO VG 46, Viscosity grade: HV46

3шт.

46

Grease - CASE IH Akcela Multipurpose grease 251H EP or CASE IH Akcela Moly grease, NLGI 2

1шт.

47

Air reservoir WABCO 45L (Qty. in liters), (11.9 US gallons), 12.5 bar (181 psi), Air brake system

45шт.
