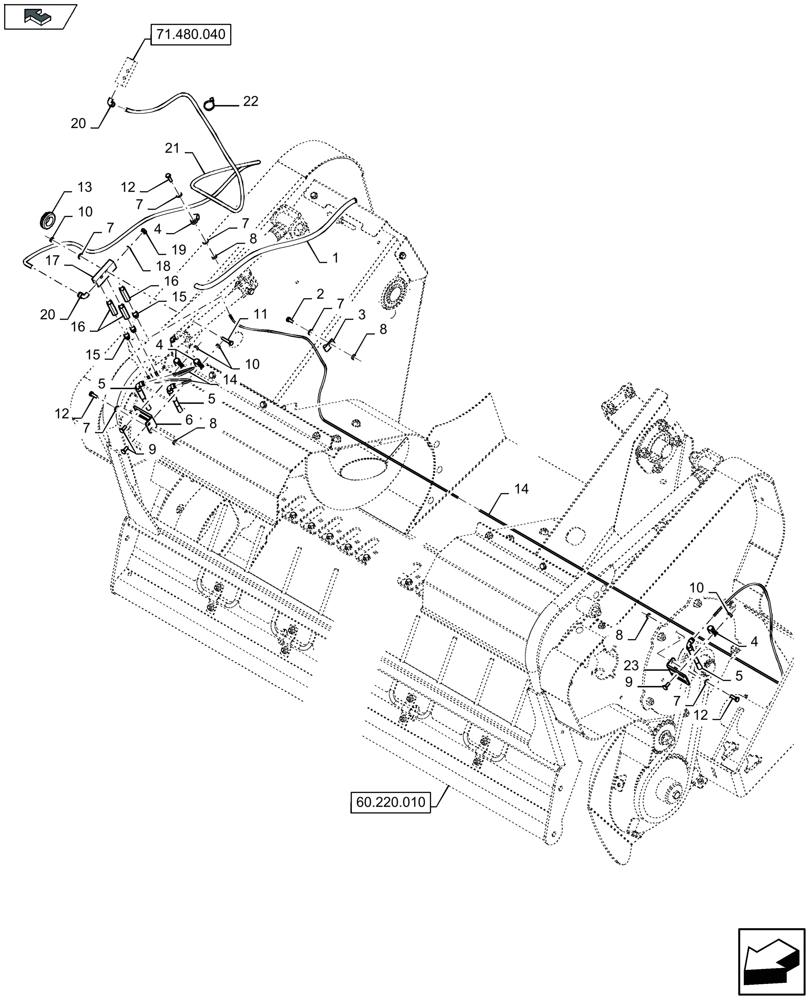

Запчасти Case IH LB324P (71.480.030) - AUTOMATIC OILING (71) - LUBRICATION SYSTEM

1

9507815

CONDUIT

,, Serial Range: -C027

1шт.

2

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

3

675162

WIRE CLAMP,6.3mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

4

335021

CLAMP,12mm ID, 6.4mm Bolt Hole, P Type

,, Serial Range: -C027

3шт.

4

335021

CLAMP,12mm ID, 6.4mm Bolt Hole, P Type

,, Start Serial: D028

5шт.

5

84818517

BRUSH

3шт.

6

84534394

SUPPORT

,, Serial Range: -C027

1шт.

6

84818662

SUPPORT

,, Start Serial: D028

1шт.

7

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

,, Serial Range: -C027

7шт.

7

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

,, Start Serial: D028

11шт.

8

9706755

NUT,M6, Cl 8

,, Serial Range: -C027

5шт.

8

9706755

NUT,M6, Cl 8

,, Start Serial: D028

3шт.

9

86512439

CARRIAGE BOLT,M6 x 16mm, Cl 8.8

3шт.

10

412152

NUT,M6 x 1, Cl 8.8

5шт.

11

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

2шт.

12

120100

BOLT,M6 x 20mm, Cl 8.8

,, Serial Range: -C027

4шт.

12

120100

BOLT,M6 x 20mm, Cl 8.8

,, Start Serial: D028

6шт.

13

173011

GROMMET,1” ID x 1.750” OD x .500” Tk

1шт.

14

47910681

HOSE

D = 4 MM

1шт.

15

84807243

HYD CONNECTOR

3шт.

16

84818522

REDUCER

3шт.

17

84818521

MANIFOLD

1шт.

18

9832305

WASHER,10mm ID x 14mm OD x 1.5mm Thk

1шт.

19

84807296

PLUG

1шт.

20

84819098

HYD CONNECTOR

2шт.

21

84818520

HOSE

Hose, D = 8 MM

1шт.

22

86566990

CABLE TIE,292mm OAL x 4.8mm W

5шт.

23

84534394

SUPPORT

1шт.
