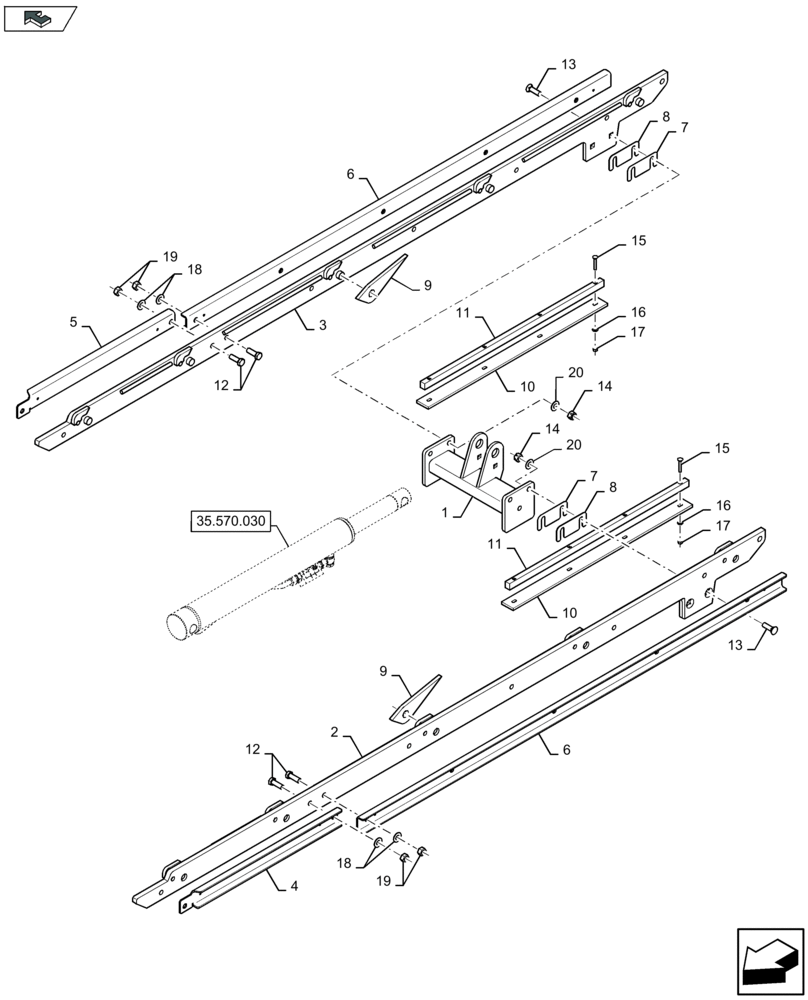

Запчасти Case IH LB324P (70.280.011) - STANDARD BALE EJECTION MECHANISM - D085 (70) - EJECTION

1

47449749

CROSSRAIL

1шт.

FOR LB324S, LB324P, LB324R, LB334S, LB334P, LB334R ONLY

1шт.

1

47449746

CROSSRAIL

1шт.

FOR LB424S, LB424R, LB434S, LB434R ONLY

1шт.

2

47440696

LATH

1шт.

3

47440650

LATH

1шт.

4

47470475

PROFILE

, Serial Range: -C098

1шт.

4

47656374

PROFILE

, Start Serial: D099

1шт.

5

47470473

PROFILE

, Serial Range: -C098

1шт.

5

47656378

PROFILE

, Start Serial: D099

1шт.

6

47496656

PROFILE

2шт.

7

84570796

SHIM,45mm OD x 1.07mm Thk

2шт.

8

84570801

SHIM,45mm OD x 1.91mm Thk

2шт.

9

84145759

TOOTH

, Serial Range: -C136

10шт.

9

47500176

TOOTH

, Start Serial: D137

10шт.

10

47449895

LATH

2шт.

11

47449897

LATH

2шт.

12

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

14шт.

13

87314103

PLOW BOLT,M12 x 1.75 x 40mm, Cl 10.9

, Serial Range: -C144

4шт.

13

47848415

PLOW BOLT

, Start Serial: D145

4шт.

14

9706685

NUT,M12 x 1.75, Cl 8

, Serial Range: -C098

4шт.

14

100038

NUT,M12 x 1.75, Cl 8

, Start Serial: D099

4шт.

15

412327

CARRIAGE BOLT,Short Sq Nk, M6 x 1 x 40mm, Full Thd, Cl 8.8

8шт.

16

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

8шт.

17

9706755

NUT,M6, Cl 8

8шт.

18

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

14шт.

19

9706685

NUT,M12 x 1.75, Cl 8

14шт.

20

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

, Serial Range: -C098

4шт.
