Запчасти Case IH LB324P (70.250.030) - ROLLER BALE CHUTE, SINGLE PIECE (70) - EJECTION

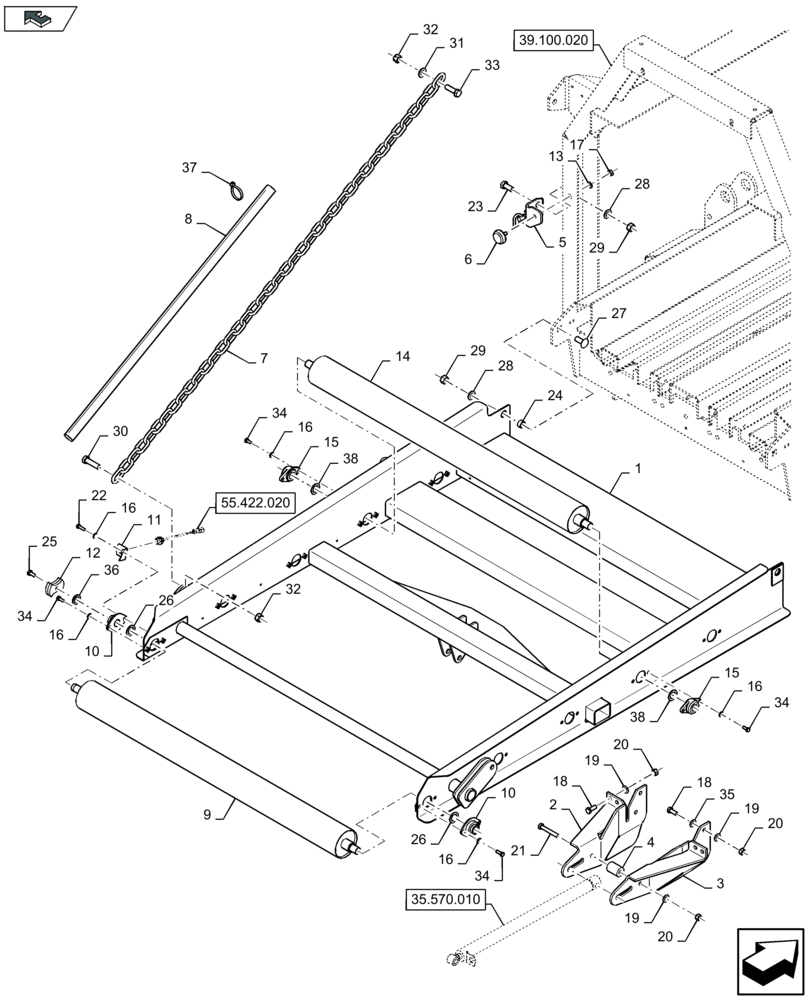

Схема запчастей Case IH LB324P - (70.250.030) - ROLLER BALE CHUTE, SINGLE PIECE (70) - EJECTION
12
18
3
31
16
10
19
26
23
34
15
36
20
35
home
14
32
29
39.100.020
26
35.570.010
11
38
16
8
33
30
20
16
21
15
34
24
9
28
2
32
29
34
17
20
6
18
37
28
27
1
16
25
55.422.020
19
7
4
10
38
22
34
16
19
5
13

Артикул

Название

Примечание

Количество

1

84421237

CHUTE

, Serial Range: -C084

1шт.

FOR LB324S LB324P LB324R LB334S LB334P LB334R ONLY

1шт.

1

47502025

CHUTE

, Start Serial: D085

1шт.

FOR LB324S LB324P LB324R LB334S LB334P LB334R ONLY

1шт.

1

84422360

CHUTE

, Serial Range: -C084

1шт.

FOR LB424S LB424R LB434S LB434R ONLY

1шт.

1

47402466

CHUTE

, Start Serial: D085

1шт.

FOR LB424S LB424R LB434S LB434R ONLY

1шт.

2

84213189

SUPPORT

, Serial Range: -C093

1шт.

2

47539095

SUPPORT

, Serial Range: -F094146

1шт.

2

47924742

SUPPORT

LH, Start Serial: D147

1шт.

3

84213193

SUPPORT

, Serial Range: -C093

1шт.

3

47539097

SUPPORT

, Serial Range: -F094146

1шт.

3

47924745

SUPPORT

RH, Start Serial: D147

1шт.

4

84037242

BUSHING

, Serial Range: -C146

1шт.

4

47924739

BUSHING

, Start Serial: D147

1шт.

5

84362567

TRACK CHAIN

, Serial Range: -C084

1шт.

5

47402068

CATCH

, Start Serial: D085

1шт.

6

190029

STOP,M10 x 1.0 x 20mm OD, Rubber

1шт.

7

84510155

CHAIN,1885mm L

2шт.

8

80292267

BAND

L=2M, Serial Range: -C121

2шт.

8

47730778

COVER

, Start Serial: D122

2шт.

9

84325271

ROLLER,108mm OD x 1329mm L

, Serial Range: -C084

1шт.

FOR LB424S LB424R LB434S LB434R ONLY

1шт.

9

84801337

ROLLER,108mm OD x 1127mm L

, Start Serial: D085

1шт.

FOR LB424S LB424R LB434S LB434R ONLY

1шт.

9

84325881

ROLLER,108mm OD x 945mm L

, Serial Range: -C084

1шт.

FOR LB324S LB324P LB324R LB334S LB334P LB334R ONLY

1шт.

9

84801333

ROLLER,108mm OD x 749mm L

, Start Serial: D085

1шт.

FOR LB324S LB324P LB324R LB334S LB334P LB334R ONLY

1шт.

10

9837806

FLANGED BEARING,25mm ID

2шт.

11

84586710

SUPPORT

, Serial Range: -C084

1шт.

12

84583160

PLATE

1шт.

13

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

14

84325274

ROLLER,108mm OD x 1329mm L

, Serial Range: -C084

4шт.

FOR LB424S LB424R LB434S LB434R ONLY

1шт.

14

84032863

ROLLER,108mm OD x 1127mm L

, Start Serial: D085

4шт.

FOR LB424S LB424R LB434S LB434R ONLY

1шт.

14

84325884

ROLLER,108mm OD x 945mm L

, Serial Range: -C084

4шт.

FOR LB324S LB324P LB324R LB334S LB334P LB334R ONLY

1шт.

14

84032866

ROLLER,108mm OD x 743mm L

, Start Serial: D085

4шт.

FOR LB324S LB324P LB324R LB334S LB334P LB334R ONLY

1шт.

15

9839087

NYLON BEARING,25.5mm ID x 50mm OD x 30mm Thk

8шт.

16

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

20шт.

17

100016

NUT,M10 x 1.5, Cl 8

1шт.

18

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

, Serial Range: -C071

8шт.

18

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

, Start Serial: D072

8шт.

19

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

9шт.

20

9706685

NUT,M12 x 1.75, Cl 8

9шт.

21

43158

BOLT,Hex, M12 x 80mm, Cl 8.8

, Serial Range: -C146

1шт.

21

86508581

BOLT,Hex, M12 x 90mm, Cl 8.8

, Start Serial: D147

1шт.

22

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

, Serial Range: -C084

1шт.

22

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

, Start Serial: D085

1шт.

23

86508583

BOLT,Hex, M16 x 35mm, Cl 8.8, Full Thd

1шт.

24

9837933

SPACER,17mm ID x 25.4mm OD x 12.5mm L

2шт.

25

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

, Serial Range: -C071

1шт.

25

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

, Serial Range: -F072084

1шт.

25

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

, Start Serial: D085

1шт.

26

140104

WASHER,26mm ID x 45mm OD x 3mm Thk

2шт.

27

86595832

CARRIAGE BOLT,Sht Sq Nk, M16 x 40mm, Cl 8.8, Full Thd

2шт.

28

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

3шт.

29

100020

NUT,M16 x 2.0, Cl 8

3шт.

30

323866

BOLT,Hex, M16 x 2.0 x 60mm, Cl 8.8

2шт.

31

378246

WASHER,17mm ID x 34mm OD x 3mm Thk

2шт.

32

86000441

NUT,M16 x 2.0, Cl 8

4шт.

33

120090

BOLT,Hex, M16 x 50mm, Cl 8.8

2шт.

34

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

19шт.

35

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

, Start Serial: D072

4шт.

36

447336

WASHER,11mm ID x 25mm OD x 3.99mm Thk

, Start Serial: D072

1шт.

37

396718

STRAP

, Serial Range: -F072093

4шт.

37

84449335

CABLE TIE,346mm L

, Start Serial: D094

4шт.

38

140104

WASHER,26mm ID x 45mm OD x 3mm Thk

, Serial Range: -C084

8шт.

Выбрано товаров: 72
