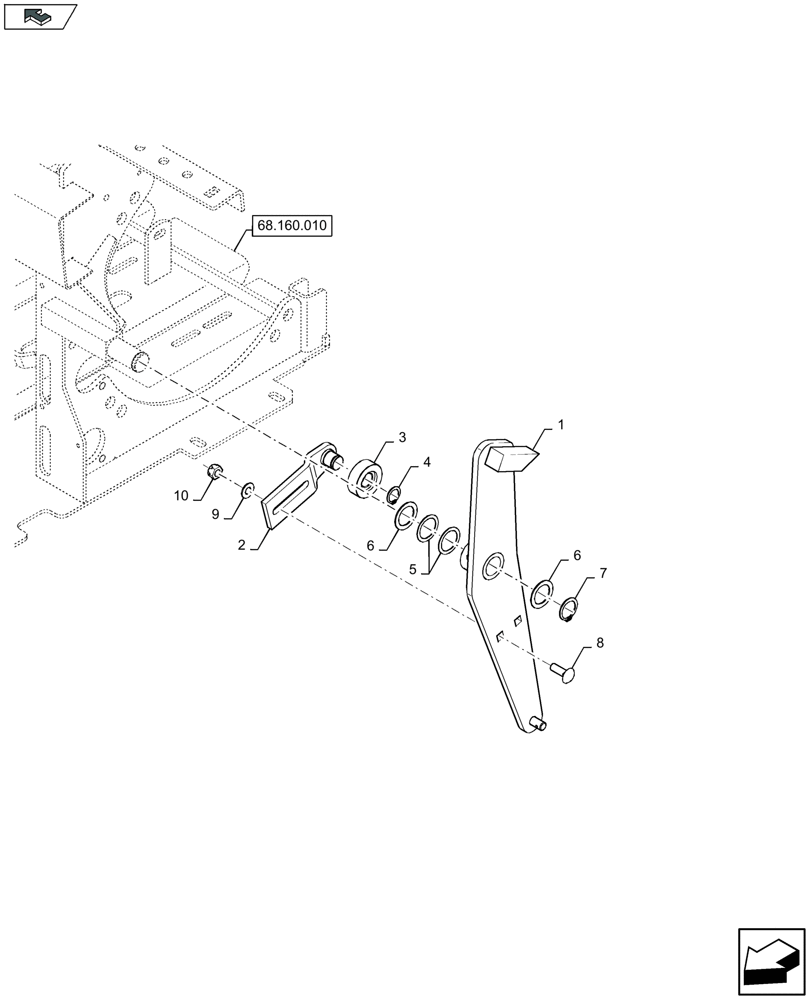

Запчасти Case IH LB324P (68.120.020) - KNOTTER CLUTCH ARM (68) - TYING/WRAPPING

1

84542157

ARM

1шт.

2

84000033

ARM

1шт.

3

9838376

ROLLER,50mm OD x 17mm L

1шт.

4

370024

CIRCLIP,M20, Ext

1шт.

5

84000011

WASHER,30.5mm ID x 40mm OD x 1mm Thk

2шт.

6

673

WASHER,29mm ID x 41mm OD x 1.52mm Thk

2шт.

7

300629

SNAP RING,M28, Ext

1шт.

8

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

2шт.

9

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

10

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.
