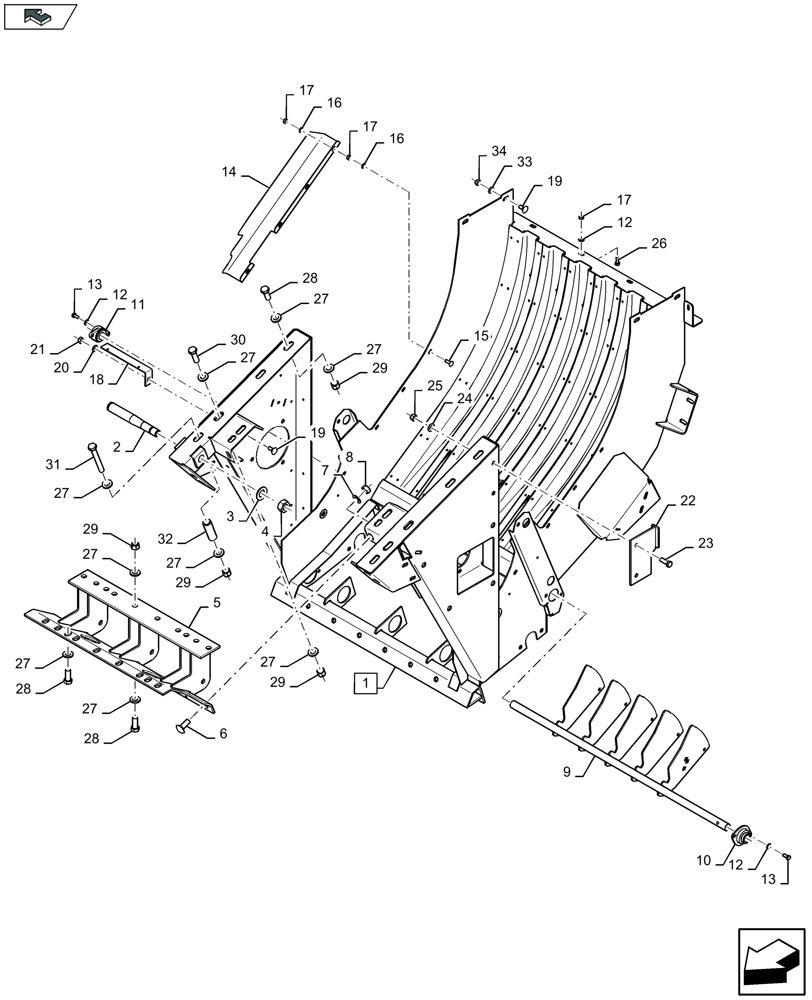

Запчасти Case IH LB324P (60.280.121) - FEED CHAMBER, FRAME - D151 (60) - PRODUCT FEEDING

1

47966986

CHANNEL

Incl 2 - 4

1шт.

2

47946646

PIN

1шт.

3

84606844

BELLEVILLE WASHER

1шт.

4

100024

NUT,M24 x 1.5, Cl 8

1шт.

5

47435137

SUPPORT

1шт.

6

86595832

CARRIAGE BOLT,Sht Sq Nk, M16 x 40mm, Cl 8.8, Full Thd

2шт.

7

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

2шт.

8

100020

NUT,M16 x 2.0, Cl 8

2шт.

9

47454389

SHAFT

1шт.

10

9837806

FLANGED BEARING,25mm ID

1шт.

11

9839087

NYLON BEARING,25.5mm ID x 50mm OD x 30mm Thk

1шт.

12

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

13

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

14

47509040

SHIELD

1шт.

15

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

4шт.

16

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

17

9706690

NUT,M8 x 1.25, Cl 8

12шт.

18

84073277

PLATE

1шт.

19

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

5шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

21

100016

NUT,M10 x 1.5, Cl 8

1шт.

22

84100500

PLATE

1шт.

23

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

2шт.

24

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

25

9706685

NUT,M12 x 1.75, Cl 8

2шт.

26

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

27

394631

WASHER,17mm ID x 34mm OD x 4mm Thk

41шт.

28

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

22шт.

29

86000441

NUT,M16 x 2.0, Cl 8

16шт.

30

120090

BOLT,Hex, M16 x 50mm, Cl 8.8

2шт.

31

321246

BOLT,Hex, M16 x 2 x 120mm, Cl 8.8

, Serial Range: -C165

1шт.

31

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

, Start Serial: D166

1шт.

32

47963523

SPACER

, Serial Range: -C165

1шт.

33

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

, Serial Range: -C165

4шт.

34

100016

NUT,M10 x 1.5, Cl 8

, Serial Range: -C165

4шт.

34

43435

FLANGE NUT,Hex, M10 x 1.5

, Start Serial: D166

4шт.
