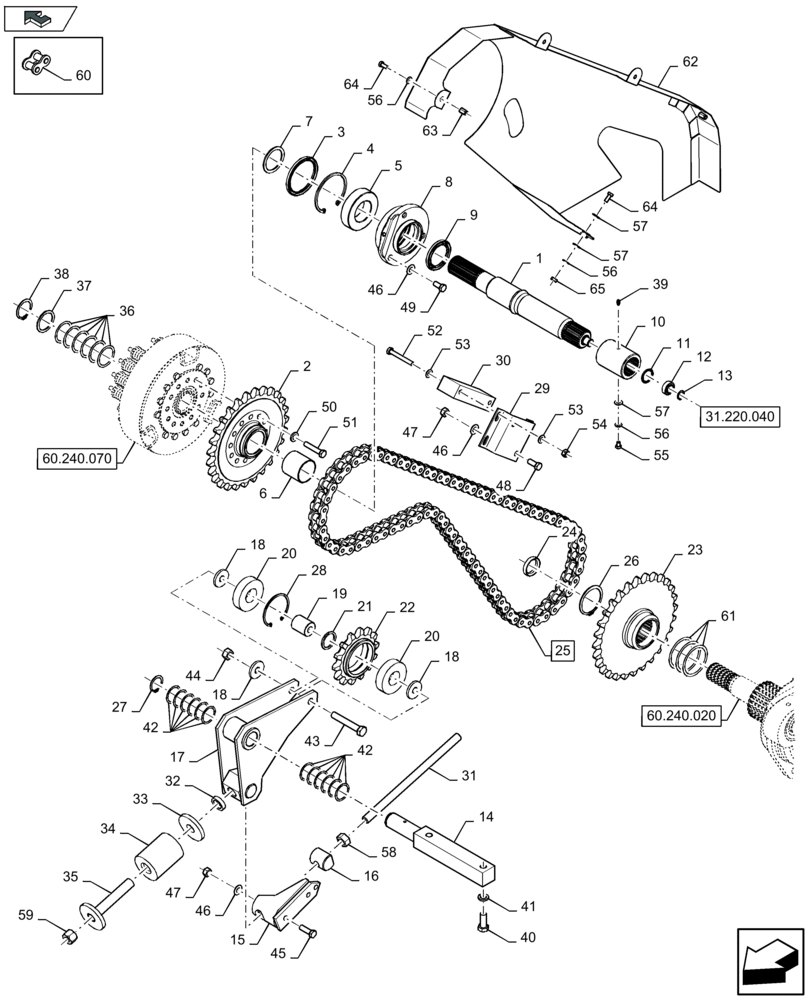

Запчасти Case IH LB324P (60.240.060) - PACKER DRIVE (60) - PRODUCT FEEDING

1

84078663

SHAFT

, Serial Range: -C159

1шт.

1

48030939

DRIVE SHAFT

, Start Serial: D160

1шт.

2

84078578

SPROCKET

1шт.

3

84074232

SEAL,90mm ID x 110mm OD x 8mm Thk

1шт.

4

301652

SNAP RING,M110 x 4mm, Internal

1шт.

5

84074234

BEARING, ROLLER, CYL,60mm ID x 110mm OD x 28mm W

1шт.

MAINTENANCE PART

1шт.

6

84074230

BUSHING,60mm ID x 65mm OD x 60mm L

1шт.

7

84074231

ADJUSTING PLATE

1шт.

8

84078076

BEARING HOUSING,75 mm ID x 130 mm OD x 64 mm

1шт.

9

552118

SEALING RING

1шт.

10

84078614

HYD CONNECTOR

1шт.

11

84012754

O-RING,5mm Thk x 25mm ID, 70 Duro

1шт.

12

84004940

SPHERICAL BEARING,20mm ID x 35mm OD x 16mm W

1шт.

MAINTENANCE PART

1шт.

13

370024

CIRCLIP,M20, Ext

1шт.

14

84074866

SHAFT

1шт.

15

84056456

SUPPORT

1шт.

16

84056463

HINGE

1шт.

17

84056457

IDLER LEVER

1шт.

18

451743

WASHER

3шт.

19

84039373

BUSHING

1шт.

20

210049

BALL BEARING,40mm ID x 90mm OD x 23mm W

2шт.

MAINTENANCE PART

1шт.

21

84039374

WASHER

1шт.

22

84039375

DRIVEN SPROCKET

1шт.

23

84320512

DRIVEN SPROCKET

, Serial Range: -C150

1шт.

23

47972548

SPROCKET

, Start Serial: D151

1шт.

24

9839353

SPACER,40.3mm ID x 52mm OD x 10mm L

, Serial Range: -C055

1шт.

24

47463638

RING,40.5mm ID x 65mm OD x 4mm Thk

, Start Serial: D056

1шт.

25

84320124

CHAIN,Roller, 86 Links x 31.75mm = 2730.5mm, #100

Incl 60

1шт.

MAINTENANCE PART

1шт.

26

300637

SNAP RING,M75, Ext

1шт.

27

370006

SNAP RING,M40, Ext

1шт.

28

370013

SNAP RING,M90 x 3mm Thk, Internal

1шт.

29

84320401

SUPPORT

1шт.

30

84042491

GUIDE

2шт.

31

84041797

THREADED ROD

1шт.

32

84037293

BUSHING,26mm ID x 40mm OD x 10mm L

1шт.

33

84041795

WASHER,26mm ID x 82mm OD x 10mm Thk

1шт.

34

84011609

INSULATOR BLOCK

1шт.

35

84041794

SUPPORT

1шт.

36

539450

SHIM,50mm ID x 62mm OD x 0.5mm Thk

6шт.

37

84078690

ADJUSTING PLATE

1шт.

38

370008

SNAP RING,M50, Ext

1шт.

39

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

1шт.

40

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

2шт.

41

86729275

LOCK WASHER,5/8 0.634 CST ZND

2шт.

42

442203

WASHER,41mm ID x 50mm OD x 0.91mm Thk

6шт.

43

374889

BOLT,Hex, M16 x 100mm, Cl 8.8

1шт.

44

100020

NUT,M16 x 2.0, Cl 8

1шт.

45

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

3шт.

46

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

47

9706685

NUT,M12 x 1.75, Cl 8

5шт.

48

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

, Serial Range: -C159

2шт.

48

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

, Start Serial: D160

2шт.

49

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

3шт.

50

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

12шт.

51

9706693

BOLT,M12 x 60mm, Cl 8.8

12шт.

52

120073

BOLT,Hex, M10 x 86.58mm, Cl 8.8

4шт.

53

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

54

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

55

84017119

SET SCREW,Hex, M8 x 16mm, Cl 8.8

1шт.

56

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

57

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

3шт.

58

9706694

NUT,Hex, M20, Cl 8

1шт.

59

412180

NUT,M20 x 2.5, Cl 8

1шт.

60

84320517

CONNECTING LINK

1шт.

MAINTENANCE PART

1шт.

61

84000263

ADJUSTING PLATE,76mm ID x 90mm OD x 0.25mm Thk

, Serial Range: -C150

3шт.

61

84294990

SHIM

, Start Serial: D151

6шт.

62

84562816

COVER PLATE

1шт.

63

87556072

NUT,Flng, 11.8mm OD x 19.8mm L

3шт.

64

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

65

9706690

NUT,M8 x 1.25, Cl 8

1шт.
