Запчасти Case IH LB324P (60.220.150) - PICK-UP, MAIN TRANSMISSION, RH - C084 (60) - PRODUCT FEEDING

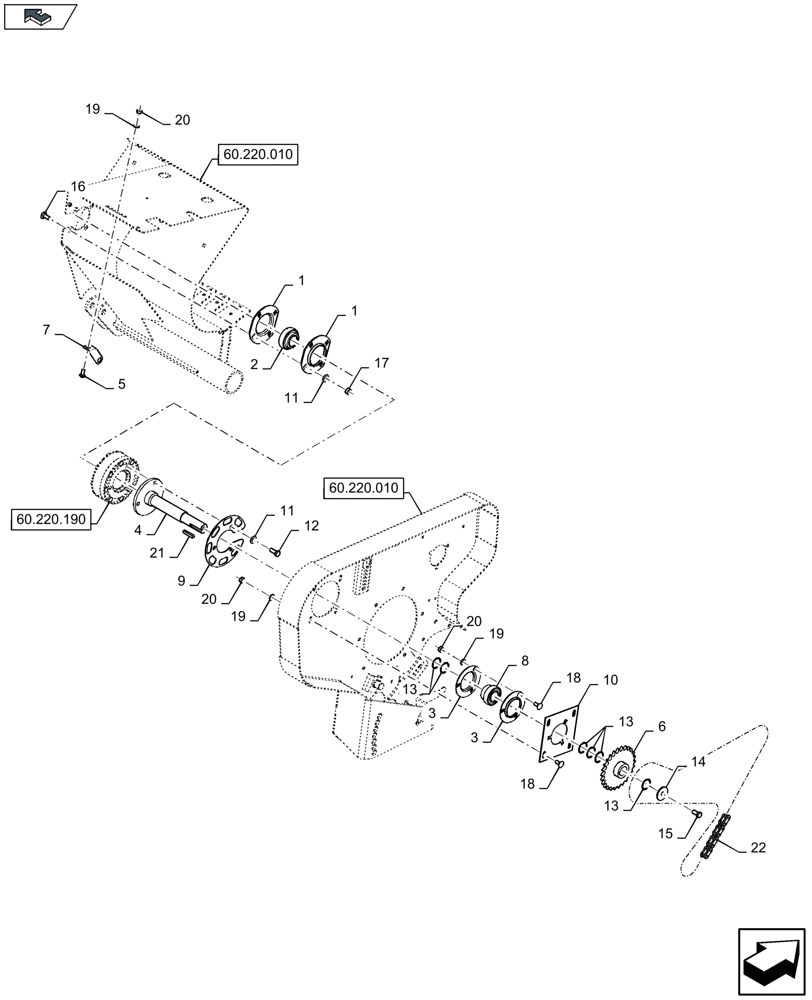

Схема запчастей Case IH LB324P - (60.220.150) - PICK-UP, MAIN TRANSMISSION, RH - C084 (60) - PRODUCT FEEDING
19
3
8
1
17
21
22
15
18
13
home
4
60.220.190
14
20
13
19
11
7
1
11
5
6
20
10
13
19
2
60.220.010
12
20
60.220.010
16
18
9
3

Артикул

Название

Примечание

Количество

1

86620027

FLANGED BEARING,80.02mm ID x 147.6mm OD x 4mm Thk

2шт.

2

84240146

BEARING,40mm ID x 80mm OD x 21mm W

1шт.

MAINTENANCE PART

1шт.

3

36403

BEARING HOUSING

2шт.

4

84251076

SHAFT

1шт.

FOR LB324S LB324P LB334S LB334P ONLY

1шт.

4

84316514

SHAFT

1шт.

FOR LB424S LB434S ONLY

1шт.

5

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

1шт.

6

84251075

SPROCKET

1шт.

7

84348545

SUPPORT

1шт.

8

322360

BALL BEARING,35mm ID x 72mm OD x 19mm W

1шт.

MAINTENANCE PART

1шт.

9

87681337

PLATE

1шт.

10

9850764

PANEL

1шт.

11

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

7шт.

12

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

3шт.

13

84429871

WASHER

6шт.

14

9801096

WASHER,13.5mm ID x 50.8mm OD x 4.76mm Thk

1шт.

15

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

1шт.

16

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

4шт.

17

9706685

NUT,M12 x 1.75, Cl 8

4шт.

18

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

7шт.

19

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

20

100016

NUT,M10 x 1.5, Cl 8

8шт.

21

170012

KEY,8mm W x 50mm OAL

1шт.

22

84299019

CHAIN,120 Links 19.05mm = 2286mm L

1шт.

MAINTENANCE PART

1шт.

Выбрано товаров: 28
