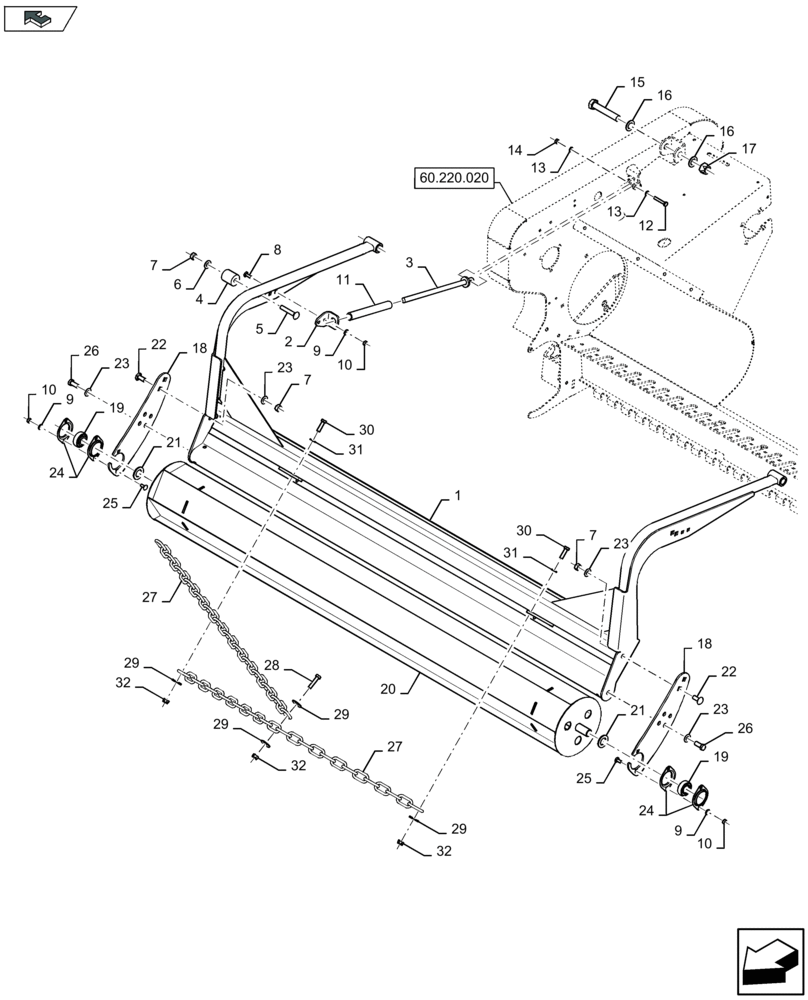

Запчасти Case IH LB324P (60.220.131) - WINDGUARD WITH ROLLER - D085 (60) - PRODUCT FEEDING

1

47508768

WINDGUARD

, Serial Range: -C136

1шт.

FOR LB324S, LB324P, LB334S, LB334P, LB324S XL, LB324P XL, LB334S XL, LB334P XL ONLY

1шт.

1

47816924

WINDGUARD

, Start Serial: D137

1шт.

FOR LB324S, LB324P, LB334S, LB334P, LB324S XL, LB324P XL, LB334S XL, LB334P XL ONLY

1шт.

1

47508749

WINDGUARD

, Serial Range: -C136

1шт.

FOR LB324R, LB334R, LB324R XL, LB334R XL ONLY

1шт.

1

47816920

WINDGUARD

, Start Serial: D137

1шт.

FOR LB324R, LB334R, LB324R XL, LB334R XL ONLY

1шт.

1

47508760

WINDGUARD

, Serial Range: -C136

1шт.

FOR LB424S, LB434S, LB424S XL, LB434S XL ONLY

1шт.

1

47816927

WINDGUARD

, Start Serial: D137

1шт.

FOR LB424S, LB434S, LB424S XL, LB434S XL ONLY

1шт.

1

47508746

WINDGUARD

, Serial Range: -C136

1шт.

FOR LB424R, LB434R, LB424R XL, LB434R XL ONLY

1шт.

1

47809650

WINDGUARD

, Start Serial: D137

1шт.

FOR LB424R, LB434R, LB424R XL, LB434R XL ONLY

1шт.

2

84217847

SUPPORT

2шт.

3

47494918

HEADED PIN

2шт.

4

395087

INSULATOR BLOCK

2шт.

5

338263

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 70mm, Cl 8.8

2шт.

6

378245

WASHER,13mm ID x 28.5mm OD x 2.7mm Thk

2шт.

7

9706685

NUT,M12 x 1.75, Cl 8

4шт.

8

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

4шт.

9

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

10

9706690

NUT,M8 x 1.25, Cl 8

8шт.

11

86633839

SPRING

2шт.

12

86625003

BOLT,Hex, M8 x 50mm, Cl 10.9

2шт.

13

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

14

9628098

NUT,M8 x 1.25, Cl 10

2шт.

15

86508350

BOLT,Hex, M20 x 110mm, Cl 10.9

2шт.

16

86511327

WASHER,21mm ID x 37mm OD x 3mm Thk

4шт.

17

86536985

NUT,M20 x 2.5, Cl 10

2шт.

18

84597292

SUPPORT

2шт.

19

325103

BALL BEARING,25mm ID x 52mm OD x 15mm W

2шт.

20

84801457

ROLLER

1шт.

FOR LB324S, LB324P, LB334S, LB334P, LB324S XL, LB324P XL, LB334S XL, LB334P XL ONLY

1шт.

FOR LB324R, LB334R, LB324R XL, LB334R XL ONLY

1шт.

20

87341398

ROLLER

1шт.

FOR LB424S, LB434S, LB424S XL, LB434S XL ONLY

1шт.

20

84801352

ROLLER

1шт.

FOR LB424R, LB434R, LB424R XL, LB434R XL ONLY

1шт.

21

140022

WASHER,26mm ID x 44mm OD x 4mm Thk

2шт.

22

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

23

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

24

86548974

FLANGE,Bearing

4шт.

25

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

26

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

27

47508698

CHAIN,1188mm L

2шт.

28

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

29

140042

WASHER,11mm ID x 34mm OD x 3mm Thk

4шт.

30

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

31

140017

WASHER,M10 x 20mm OD x 2mm Thk

2шт.

32

100037

LOCK NUT,M10 x 1.5, Cl 8

3шт.
