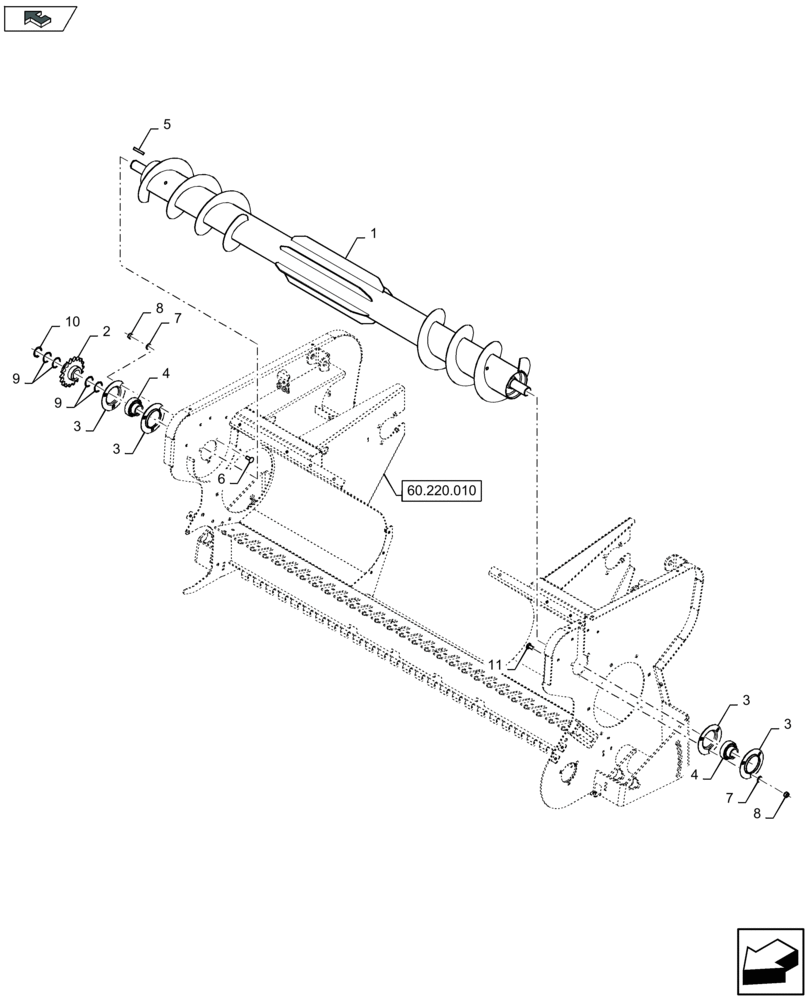

Запчасти Case IH LB324P (60.220.090) - FEED ROLLER - C084 (60) - PRODUCT FEEDING

1

84216309

FEED ROLLER

1шт.

FOR LB324S LB324P LB334S LB334P ONLY

1шт.

1

84361352

FEED ROLLER

, Serial Range: -C144

1шт.

FOR LB424S LB434S ONLY

1шт.

1

47943549

FEED ROLLER

, Start Serial: D145

1шт.

FOR LB424S LB434S ONLY

1шт.

1

47583494

FEED ROLLER

1шт.

FOR LB324S LB324P LB334S LB334P ONLY

1шт.

FOR EXTENDED AUGER ONLY

1шт.

2

84488422

SPROCKET

1шт.

3

36403

BEARING HOUSING

4шт.

4

9837842

BEARING,35mm ID x 72mm OD x 19mm W

2шт.

MAINTENANCE PART

1шт.

5

170012

KEY,8mm W x 50mm OAL

1шт.

6

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

3шт.

7

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

8

100016

NUT,M10 x 1.5, Cl 8

6шт.

9

84429871

WASHER

4шт.

10

370004

SNAP RING,M35 x 1.5mm Thk, External

1шт.

11

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

, Serial Range: -C035

3шт.
