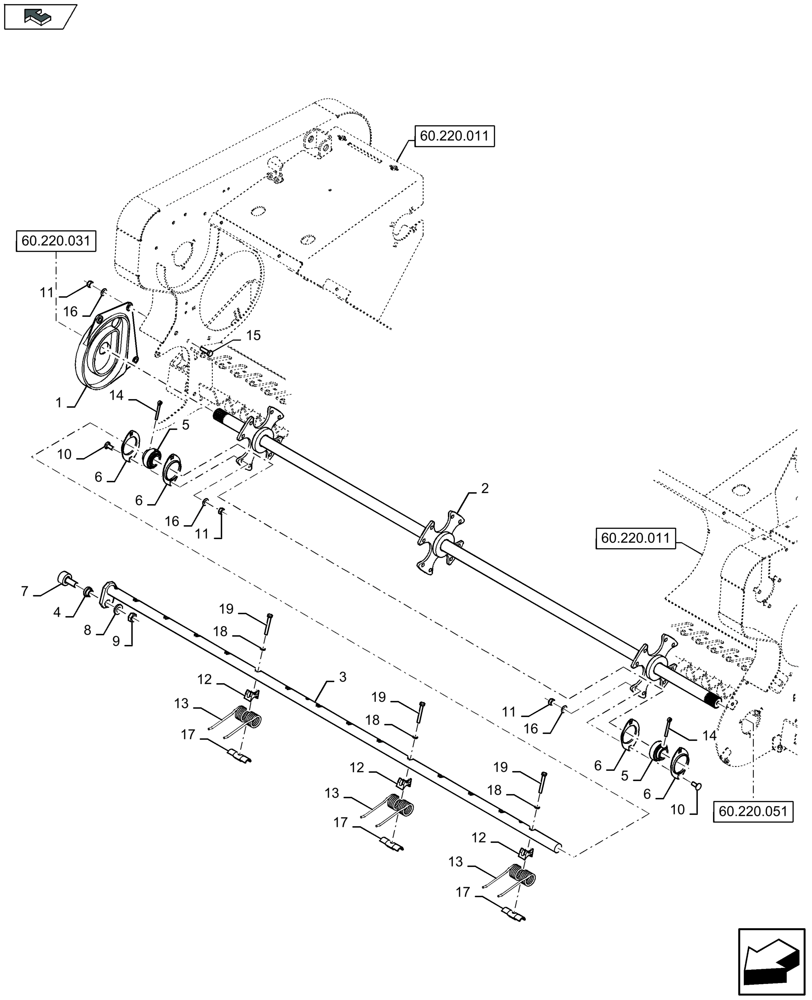

Запчасти Case IH LB324P (60.220.072) - PICK-UP, REEL - D137 (60) - PRODUCT FEEDING

1

84607784

CAM

1шт.

2

47802528

SHAFT

, Serial Range: -C143

1шт.

FOR LB324S, LB324P, LB334S, LB334P, LB324S XL, LB324P XL, LB334S XL, LB334P XL ONLY

1шт.

2

47902237

SHAFT

, Start Serial: D144

1шт.

FOR LB324S, LB324P, LB334S, LB334P, LB324S XL, LB324P XL, LB334S XL, LB334P XL ONLY

1шт.

2

47535600

SHAFT

, Serial Range: -C143

1шт.

FOR LB424S, LB434S, LB424S XL, LB434S XL ONLY

1шт.

2

47902239

SHAFT

, Start Serial: D144

1шт.

FOR LB424S, LB434S, LB424S XL, LB434S XL ONLY

1шт.

3

47817044

SHAFT

4шт.

FOR LB324S, LB324P, LB334S, LB334P, LB324S XL, LB324P XL, LB334S XL, LB334P XL ONLY

1шт.

3

47525194

SHAFT

4шт.

FOR LB424S, LB434S, LB424S XL, LB434S XL ONLY

1шт.

4

84058012

BUSHING,15.88mm ID x 30mm OD x 16mm L

4шт.

5

47523018

BALL BEARING

12шт.

FOR LB324S, LB324P, LB334S, LB334P, LB324S XL, LB324P XL, LB334S XL, LB334P XL ONLY

1шт.

MAINTENANCE PART

1шт.

5

47523018

BALL BEARING

16шт.

FOR LB424S, LB434S, LB424S XL, LB434S XL ONLY

1шт.

MAINTENANCE PART

1шт.

6

47521709

FLANGE

24шт.

FOR LB324S, LB324P, LB334S, LB334P, LB324S XL, LB324P XL, LB334S XL, LB334P XL ONLY

1шт.

MAINTENANCE PART

1шт.

6

47521709

FLANGE

32шт.

FOR LB424S, LB434S, LB424S XL, LB434S XL ONLY

1шт.

MAINTENANCE PART

1шт.

7

84056924

CAM FOLLOWER,Tine Shaft

4шт.

MAINTENANCE PART

1шт.

8

446691

WASHER,16mm ID x 32mm OD x 5mm Thk

4шт.

9

86511416

JAM NUT,Jam, 5/8"-18, G2

4шт.

10

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

1шт.

11

100016

NUT,M10 x 1.5, Cl 8

1шт.

12

84388371

SPACER

56шт.

FOR LB324S, LB324P, LB334S, LB334P, LB324S XL, LB324P XL, LB334S XL, LB334P XL ONLY

1шт.

MAINTENANCE PART

1шт.

12

84388371

SPACER

64шт.

FOR LB424S, LB434S, LB424S XL, LB434S XL ONLY

1шт.

MAINTENANCE PART

1шт.

13

84582461

TINE

5.5MM

56шт.

FOR LB324S, LB324P, LB334S, LB334P, LB324S XL, LB324P XL, LB334S XL, LB334P XL ONLY

1шт.

MAINTENANCE PART

1шт.

13

84582461

TINE

5.5MM

64шт.

FOR LB424S, LB434S, LB424S XL, LB434S XL ONLY

1шт.

MAINTENANCE PART

1шт.

14

300423

COTTER PIN,M6.3 x 50

1шт.

MAINTENANCE PART

1шт.

15

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

3шт.

16

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

17

84524588

GUARD

56шт.

FOR LB324S, LB324P, LB334S, LB334P, LB324S XL, LB324P XL, LB334S XL, LB334P XL ONLY

1шт.

MAINTENANCE PART

1шт.

17

84524588

GUARD

64шт.

FOR LB424S, LB434S, LB424S XL, LB434S XL ONLY

1шт.

MAINTENANCE PART

1шт.

18

80681

LOCK WASHER,5/16"

1шт.

MAINTENANCE PART

1шт.

19

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

1шт.

MAINTENANCE PART

1шт.
