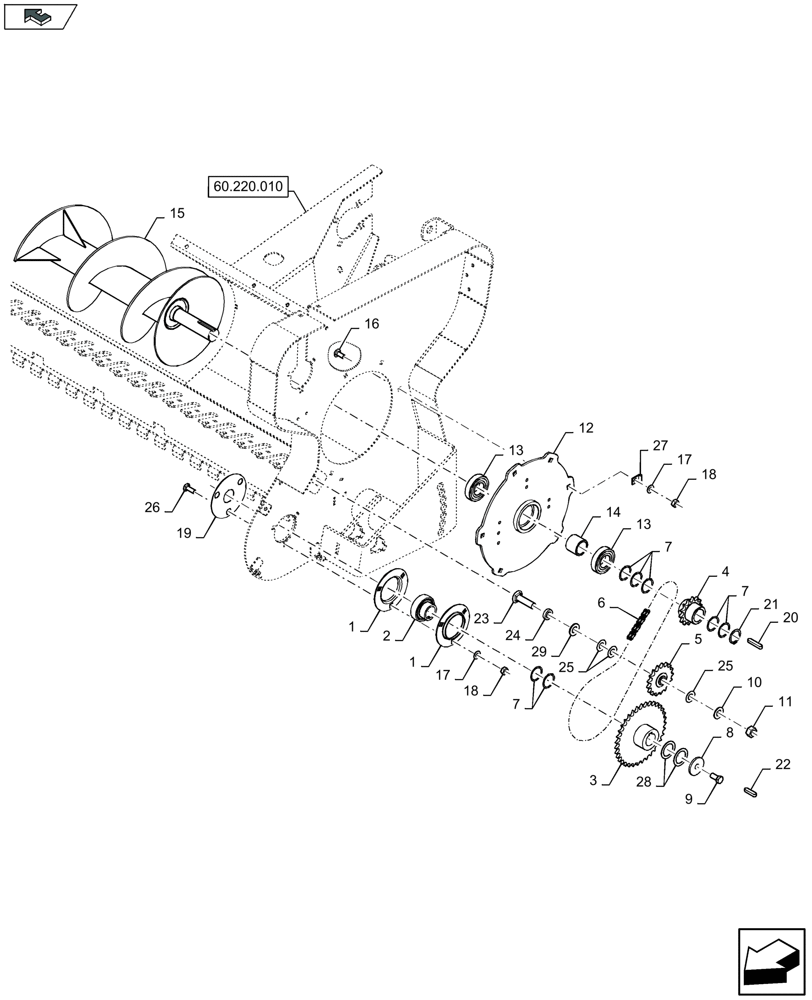

Запчасти Case IH LB324P (60.220.050) - PICK-UP, AUGER TRANSMISSION, LH - C084 (60) - PRODUCT FEEDING

1

36403

BEARING HOUSING

2шт.

2

9837842

BEARING,35mm ID x 72mm OD x 19mm W

1шт.

MAINTENANCE PART

1шт.

3

84251087

SPROCKET

1шт.

4

84363839

SPROCKET

1шт.

5

87517105

DRIVEN SPROCKET

1шт.

6

84260190

CHAIN

1шт.

MAINTENANCE PART

1шт.

7

84429871

WASHER

7шт.

8

9801096

WASHER,13.5mm ID x 50.8mm OD x 4.76mm Thk

1шт.

9

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

1шт.

10

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

1шт.

11

100020

NUT,M16 x 2.0, Cl 8

1шт.

12

84216315

CONE

1шт.

13

84438926

BALL BEARING,35mm ID x 72mm OD x 17mm W

2шт.

MAINTENANCE PART

1шт.

14

84216322

SLEEVE

1шт.

15

84216333

AUGER

1шт.

FOR LB324S LB324P LB334S LB334P ONLY

1шт.

15

84318130

AUGER

1шт.

FOR LB424S LB434S ONLY

1шт.

15

47580560

AUGER

1шт.

FOR LB324S LB324P LB334S LB334P ONLY

1шт.

FOR EXTENDED AUGER ONLY

1шт.

16

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

6шт.

17

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

9шт.

18

100016

NUT,M10 x 1.5, Cl 8

9шт.

19

9850763

RING

1шт.

20

170012

KEY,8mm W x 50mm OAL

1шт.

21

370004

SNAP RING,M35 x 1.5mm Thk, External

1шт.

22

354775

KEY,10mm x 8mm x 40mm

1шт.

23

120046

CARRIAGE BOLT,M16 x 60mm, Cl 8.8

1шт.

24

84274374

SLEEVE,17mm ID x 28mm OD x 7.5mm L

, Serial Range: -C035

1шт.

24

86592702

WASHER,17mm ID x 45mm OD x 6mm Thk

, Start Serial: D036

1шт.

25

87524773

SHIM,16.3mm ID x 32mm OD x 1mm Thk

3шт.

26

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

3шт.

27

675162

WIRE CLAMP,6.3mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

28

442293

WASHER,36mm ID x 50mm OD x 1.5mm Thk

2шт.

29

86639311

WASHER,17.5mm ID x 34mm OD x 3mm Thk

, Start Serial: D036

1шт.
