Запчасти Case IH LB324P (55.511.030) - ROAD LIGHTS - FOR NA ONLY - C136 (55) - ELECTRICAL SYSTEMS

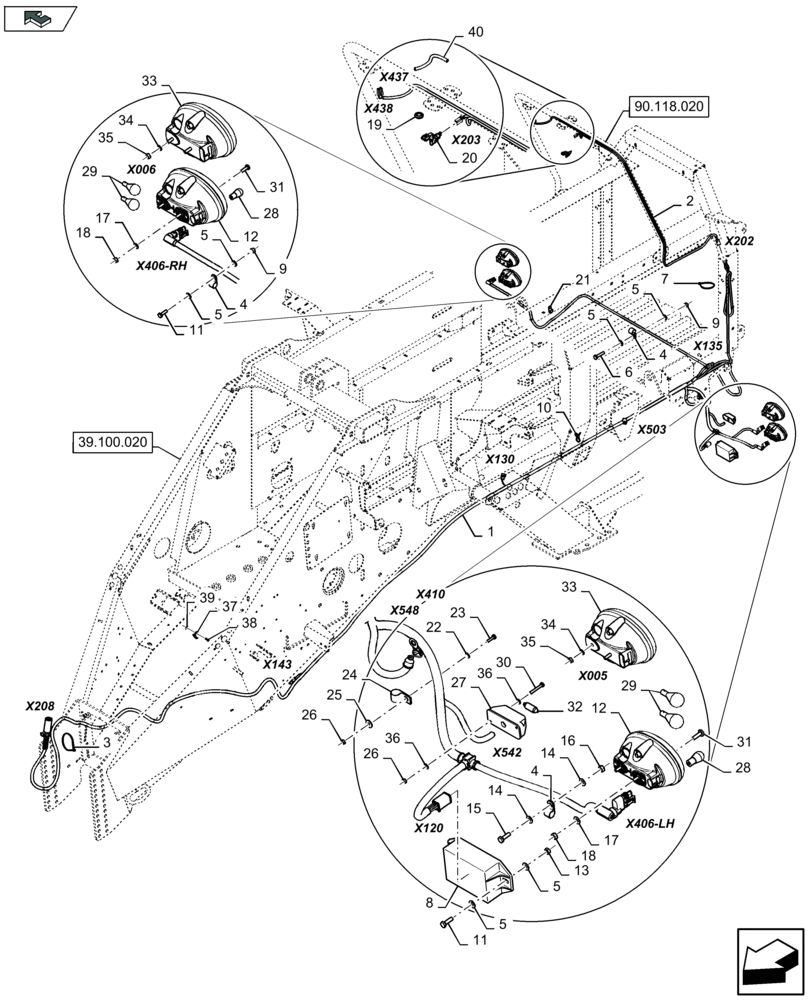

Схема запчастей Case IH LB324P - (55.511.030) - ROAD LIGHTS - FOR NA ONLY - C136 (55) - ELECTRICAL SYSTEMS
11
20
6
x135
40
90.118.020
17
10
17
3
x503
36
x143
39
x006
7
x203
33
26
27
9
16
5
12
22
9
x202
15
x410
29
x005
x542
34
x208
14
x437
34
35
24
x406-lh
18
18
37
19
4
36
5
5
33
11
35
12
x406-rh
39.100.020
2
30
x130
26
31
32
23
8
14
28
5
4
x438
1
5
x548
21
4
31
38
28
25
29
13
home
5
x120

Артикул

Название

Примечание

Количество

1

84273226

WIRE HARNESS

,, Serial Range: -C023

1шт.

1

47364236

WIRE HARNESS

,, Serial Range: -F024043

1шт.

1

47422087

WIRE HARNESS

,, Serial Range: -F044084

1шт.

1

47506158

WIRE HARNESS

, Start Serial: D085

1шт.

1

47644306

WIRE HARNESS

1шт.

2

84552076

WIRE HARNESS

,, Serial Range: -C023

1шт.

2

47379538

WIRE HARNESS

,, Serial Range: -F024043

1шт.

2

47415539

WIRE HARNESS

,, Start Serial: D044

1шт.

3

84449335

CABLE TIE,346mm L

3шт.

4

853765

CLAMP,7.9mm, Coat, 10.3mm Bolt Hole, P Type

,, Serial Range: -C023

8шт.

4

86625035

CLAMP,12.7mm, Coat, 7.1mm Bolt Hole, P Type

,, Start Serial: D024

8шт.

5

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

,, Serial Range: -C023

18шт.

5

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

,, Start Serial: D024

16шт.

6

120100

BOLT,M6 x 20mm, Cl 8.8

,, Serial Range: -C023

3шт.

6

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

,, Start Serial: D024

3шт.

7

86566990

CABLE TIE,292mm OAL x 4.8mm W

,

1шт.

8

86561136

MODULE

1шт.

9

9706755

NUT,M6, Cl 8

,, Serial Range: -C023

6шт.

9

9706755

NUT,M6, Cl 8

,, Start Serial: D024

5шт.

10

82013031

CABLE TIE,193mm L

1шт.

11

120100

BOLT,M6 x 20mm, Cl 8.8

,, Serial Range: -C023

5шт.

11

120100

BOLT,M6 x 20mm, Cl 8.8

,, Start Serial: D024

4шт.

12

84037090

TAIL LAMP,12V, 21W, Amber/Red

,, Serial Range: -C023

2шт.

12

84245244

LIGHT

,, Serial Range: -F024043

2шт.

12

84245246

LIGHT

,, Start Serial: D044

2шт.

13

412152

NUT,M6 x 1, Cl 8.8

2шт.

14

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

15

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

16

9706690

NUT,M8 x 1.25, Cl 8

1шт.

17

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

,, Serial Range: -C023

4шт.

17

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

,, Start Serial: D024

4шт.

18

9706755

NUT,M6, Cl 8

,, Serial Range: -C023

4шт.

18

86508813

NUT,M5, Cl 8

,, Serial Range: -F024084

4шт.

18

2977215

NUT,M5 x 0.8, Cl 8

, Start Serial: D085

4шт.

19

81844483

PLUG,.73" x 1"

2шт.

20

84191453

SOCKET,12/24V, 20A

, Serial Range: -C098

1шт.

21

853765

CLAMP,7.9mm, Coat, 10.3mm Bolt Hole, P Type

,, Serial Range: -C023

1шт.

21

134578

CLAMP,J, 7/16" x 1/2" hole

,, Start Serial: D024

1шт.

22

140013

WASHER,M4

,, Start Serial: D024

1шт.

23

412064

BOLT,Hex, M4 x 16mm, Cl 8.8, Full Thd

,, Start Serial: D024

1шт.

24

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

,, Start Serial: D024

1шт.

25

335872

WASHER,4.1mm ID x 15mm OD x 1.6mm Thk

,, Start Serial: D024

1шт.

26

100012

NUT,M4 x 0.7, Cl 8

,, Serial Range: -C023

2шт.

26

100012

NUT,M4 x 0.7, Cl 8

,, Start Serial: D024

1шт.

27

445502

REVERSING LAMP ASSY,12V, 5W

,, Serial Range: -C023

1шт.

28

418870

BULB,12V, 10W

,, Serial Range: -C023

2шт.

29

398877

BULB,12V, 21W

,, Serial Range: -C023

4шт.

30

385682

BOLT,Hex, M4 x 30mm, Cl 8.8

,, Serial Range: -C023

2шт.

31

86511830

SCREW,Phillips Drive, Pan HD, M6 x 20mm, Cl 4.8

,, Serial Range: -C023

4шт.

32

470017

BULB,C11, 12V, 5W

,, Serial Range: -C023

1шт.

33

87356311

LAMP,Halogen, 12V, 21W, Amber

,, Start Serial: D044

2шт.

34

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

,, Start Serial: D044

4шт.

35

86508813

NUT,M5, Cl 8

,, Serial Range: -F044084

4шт.

35

2977215

NUT,M5 x 0.8, Cl 8

, Start Serial: D085

4шт.

36

140013

WASHER,M4

,, Serial Range: -C023

4шт.

37

87029955

CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, P Type

, Serial Range: -F085098

6шт.

37

84818443

CLAMP,16.3mm ID, 6.7mm Bolt Hole, P Type

, Start Serial: D099

6шт.

38

9512290

RIVET,Pop, 4.8mm OD x 17.8mm L

, Serial Range: -F085098

6шт.

39

140182

WASHER,5.5mm ID x 18mm OD x 2mm Thk

, Serial Range: -F085098

6шт.

38

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

, Start Serial: D099

6шт.

39

87013357

WASHER,5.5mm ID x 15mm OD x 1.6mm Thk

, Start Serial: D099

6шт.

40

47427651

CONDUIT

L=10CM, Start Serial: D099

2шт.
