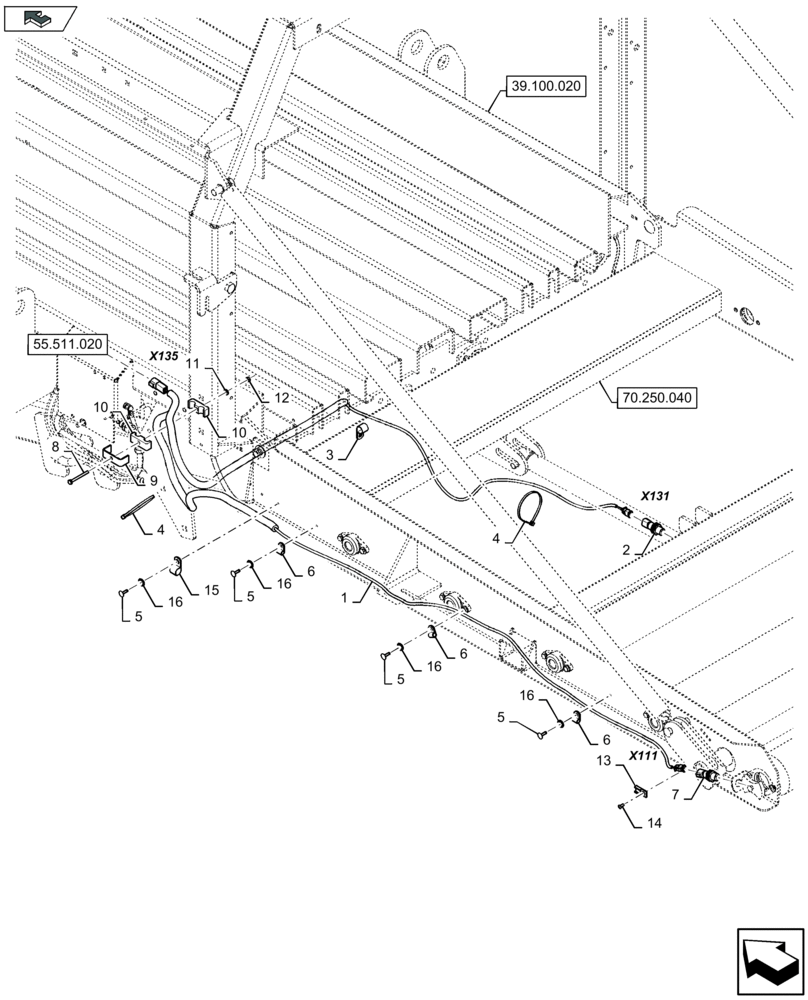

Запчасти Case IH LB324P (55.422.020) - ROLLER SINGLE BALE CHUTE, ELECTRICITY (55) - ELECTRICAL SYSTEMS

1

84344743

WIRE HARNESS

, Serial Range: -C084

1шт.

1

47447340

WIRE HARNESS

, Start Serial: D085

1шт.

2

84391774

SENSOR

B018 - Sensor Bale Chute

1шт.

3

87010656

CLAMP,17.5mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

4

86566990

CABLE TIE,292mm OAL x 4.8mm W

11шт.

5

9512290

RIVET,Pop, 4.8mm OD x 17.8mm L

, Serial Range: -C084

7шт.

5

84007558

RIVET,Pop, 4.8mm OD x 19mm L

, Start Serial: D085

9шт.

6

9507807

CLAMP,8.3mm ID, 6.7mm Bolt Hole, P Type

7шт.

7

87342073

SENSOR

B011 - Sensor Bale Drop, Serial Range: -C084

1шт.

7

84391774

SENSOR

B011 - Sensor Bale Drop, Start Serial: D085

1шт.

8

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

1шт.

9

84814948

SUPPORT

1шт.

10

430356

CLAMP

2шт.

11

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

12

412152

NUT,M6 x 1, Cl 8.8

1шт.

13

84058832

CLIP

, Serial Range: -C084

1шт.

14

445394

RIVET,Pop, 3/16" x 1/2" OAL

, Serial Range: -C084

1шт.

15

87010656

CLAMP,17.5mm, Coat, 10.3mm Bolt Hole, P Type

, Serial Range: -C084

2шт.

15

84818443

CLAMP,16.3mm ID, 6.7mm Bolt Hole, P Type

, Start Serial: D085

2шт.

16

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

, Start Serial: D085

9шт.
