Запчасти Case IH LB324P (55.418.040) - ELECTRICITY BALE CONTROL, CABLE KNOTTER - C136 (55) - ELECTRICAL SYSTEMS

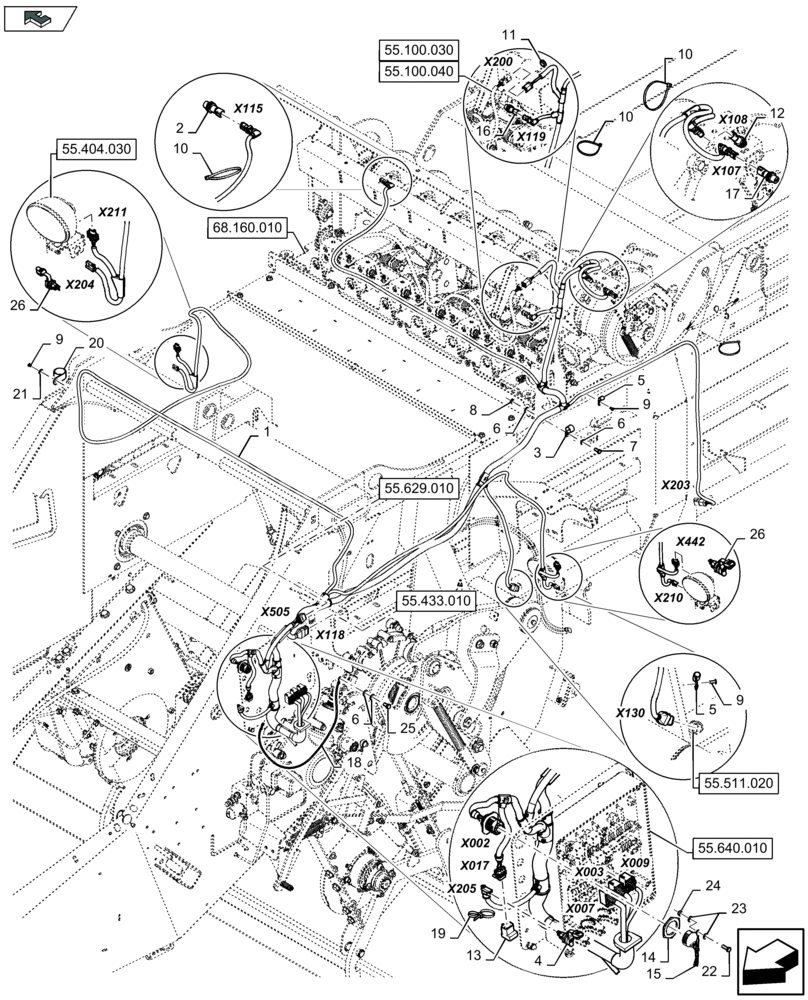

Схема запчастей Case IH LB324P - (55.418.040) - ELECTRICITY BALE CONTROL, CABLE KNOTTER - C136 (55) - ELECTRICAL SYSTEMS
5
1
3
x003
x007
7
x205
x002
x203
6
x204
21
9
x210
19
14
12
x505
55.629.010
55.100.030
x200
10
6
x118
x108
55.433.010
10
23
24
55.404.030
13
11
4
20
home
55.100.040
x009
26
5
55.640.010
26
x017
10
22
68.160.010
2
x119
x211
x130
55.511.020
9
8
x107
15
17
16
6
x442
18
25
9
x115

Артикул

Название

Примечание

Количество

1

84391414

WIRE HARNESS

,, Serial Range: -C035

1шт.

1

47417237

WIRE HARNESS

,, Serial Range: -F036084

1шт.

1

47504970

WIRE HARNESS

, Start Serial: D085

1шт.

2

84391774

SENSOR

B012 - Sensor Bale Count

1шт.

3

87029955

CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

4

84191453

SOCKET,12/24V, 20A

1шт.

5

858956

CLAMP,11.1mm, Coat, 8.7mm Bolt Hole, P Type

3шт.

6

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

7

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

8

9706690

NUT,M8 x 1.25, Cl 8

1шт.

9

445394

RIVET,Pop, 3/16" x 1/2" OAL

1шт.

10

86566990

CABLE TIE,292mm OAL x 4.8mm W

1шт.

11

84278790

GROMMET

, Serial Range: -C084

1шт.

11

82016008

GROMMET

, Start Serial: D085

1шт.

12

84391778

SENSOR

B007 - Sensor Knotter Gearbox

1шт.

13

87601142

ELEC CONNECTOR,Female, 6 Cavities

1шт.

14

87737472

JAM NUT,Hex, M35 x 1

1шт.

15

87737474

LID

, Serial Range: -C071

1шт.

15

47448624

COVER ASSY

, Start Serial: D072

1шт.

16

84391774

SENSOR

B024 - Sensor Single Mistie, Serial Range: -C084

1шт.

16

87342073

SENSOR

B024 - Sensor Single Mistie, Start Serial: D085

1шт.

17

84391774

SENSOR

B014 - Sensor Knotter Shield

1шт.

18

47364154

WIRE HARNESS

1шт.

19

82013031

CABLE TIE,193mm L

2шт.

20

9837593

CLAMP

4шт.

21

140182

WASHER,5.5mm ID x 18mm OD x 2mm Thk

3шт.

22

120100

BOLT,M6 x 20mm, Cl 8.8

, Start Serial: D072

1шт.

23

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

, Start Serial: D072

2шт.

24

9706755

NUT,M6, Cl 8

, Start Serial: D072

1шт.

25

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

, Start Serial: D072

1шт.

26

84191453

SOCKET,12/24V, 20A

, Start Serial: D088

2шт.

Выбрано товаров: 31
