Запчасти Case IH LB324P (39.110.070) - HITCH STEP (39) - FRAMES AND BALLASTING

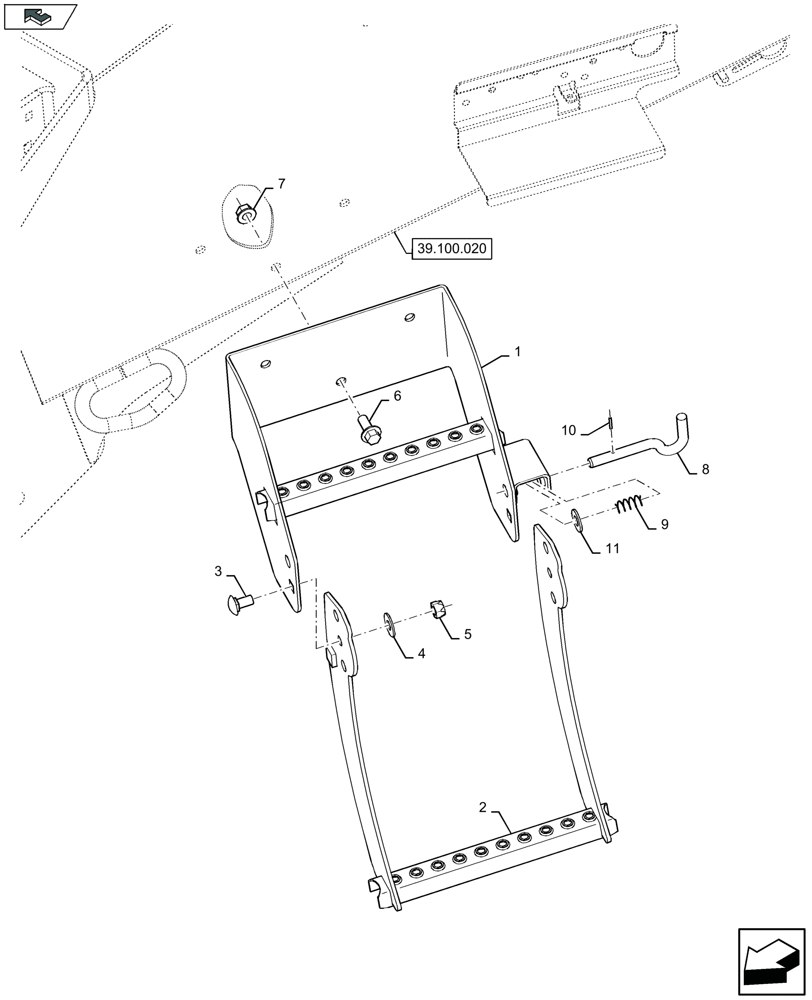

Схема запчастей Case IH LB324P - (39.110.070) - HITCH STEP (39) - FRAMES AND BALLASTING
1
11
5
8
39.100.020
3
9
6
2
4
10
7
home

Артикул

Название

Примечание

Количество

1

84555509

STEP

1шт.

FOR LB324S, LB324P, LB324R, LB334S, LB334P, LB334R, LB424S, LB424R, LB434S, LB434R ONLY

1шт.

1

48026653

STEP

1шт.

FOR LB324S XL, LB324P XL, LB324R XL, LB334S XL, LB334P XL, LB334R XL, LB424S XL, LB424R XL, LB434S XL, LB434R XL ONLY

1шт.

2

84555510

STEP

, Serial Range: -C084

1шт.

FOR LB324S, LB324P, LB324R, LB334S, LB334P, LB334R, LB424S, LB424R, LB434S, LB434R ONLY

1шт.

2

47412381

STEP

, Start Serial: D085

1шт.

FOR LB324S, LB324P, LB324R, LB334S, LB334P, LB334R, LB424S, LB424R, LB434S, LB434R ONLY

1шт.

2

48026645

STEP

1шт.

FOR LB324S XL, LB324P XL, LB324R XL, LB334S XL, LB334P XL, LB334R XL, LB424S XL, LB424R XL, LB434S XL, LB434R XL ONLY

1шт.

3

374895

CARRIAGE BOLT,M12 x 1.75 x 25mm, Cl 8.8

, Serial Range: -C084

2шт.

3

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

, Start Serial: D085

2шт.

4

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

, Serial Range: -C084

2шт.

4

140175

WASHER,13.2mm ID x 25mm OD x 1mm Thk

, Start Serial: D085

4шт.

5

100038

NUT,M12 x 1.75, Cl 8

, Serial Range: -C084

2шт.

5

412126

NUT,M12 x 1.75

, Start Serial: D085

2шт.

6

9670066

FLANGE BOLT,Hex, M12 x 30mm, Cl 8.8

3шт.

7

9804279

FLANGE NUT,Hex, M12, Cl 8

3шт.

8

84335923

PIN,12.75mm OD

1шт.

9

596127

SPRING,38.1mm Free Length

1шт.

10

300865

LOCK PIN,M3 x 20mm OAL, Slotted

1шт.

11

87528989

WASHER,12.2mm ID x 30mm OD x 2.5mm Thk

, Serial Range: -C084

1шт.

11

87016607

WASHER,13.5mm ID x 37mm OD x 3mm Thk

, Start Serial: D085

1шт.

Выбрано товаров: 23
