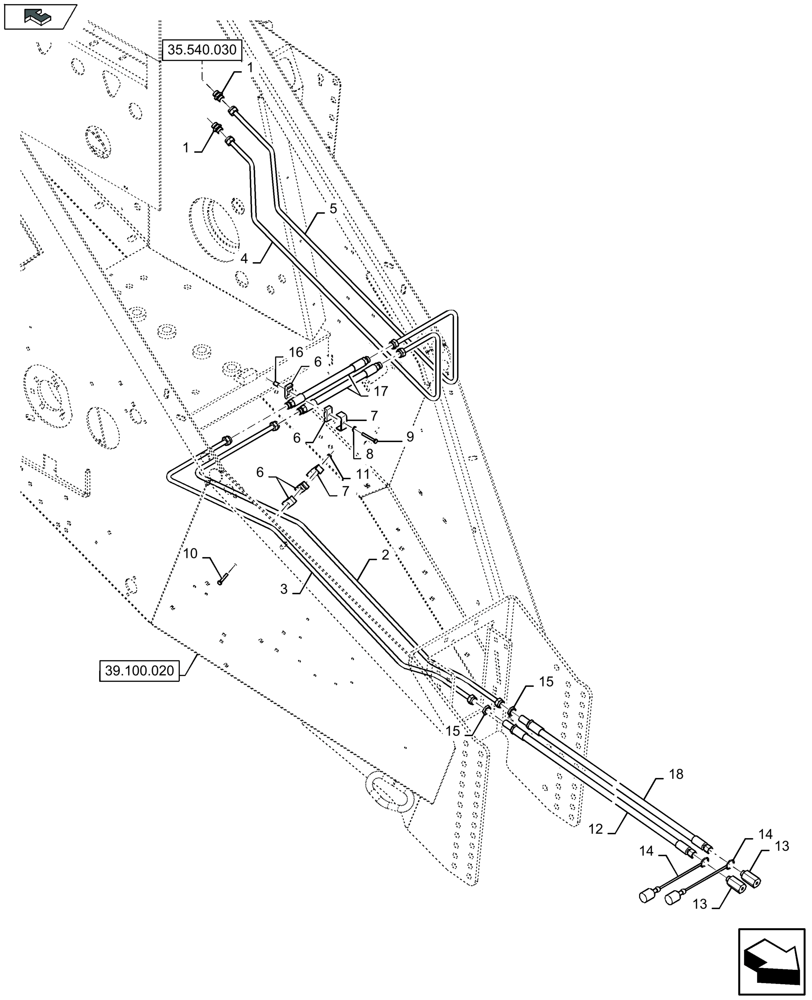

Запчасти Case IH LB324P (35.580.010) - BALE EJECTOR, HYDRAULIC , FRONT (35) - HYDRAULIC SYSTEMS

1

150018

HYD CONNECTOR,M18 x 1.5 x 28

2шт.

2

47377993

TUBE

1шт.

FOR LB324S, LB324P, LB324R, LB334S, LB334P, LB334R ONLY

1шт.

2

84412311

TUBE

1шт.

FOR LB424S, LB424R, LB434S, LB434R ONLY

1шт.

3

47377991

TUBE

1шт.

FOR LB324S, LB324P, LB324R, LB334S, LB334P, LB334R ONLY

1шт.

3

84412309

TUBE

1шт.

FOR LB424S, LB424R, LB434S, LB434R ONLY

1шт.

4

47377997

TUBE

1шт.

FOR LB324S, LB324P, LB324R, LB334S, LB334P, LB334R ONLY

1шт.

4

84412315

TUBE

1шт.

FOR LB424S, LB424R, LB434S, LB434R ONLY

1шт.

5

47377995

TUBE

1шт.

FOR LB324S, LB324P, LB324R, LB334S, LB334P, LB334R ONLY

1шт.

5

84412313

TUBE

1шт.

FOR LB424S, LB424R, LB434S, LB434R ONLY

1шт.

6

430357

CLAMP

6шт.

7

431941

SUPPORT

3шт.

8

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

9

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

10

43118

BOLT,Hex, M6 x 1.0 x 40mm, Cl 8.8

1шт.

11

412152

NUT,M6 x 1, Cl 8.8

1шт.

12

84281108

HYDRAULIC HOSE,9.53mm ID x 2500mm L, SAE 100R16

1шт.

FOR LB324S, LB324P, LB324R, LB334S, LB334P, LB334R ONLY

1шт.

FOR LB424S, LB424R, LB434S, LB434R ONLY

1шт.

12

48021938

HYDRAULIC HOSE

BLACK

1шт.

FOR LB424S XL, LB424R XL, LB434S XL, LB434R XL ONLY

1шт.

13

84819661

QUICK MALE COUPLING

2шт.

14

84819669

DUST CAP

2шт.

15

87494091

NUT

1шт.

16

87716662

NUT

2шт.

17

47375516

HOSE,9.5mm ID x 311mm L, SAE 100R16

2шт.

FOR LB324S, LB324P, LB324R, LB334S, LB334P, LB334R ONLY

1шт.

17

47375517

HOSE,9.5mm ID x 595mm L, SAE 100R16

2шт.

FOR LB424S, LB424R, LB434S, LB434R ONLY

1шт.

18

84281108

HYDRAULIC HOSE,9.53mm ID x 2500mm L, SAE 100R16

1шт.

FOR LB324S, LB324P, LB324R, LB334S, LB334P, LB334R ONLY

1шт.

FOR LB424S, LB424R, LB434S, LB434R ONLY

1шт.

18

48021937

HYDRAULIC HOSE

WHITE

1шт.

FOR LB424S XL, LB424R XL, LB434S XL, LB434R XL ONLY

1шт.
