Запчасти Case IH LB324P (35.570.010) - ROLLER BALE CHUTE, CYLINDER (35) - HYDRAULIC SYSTEMS

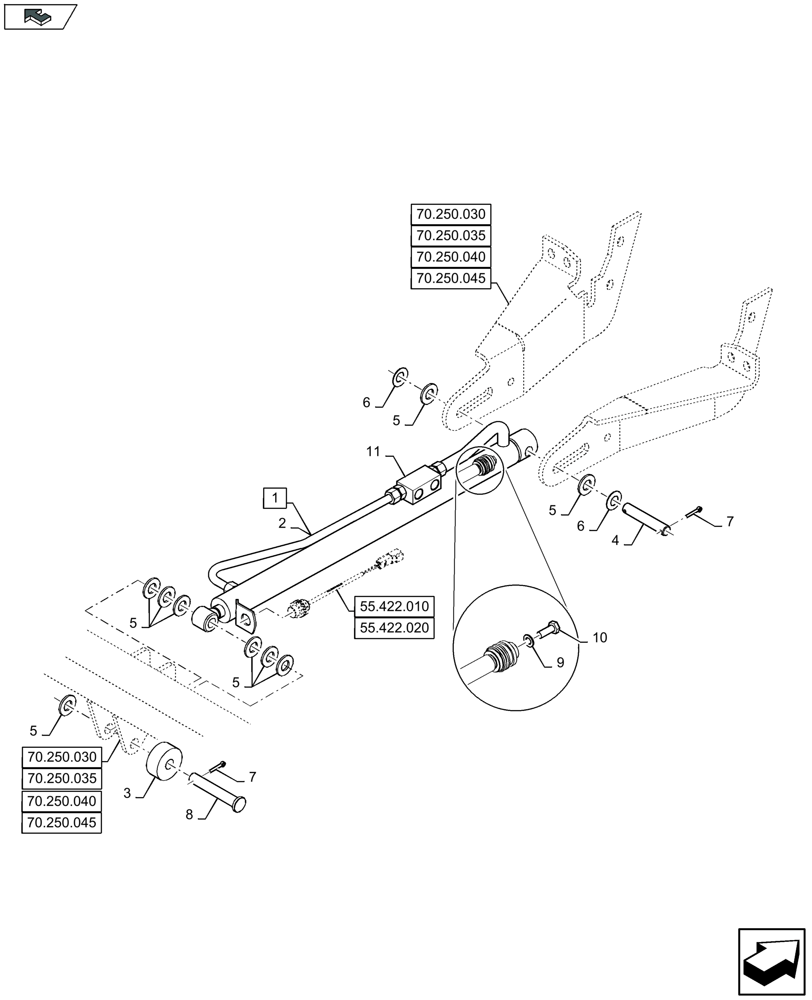

Схема запчастей Case IH LB324P - (35.570.010) - ROLLER BALE CHUTE, CYLINDER (35) - HYDRAULIC SYSTEMS
55.422.010
9
10
4
6
5
5
7
6
home
7
5
8
5
5
3
70.250.045
1
70.250.035
70.250.035
70.250.045
11
2
70.250.040
70.250.040
55.422.020
70.250.030
70.250.030

Артикул

Название

Примечание

Количество

1

84272153

HYDRAULIC CYLINDER,Double Acting, 20mm Rod, 550mm Stroke

Incl 2, 9-11, Serial Range: -C146

1шт.

1

84300618

HYDRAULIC CYLINDER

Incl 2, Start Serial: D147

1шт.

1

84272153R

REMAN-HYD CYLINDER

1шт.

1

84272153C

CORE-HYD CYLINDER

Return Number

1шт.

2

84299533

SEAL KIT

, Serial Range: -C146

1шт.

2

47722310

SEAL

, Start Serial: D147

1шт.

3

84400935

ROLLER

, Serial Range: -C146

1шт.

3

47931704

ROLLER

, Start Serial: D147

1шт.

4

356015

SPINDLE

, Serial Range: -C146

1шт.

4

412109

PIN

, Start Serial: D147

1шт.

5

378246

WASHER,17mm ID x 34mm OD x 3mm Thk

1шт.

6

84814924

WASHER,16.3mm ID x 31.5mm OD x 1.25mm Thk

2шт.

7

130007

COTTER PIN,M4 x 25

3шт.

8

84078725

CLEVIS PIN,16mm OD x 100mm L

, Serial Range: -C146

1шт.

8

47931819

PIN

, Start Serial: D147

1шт.

9

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

, Serial Range: -C146

1шт.

10

43235

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

, Serial Range: -C146

1шт.

11

84292649

CHECK VALVE

, Serial Range: -C146

1шт.

Выбрано товаров: 18
