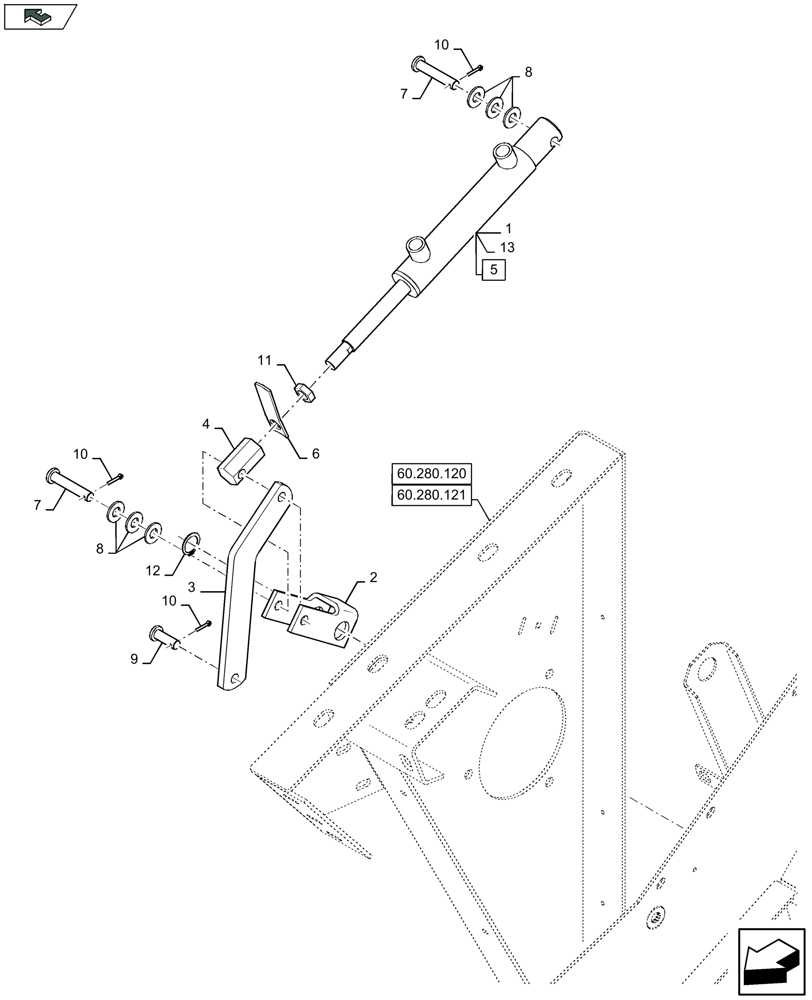

Запчасти Case IH LB324P (35.565.020) - KNIFE DRAWER, HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

84023899

SEAL KIT

1шт.

2

84039383

SUPPORT

1шт.

3

84039381

BRACKET

1шт.

4

84039382

UNIVERSAL JOINT

1шт.

5

84807314

HYDRAULIC CYLINDER,Double Acting, 18mm Rod, 140mm Stroke

Incl 1, 13

1шт.

6

84078953

COVER PLATE

1шт.

7

412118

CLEVIS PIN,12mm OD x 65mm L

2шт.

8

378245

WASHER,13mm ID x 28.5mm OD x 2.7mm Thk

6шт.

9

355518

PIN,M12 x 35

1шт.

10

130003

COTTER PIN,3mm OD x 30mm OAL

3шт.

11

364164

THIN NUT,Thin, M16 x 1.5, Cl 04

1шт.

12

370002

CIRCLIP,M25, External

1шт.

13

427034

SEAL KIT

1шт.
