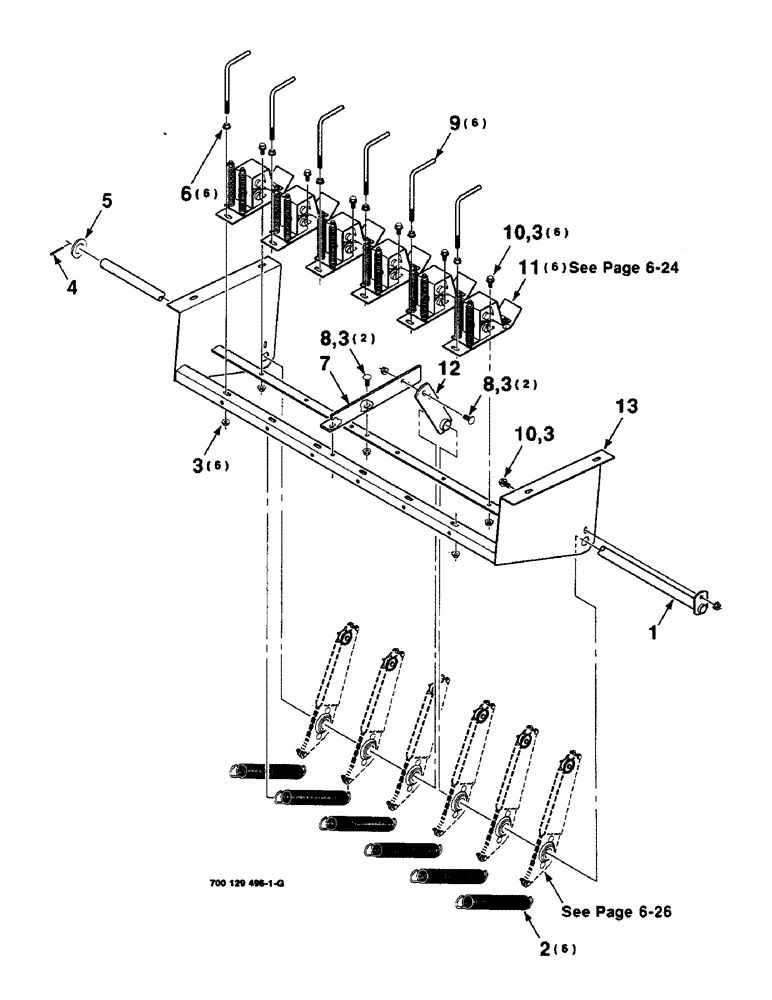

Запчасти Case IH 8590 (6-22) - TENSIONER ASSEMBLY, LOWER (14) - BALE CHAMBER

1

700137469

ROD

WA

1шт.

2

700714986

SPRING

- extension

6шт.

3

329-286

FLANGE NUT,Flg, 3/8"-16, G8

17шт.

4

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

1шт.

5

495-21106

WASHER,1"

1 HARDENED PLAIN WASHER

1шт.

6

231-5146

FLANGE NUT,3/8"-16

6шт.

7

6848832

ANGLE

1шт.

8

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

4шт.

9

702400048

ROD

6шт.

10

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HFSS

7шт.

11

6845077

TENSIONER

ASSEMBLY

6шт.

12

700113093

STRAP

WA

1шт.

13

700129495

SUPPORT

WA

1шт.
