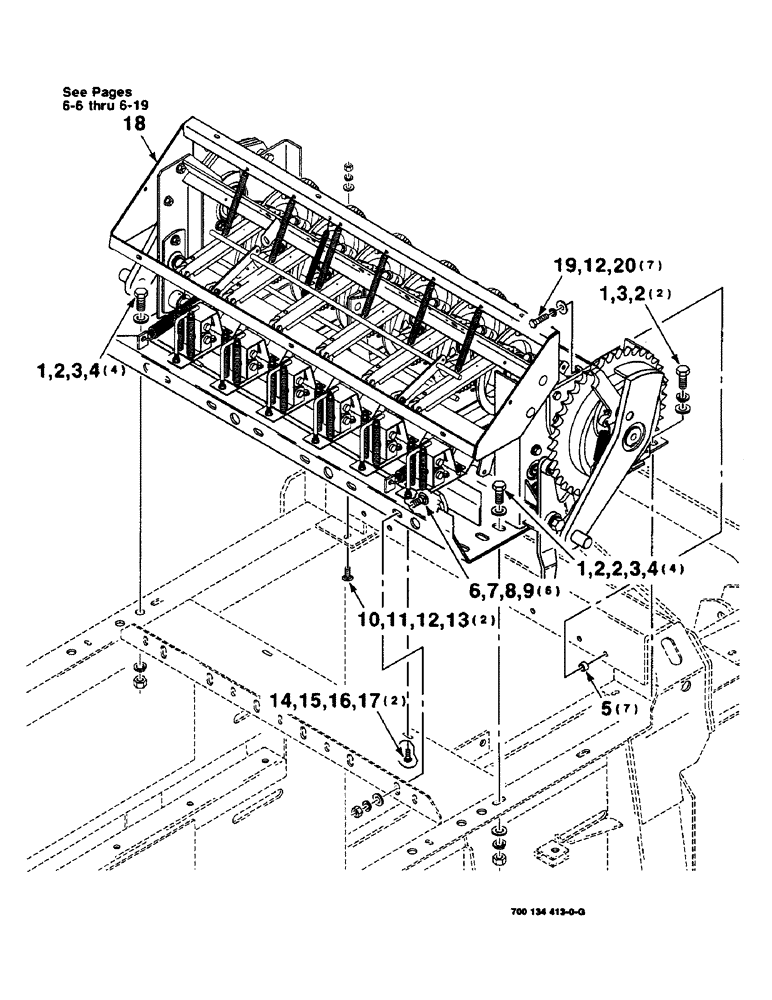

Запчасти Case IH 8590 (6-04) - KNOTTER MOUNTING ASSEMBLY (14) - BALE CHAMBER

1

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

3/4-10 x 1-3/4 C

10шт.

2

705566

WASHER

3/4 HARDENED PLAIN WASHER

14шт.

3

492-11075

LOCK WASHER,3/4"

3/4"

10шт.

4

425-1012

NUT,3/4"-10, G5

3/4-10 H

8шт.

5

6591614

SPACER,14.27mm ID x 23.01mm OD x 13mm L

7шт.

6

433-1024

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 1/2", Gr 5

5/8-11 X 1-1/2 RHSNB

6шт.

7

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

6шт.

8

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

9

425-1010

NUT,5/8"-11, G5

6шт.

10

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

2шт.

11

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

2шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

9шт.

13

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

14

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

2шт.

15

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

16

492-11038

LOCK WASHER,3/8"

2шт.

17

425-106

NUT,3/8"-16, Cl 5

2шт.

18

700134406

KNOTTER

ASSEMBLY

1шт.

19

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

7шт.

20

495-21056

WASHER,1/2"

1/2 WIDE PLAIN WASHER

7шт.
