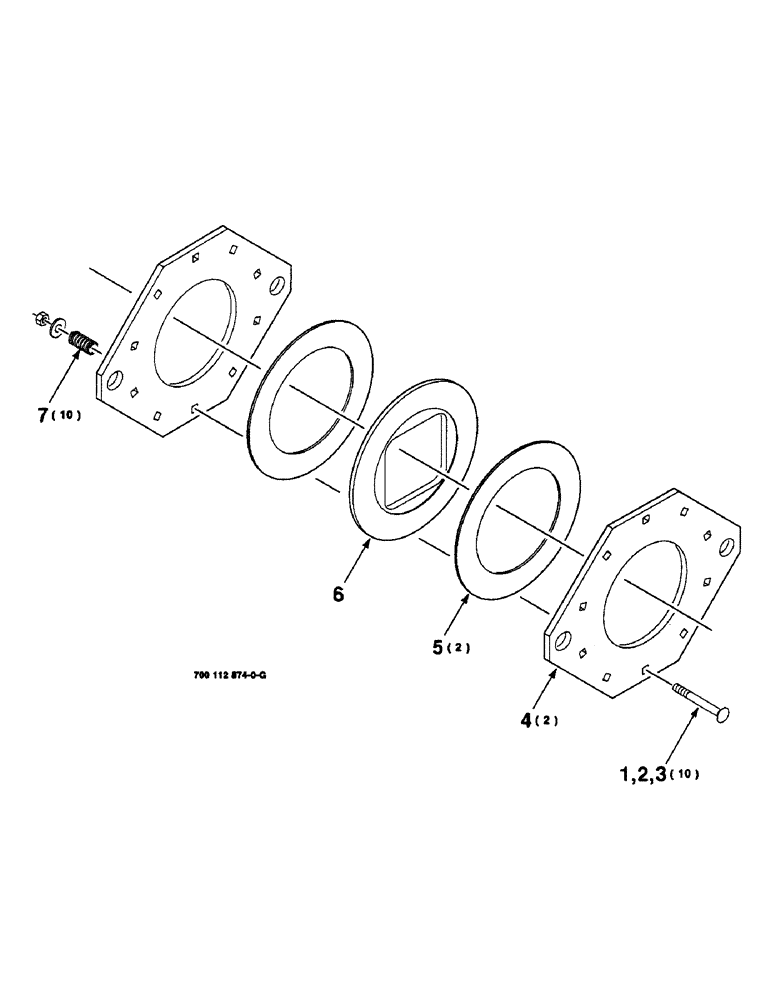

Запчасти Case IH 8590 (5-12) - BRAKE ASSEMBLY (13) - FEEDER

1

433-656

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3 1/2", Gr 5

3/8-16 X 3-1/2 RHSNB

10шт.

2

495-21044

WASHER,3/8"

10шт.

3

231-1406

LOCK NUT,3/8"-16, GB

3/8-16 LHSN

10шт.

4

6818561

PLATE

- press

2шт.

5

700710946

CLUTCH PLATE

DISC - clutch

2шт.

6

700112875

BRAKE DISC,112mm ID x 228mm OD x 10.3mm Thk

DISC - brake

1шт.

7

758011

SPRING

- compression

10шт.
