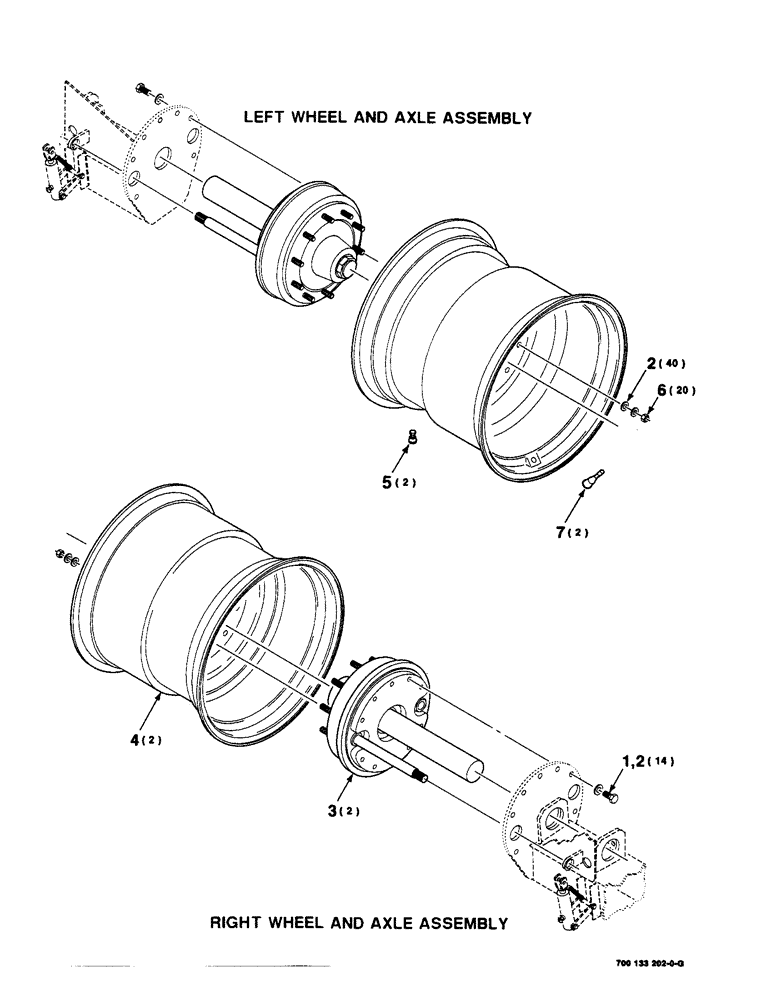

Запчасти Case IH 8590 (7-36) - WHEEL, HUB AND AXLE ASSEMBLIES (12) - MAIN FRAME

1

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

3/4-10 X 1-1/2 C

14шт.

2

705566

WASHER

3/4 HARDENED PLAIN WASHER

54шт.

3

700133745

FRONT AXLE

AXLE WA - brake

2шт.

4

700708051

RIM

WHEEL WA - DWH 25 x 26

2шт.

5

417194C1

PLUG

2шт.

6

700715684

NUT

M18 X 1.5 NUT - hex, class 8

20шт.

7

7027469

VALVE

STEM - valve

2шт.
