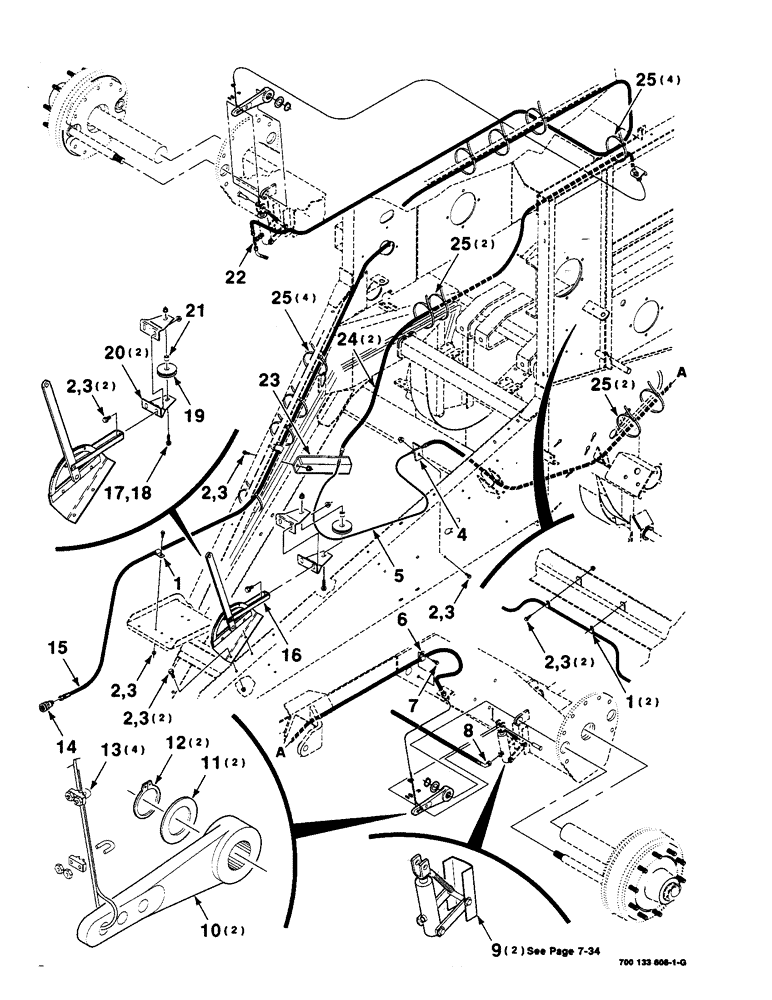

Запчасти Case IH 8590 (7-32) - BRAKE CONTROL ASSEMBLY (12) - MAIN FRAME

1

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

Line 3/4", Insul, 3/8" Bolt

3шт.

2

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

9шт.

3

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

9шт.

4

700133076

SUPPORT

- cable

1шт.

5

700714993

CABLE

WIRE ROPE - handbrake

1шт.

6

700708090

CLAMP

- line

1шт.

7

172463

SELF-TAP SCREW,Hex Hd, 5/16" x 1"

5/16-18 X 3/4 HWHTCTS

1шт.

8

700715228

FLEXIBLE HOSE

HOSE ASSEMBLY

1шт.

9

700716972

ACTUATOR

RAM ASSEMBLY - brake

2шт.

10

700715230

LEVER

- brake cam

2шт.

11

700715959

WASHER

- special

2шт.

12

700715958

LOCKING RING

RING - retaining, external

2шт.

13

700714994

CLAMP

- handbrake cable

4шт.

14

700714996

COUPLING

- trailer

1шт.

15

700715004

HOSE

ASSEMBLY

1шт.

16

700716814

LEVER

ASSEMBLY - handbrake

1шт.

17

163-41

SCREW,Sl Hex Wshr Hd, 5/16" - 18 x 1 1/4"

5/16-18 X 1-1/4 HWHMS

1шт.

18

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

1шт.

19

700120328

PULLEY

1шт.

20

700133077

SUPPORT

- pulley

2шт.

21

700119414

SPACER

BUSHING - spacer

1шт.

22

700715006

3 WAY CONNECTION

TEE - straight, BSP

1шт.

23

700133073

SUPPORT

- angle

1шт.

24

700715204

FLEXIBLE SHEATH

COVER - handbrake cable

2шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

12шт.
