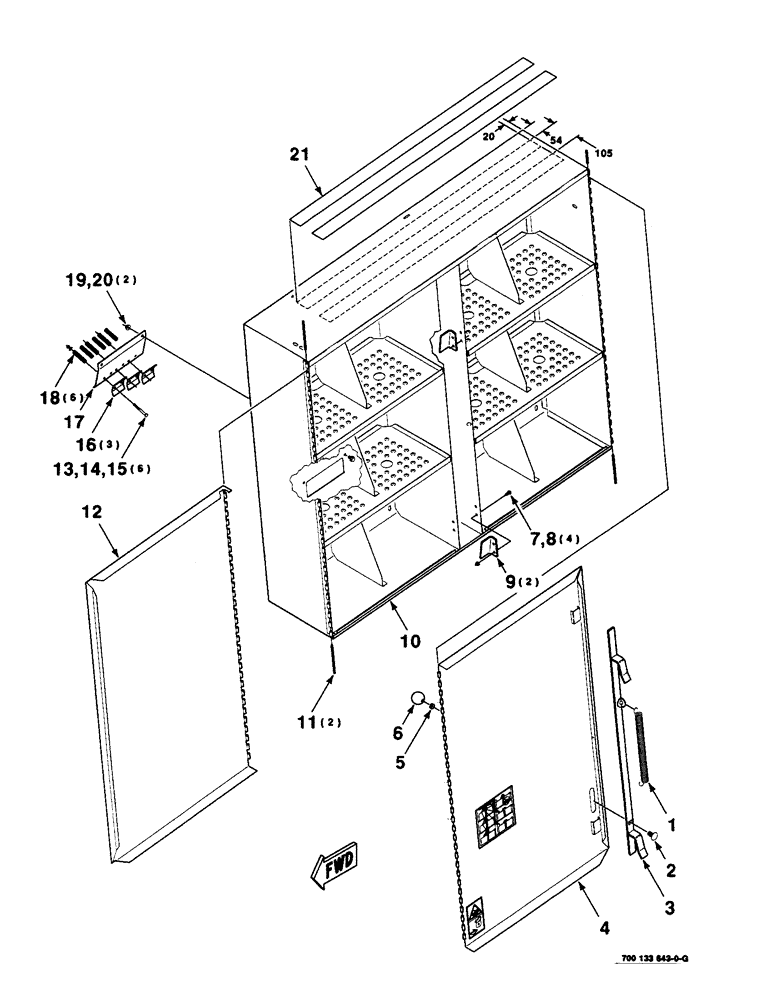

Запчасти Case IH 8590 (7-20) - TWINE BOX ASSEMBLY, LEFT (12) - MAIN FRAME

1

58941

SPRING

1шт.

2

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 X 1 RHSNB

1шт.

3

6844633

SECURING STRAP,74mm L

WA

1шт.

4

700133654

DOOR

ASSEMBLY - twine box, rear (Includes decals)

1шт.

5

6270854

SPACER

1шт.

6

A23885

KNOB

1шт.

7

412-48

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1/2", Gr 2

1/4-20 X 1/2 RHSNB

4шт.

8

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

9

6844674

CATCH

2шт.

10

700133650

TWINE BOX

ASSEMBLY (Includes safety tread)

1шт.

11

700122881

PIN

- hinge

2шт.

12

6844625

BOLT

DOOR ASSEMBLY - twine box, front

1шт.

13

26144R1

BOLT

1/4-20 X 2-1/4 RHSNB

6шт.

14

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

6шт.

15

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

6шт.

16

6488431

CLIP

3шт.

17

702400047

PLATE

1шт.

18

700707677

SPRING

- compression

6шт.

19

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

2шт.

21

6849178

WALL

TREAD - safety (10 foot bulk)

1шт.
