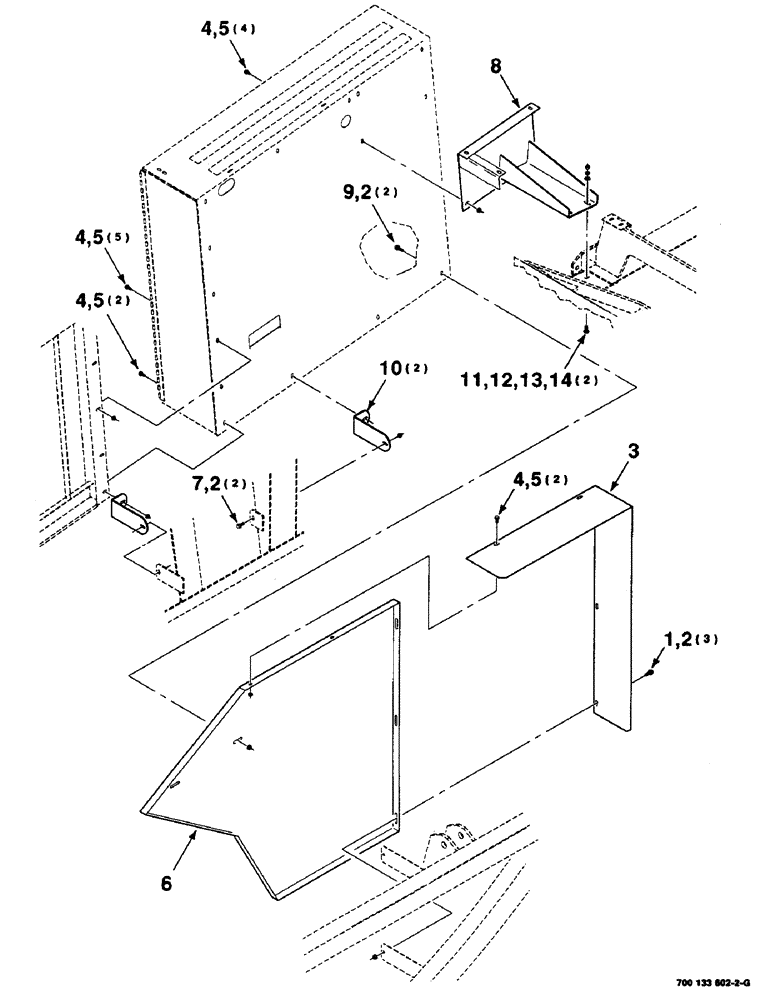

Запчасти Case IH 8590 (7-18) - TWINE BOX SHIELDS ASSEMBLY, RIGHT (12) - MAIN FRAME

1

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

3шт.

2

231-5146

FLANGE NUT,3/8"-16

7шт.

3

700133713

SHIELD

1шт.

4

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

13шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

13шт.

6

700133712

SHIELD

- right

1шт.

7

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.

8

700114038

SUPPORT

WA - right

1шт.

9

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

3/8-16 X 1 HFSS

2шт.

10

6844682

BRACKET

2шт.

11

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

2шт.

12

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

13

492-11038

LOCK WASHER,3/8"

2шт.

14

425-106

NUT,3/8"-16, Cl 5

2шт.
