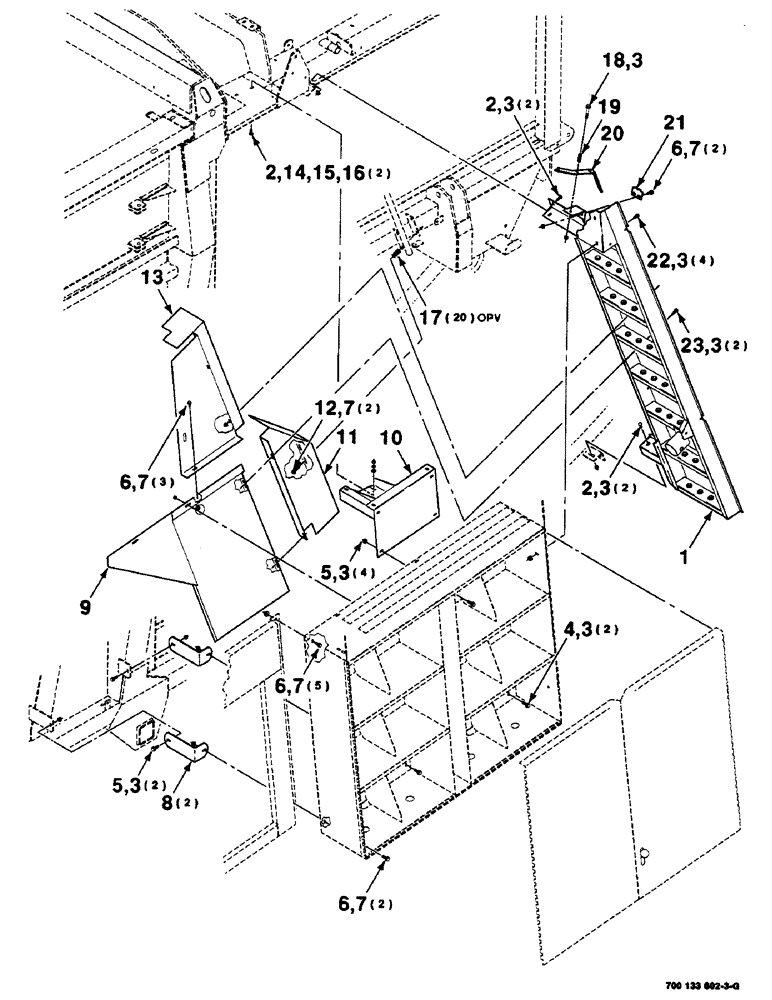

Запчасти Case IH 8590 (7-16) - LADDER AND TWINE BOX SHIELD ASSEMBLIES, LEFT (12) - MAIN FRAME

1

700133669

LADDER

WA

1шт.

2

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

6шт.

3

231-5146

FLANGE NUT,3/8"-16

19шт.

4

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

3/8-16 X 1 HFSS

2шт.

5

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

6шт.

6

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

14шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

16шт.

8

6844682

BRACKET

2шт.

9

700114048

SHIELD

WA - left

1шт.

10

700114037

SUPPORT

WA - left

1шт.

11

700133642

SHIELD

1шт.

12

409-7524

BOLT,Hex Flg, 5/16" - 18 x 1 1/2", Spcl

5/16-18 X 1-1/2 HFSS

2шт.

13

700133641

SHIELD

1шт.

14

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

15

492-11038

LOCK WASHER,3/8"

2шт.

16

425-106

NUT,3/8"-16, Cl 5

2шт.

17

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

20шт.

18

7702079

SCREW

3/8-16 X 2-1/2 HFS GR8

1шт.

19

58644

SPRING

- compression

1шт.

20

700121607

HANDLE

1шт.

21

700121606

PLATE

1шт.

22

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

4шт.

23

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HFSS

2шт.
