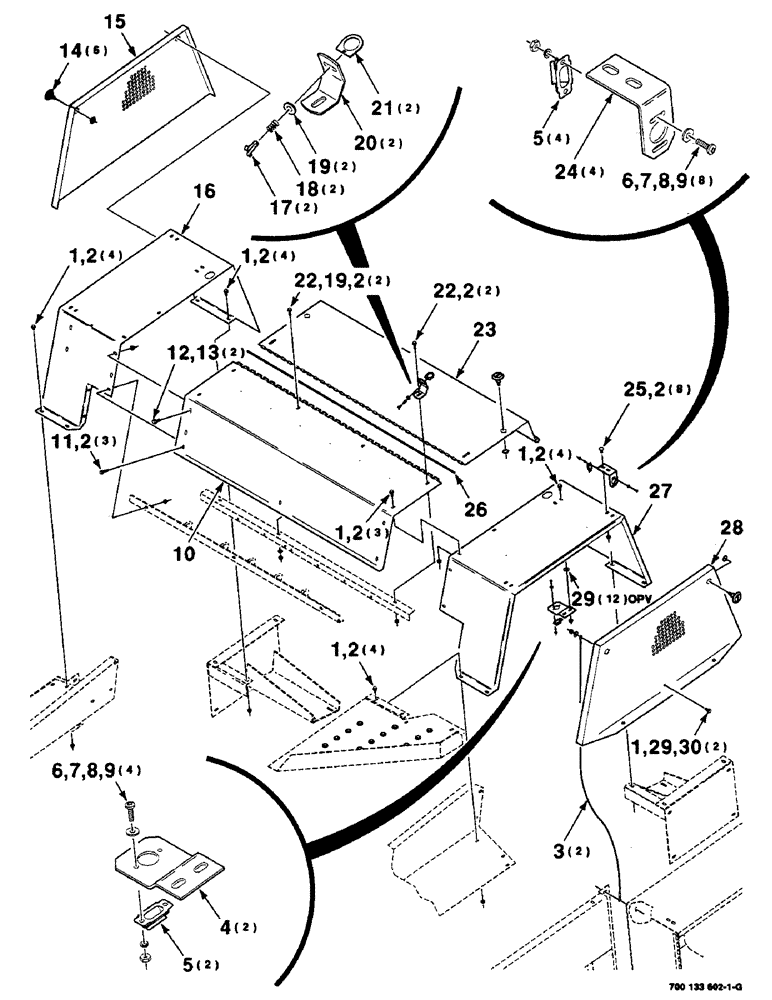

Запчасти Case IH 8590 (7-14) - KNOTTER SHIELD ASSEMBLIES (12) - MAIN FRAME

1

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

21шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

34шт.

3

8021693

CABLE

2шт.

4

700133160

SUPPORT

- latch

2шт.

5

700714529

SOCKET/RECEPTACLE

RECEPTACLE

6шт.

6

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

#10-24 X 1/2 CRPHMS

12шт.

7

195-513

WASHER,#10

PLAIN WASHER #10

12шт.

8

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

12шт.

9

225-14110

NUT,#10-24

12шт.

10

700133668

SHIELD

1шт.

11

163-41

SCREW,Sl Hex Wshr Hd, 5/16" - 18 x 1 1/4"

5/16-18 X 1-1/4 HWHMS

3шт.

12

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.

13

231-5146

FLANGE NUT,3/8"-16

2шт.

14

700714528

LATCH

- 1/4 turn

6шт.

15

700133662

CAP

WA - end, right

1шт.

16

700133666

FRAME

- right

1шт.

17

7894975

CLIP

2шт.

18

7758212

SPRING

- compression

2шт.

19

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

4шт.

20

6564595

STOP

- door

2шт.

21

7894967

HANDLE

2шт.

22

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

4шт.

23

700133667

DOOR

- top

1шт.

24

700133664

SUPPORT

- receptacle

4шт.

25

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G5, Full Thd

8шт.

26

700122881

PIN

- hinge

1шт.

27

700133665

FRAME

- left

1шт.

28

700133659

CAP

WA - end, left

1шт.

29

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

14шт.

30

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

2шт.
