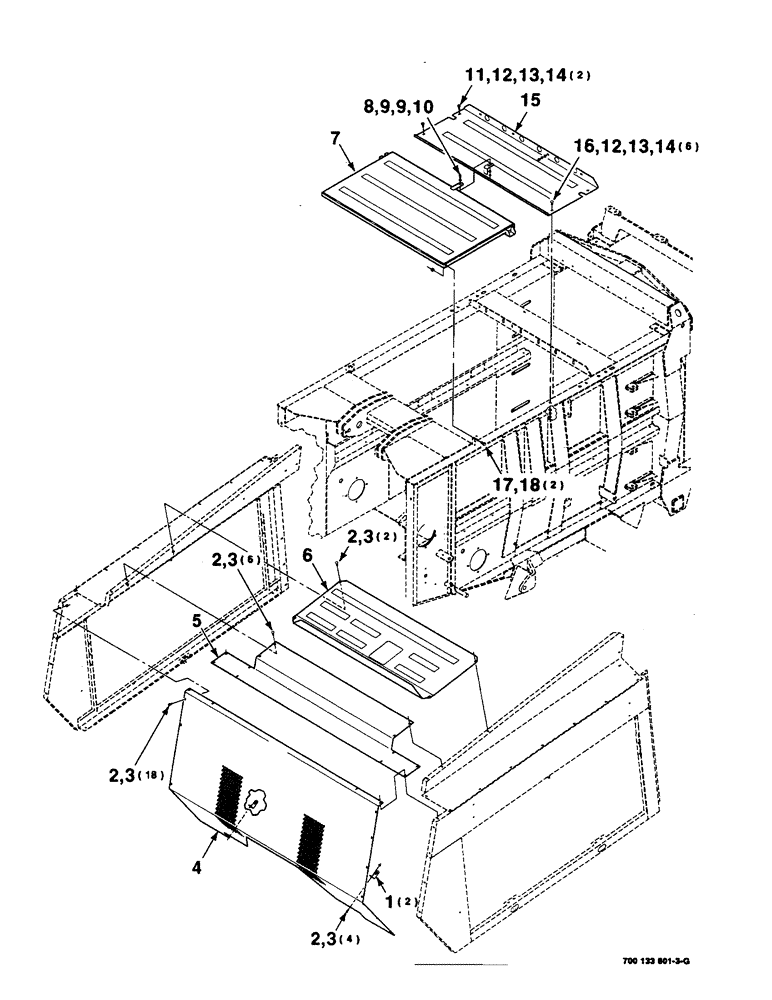

Запчасти Case IH 8590 (7-08) - SHIELDS ASSEMBLY, TOP AND FRONT (12) - MAIN FRAME

1

700114022

CHANNEL

ANGLE

2шт.

2

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

30шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

30шт.

4

700113952

SHIELD

ASSEMBLY - front (Includes decal)

1шт.

5

700113953

SHIELD

- top

1шт.

6

700133635

SHIELD

ASSEMBLY (Includes safety tread)

1шт.

7

700133709

LID

ASSEMBLY (Includes safety tread)

1шт.

8

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

C Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

9

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

10

231-1445

NUT,5/16"-18, GB

NUT, LOCK, 5/16"-18, GB

1шт.

11

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.

12

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

8шт.

13

492-11038

LOCK WASHER,3/8"

8шт.

14

425-106

NUT,3/8"-16, Cl 5

8шт.

15

700133711

CHANNEL

ASSEMBLY (Includes safety tread)

1шт.

16

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

6шт.

17

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

18

230-4118

LOCK NUT,1/2"-13, GA

1/2-13 HTLN GR/B

2шт.
