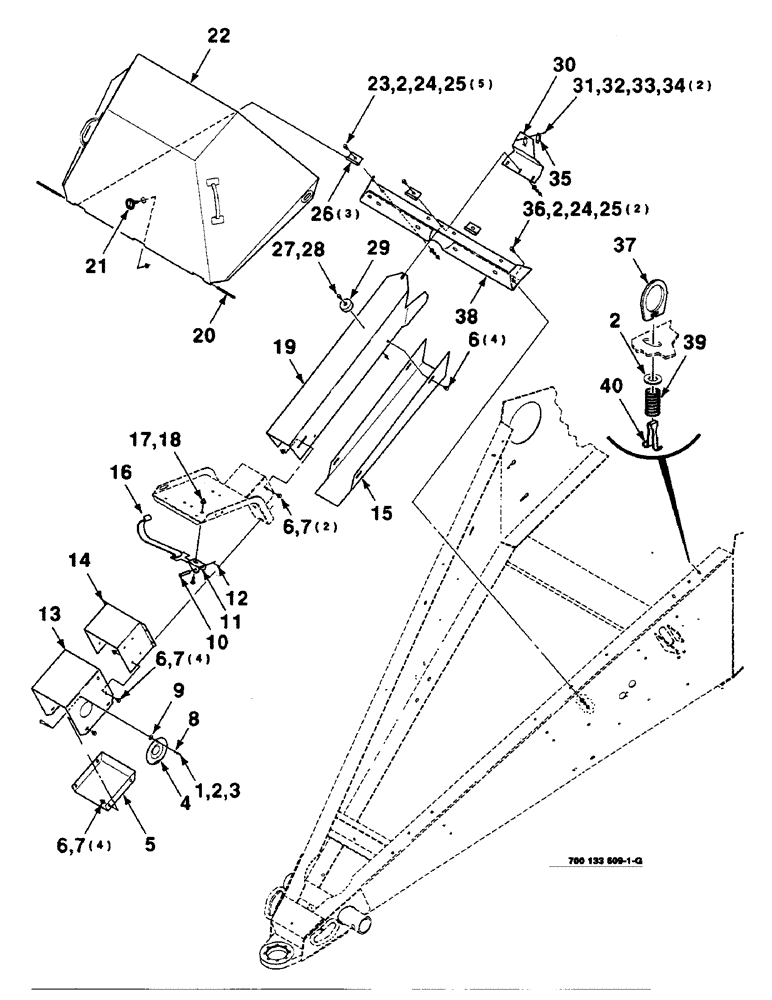

Запчасти Case IH 8590 (7-06) - SHIELDS ASSEMBLY, FRONT (12) - MAIN FRAME

1

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

2

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

9шт.

3

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

1шт.

4

700133083

SHIELD

1шт.

5

700133732

SHIELD

1шт.

6

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

14шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

10шт.

8

CAS758342

SPRING

- compression

1шт.

9

700709866

WASHER

- washer, camloc

1шт.

10

863381

CLIP,9.53mm OD x 50.8mm L

3/8 X 2 CLEVIS PIN

1шт.

11

700123830

CHANNEL

- support

1шт.

12

432-1012

COTTER PIN,5/32" x 3/4"

5/32" x 3/4"

1шт.

13

700133731

SHIELD

1шт.

14

700114012

BEARING COVER

SHIELD - bearing

1шт.

15

700133735

SHIELD

- lower

1шт.

16

700134443

SUPPORT

- strap

1шт.

17

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

1шт.

18

329-286

FLANGE NUT,Flg, 3/8"-16, G8

1шт.

19

700133733

SHIELD

WA - PTO

1шт.

20

65052

SPACER

- hinge

1шт.

21

700714528

LATCH

- 1/4 turn

1шт.

22

700133741

SHIELD

WA - flywheel

1шт.

23

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

5шт.

24

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

25

425-105

NUT,5/16"-18, G5

7шт.

26

700113994

HINGE

SUPPORT - hinge

3шт.

27

700707203

CAPTIVE WASHER SCREW

#12-24 X 3/4 HWHMS

1шт.

28

1954816C1

LOCK NUT

#12-24 HCLN SPECIAL

1шт.

29

700708648

BUMPER

1шт.

30

700133737

SUPPORT

- latch

1шт.

31

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

#10-24 X 1/2 CRPHMS GR60M

2шт.

32

195-513

WASHER,#10

PLAIN WASHER #10

2шт.

33

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

34

225-14110

NUT,#10-24

2шт.

35

700714529

SOCKET/RECEPTACLE

RECEPTACLE

1шт.

36

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

37

7894967

HANDLE

1шт.

38

700133740

CHANNEL

1шт.

39

7758212

SPRING

- compression

1шт.

40

7894975

CLIP

1шт.
