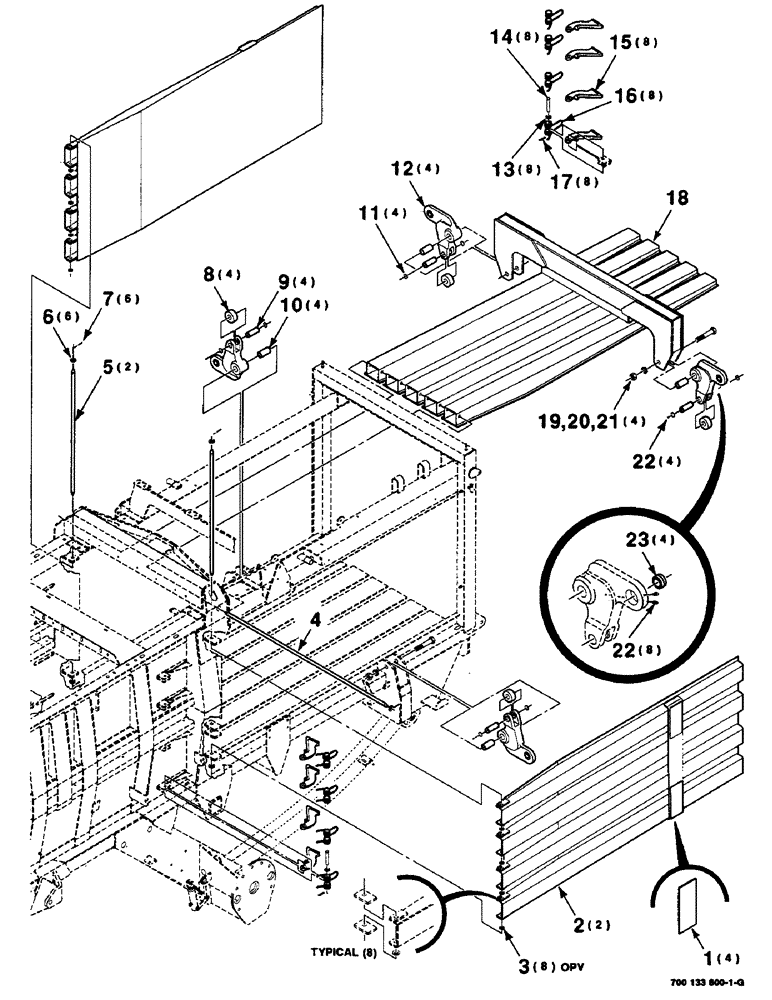

Запчасти Case IH 8590 (7-04) - BALE DENSITY DOORS AND ARMS ASSEMBLY (12) - MAIN FRAME

1

6529317

LARGE PLATE

PLATE - wear

4шт.

2

700113586

DOOR

WA (Includes Ref: 1)

2шт.

3

95-81182

WASHER,0.81" ID x 1.25" OD x 0.07" Thk

3/4 X 14 GAUGE NRMB

8шт.

4

6529432

PIN

- top

1шт.

5

700113609

PIN

- side

2шт.

6

705566

WASHER

3/4 HARDENED PLAIN WASHER

6шт.

7

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

6шт.

8

700113614

ROLLER

4шт.

9

700113615

PIN

4шт.

10

6529408

BUSHING

4шт.

11

103-16125

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

4шт.

12

700113610

ARM

ASSEMBLY (Includes Ref: 22 and 23)

4шт.

13

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

8шт.

14

439-11060

HEADED PIN,15.88mm OD x 95.25mm L

5/8 X 3-3/4 CLEVIS PIN

8шт.

15

700137654

DOG

HAY DOG

8шт.

16

700706376

SPRING

- torsion

8шт.

17

S120261

PIN

.148 WIRE HAIR PIN COTTER

8шт.

18

700113577

DOOR

WA - upper

1шт.

19

413-1688

BOLT,Hex, 1" - 8 x 5-1/2", Gr 5

1-8 X 5-1/2 C

4шт.

20

192-171

LOCK WASHER,1"

WASHER, LOCK, 1"

4шт.

21

425-1016

NUT,1"-8, G5

4шт.

22

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

12шт.

23

D22200

BEARING,25.4mm ID x 36.5mm OD x 22.23mm L

BUSHING

4шт.
