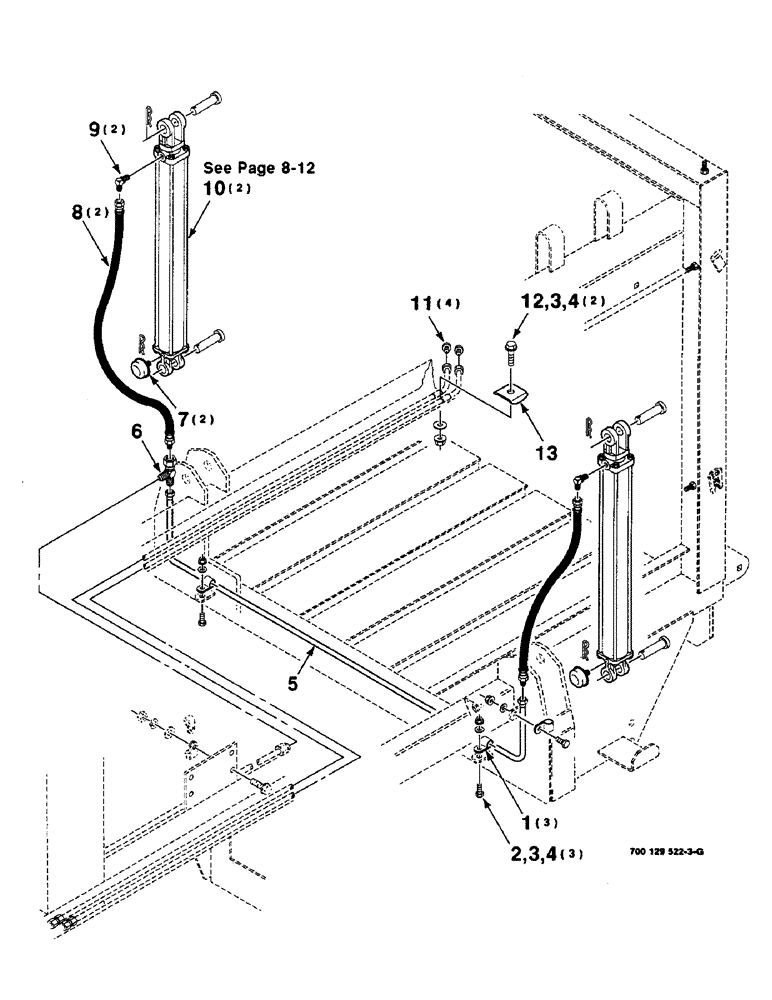

Запчасти Case IH 8590 (8-10) - HYDRAULIC BALE DENSITY ASSEMBLY (07) - HYDRAULICS

1

700708939

CLAMP

- heavy, duty

3шт.

2

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

C Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

3

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

4шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

4шт.

5

700706392

FLEXIBLE HOSE

LINE - hydraulic

1шт.

6

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

7

8799280

FILTER

2шт.

8

7872856

HOSE

- hydraulic

2шт.

9

218-1054

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/2"-14, NPTF

- 90 degrees

2шт.

10

700706338

HYDRAULIC CYLINDER,31.75mm Rod, 106.4mm Stroke

CYLINDER ASSEMBLY - hydraulic (Includes pins)

2шт.

11

218-774

PLUG,9/16"-18, 37 Degree

9/16-18 PLUG

4шт.

12

7883358

SCREW,Hex Washer, 5/16" - 18 x 1 1/2"

5/16-18 X 1-1/2 HWHMS

1шт.

13

6280036

CLAMP

- line

1шт.
