(8-08) - HYDRAULIC CYLINDER ASSEMBLY, PICKUP, 7075625 HYDRAULIC CYLINDER COMPLETE, 2" BORE X 4" STROKE

Запчасти Case IH 8590 (8-08) - HYDRAULIC CYLINDER ASSEMBLY, PICKUP, 7075625 HYDRAULIC CYLINDER COMPLETE, 2" BORE X 4" STROKE (07) - HYDRAULICS

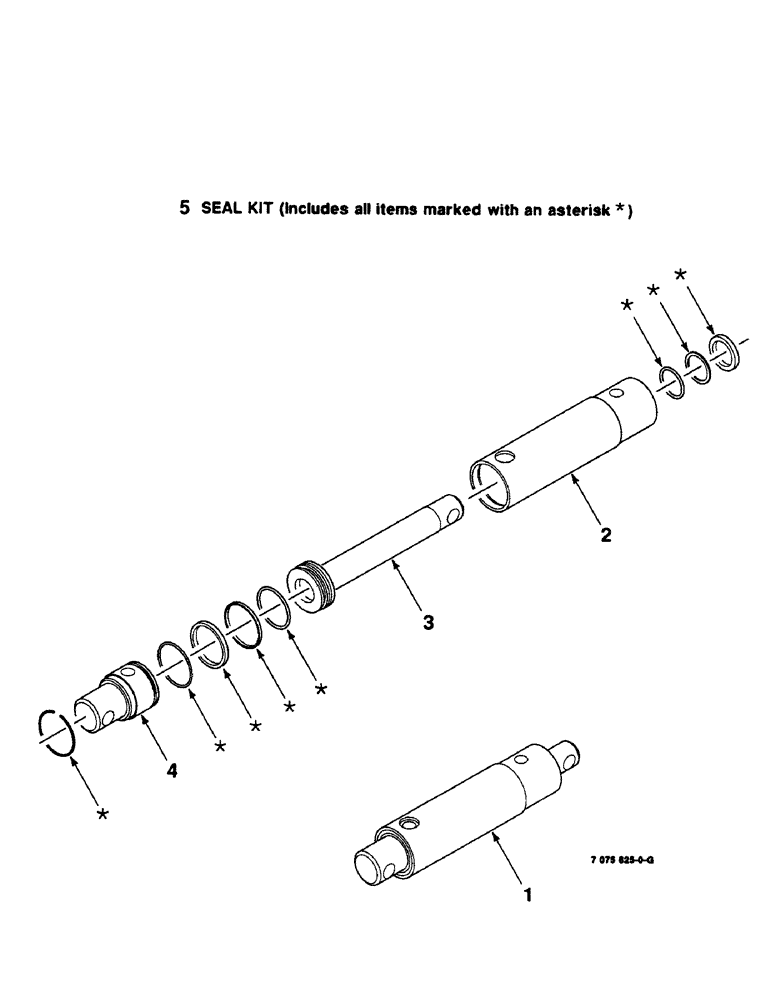

Схема запчастей Case IH 8590 - (8-08) - HYDRAULIC CYLINDER ASSEMBLY, PICKUP, 7075625 HYDRAULIC CYLINDER COMPLETE, 2" BORE X 4" STROKE (07) - HYDRAULICS
2
3
4
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

7075625

CYLINDER

HYDRAULIC CYLINDER COMPLETE (2 inch bore x 4 inch stroke)

1шт.

2

7732258

TUBE ASSY.

BARREL

1шт.

3

7732266

ROD

PISTON ROD ASSEMBLY

1шт.

4

7732241

HEAD

- cylinder

1шт.

5

7732274

SEAL KIT

SEAL KIT

1шт.
