Запчасти Case IH 8590 (8-06) - HYDRAULIC CONTROL VALVE ASSEMBLY, BALE DENSITY, 700706387 CONTROL VALVE ASSEMBLY COMPLETE (07) - HYDRAULICS

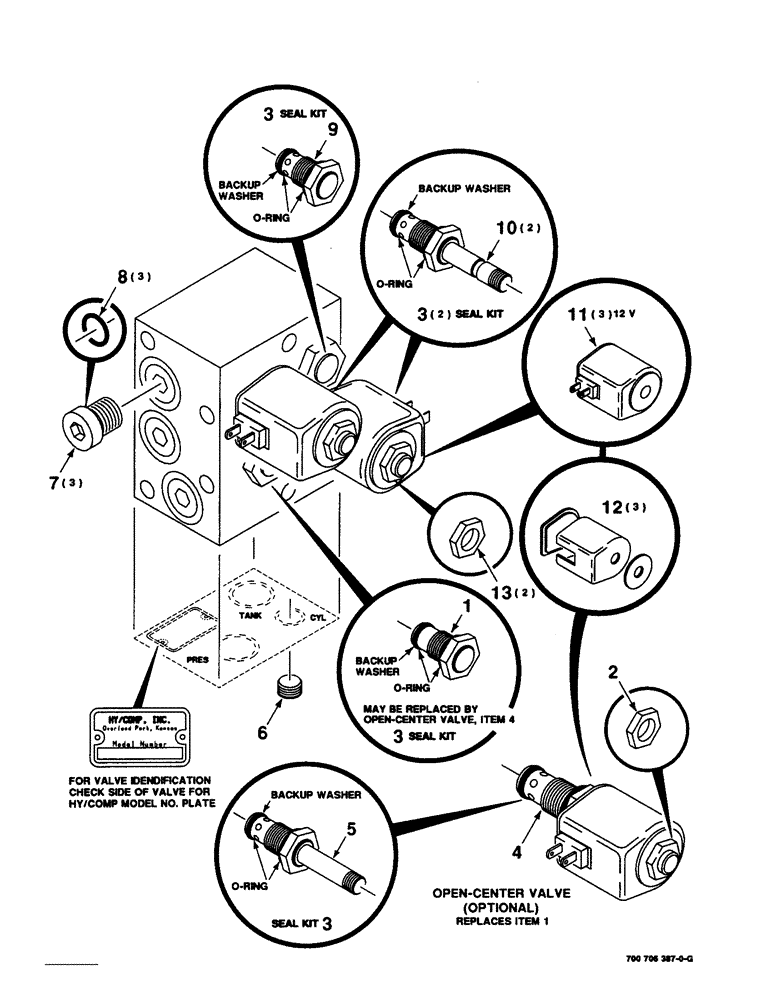

Схема запчастей Case IH 8590 - (8-06) - HYDRAULIC CONTROL VALVE ASSEMBLY, BALE DENSITY, 700706387 CONTROL VALVE ASSEMBLY COMPLETE (07) - HYDRAULICS
5
3
8
3
2
6
3
1
11
3
12
4
13
10
7
9

Артикул

Название

Примечание

Количество

700706387

CONTROL VALVE

VALVE ASSEMBLY COMPLETE

1шт.

1

700706602

PLUG

- cartridge (Includes Ref: 3)

1шт.

2

700706156

NUT

1шт.

3

700706154

SEAL KIT

5шт.

4

700706386

CONTROL VALVE

VALVE ASSEMBLY (Includes Ref: 2, 3, 5, 11 & 12)

1шт.

5

700706155

VALVE PRESSURE RELIE

CARTRIDGE

1шт.

6

700706609

ORIFICE

PLUG

1шт.

7

700706604

PLUG

O-RING (Includes Ref: 8)

3шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

3шт.

9

700707832

VALVE PRESSURE RELIE

CHECK VALVE

1шт.

10

700706153

HYDRAULIC VALVE

CARTRIDGE

2шт.

11

700710176

COIL

(12V DC)

3шт.

12

700707826

REPAIR KIT

KIT - coil housing

3шт.

13

700706151

NUT

2шт.

Выбрано товаров: 14
