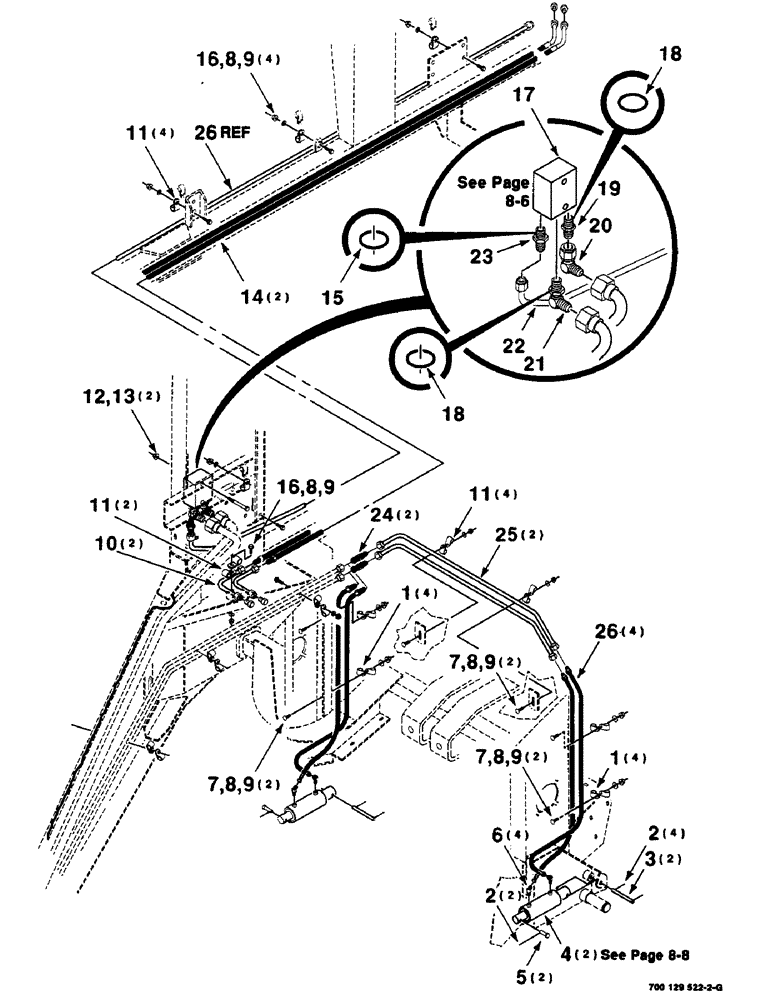

Запчасти Case IH 8590 (8-04) - HYDRAULIC ASSEMBLY, FRONT, (CONT) (07) - HYDRAULICS

1

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

Line 1/2", Insul, 1/2" Bolt

8шт.

2

432-1020

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

6шт.

3

700119558

PIN

2шт.

4

7075625

CYLINDER

ASSEMBLY - hydraulic

2шт.

5

439-11032

HEADED PIN,15.88mm OD x 50.8mm L

5/8 X 2 CLEVIS PIN

2шт.

6

218-533

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/4"-18, NPTF

4шт.

7

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

6шт.

8

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

11шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

11шт.

10

700715832

TUBE ASSY.,9.52 mm OD, 90, 90 mm Length

LINE - hydraulic

2шт.

11

700708939

CLAMP

- heavy, duty

10шт.

12

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

2шт.

13

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

2шт.

14

700715831

HOSE

- hydraulic

2шт.

15

738468

O-RING

1шт.

16

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

5шт.

17

700706387

CONTROL VALVE

VALVE ASSEMBLY - control

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

19

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR, HYD., (Includes Ref:18) 1 1/16"-12, 37º x 7/8"-14, O-Ring

1шт.

20

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

21

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

90 DEGREE ELBOW (Includes Ref: 18)

1шт.

22

700706391

FLEXIBLE HOSE

LINE - hydraulic

1шт.

23

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR (Incl. Ref: 15)

1шт.

24

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

2шт.

25

700716376

FLEXIBLE HOSE

LINE - hydraulic

2шт.

26

700716463

FLEXIBLE HOSE

HOSE - hydraulic

4шт.
