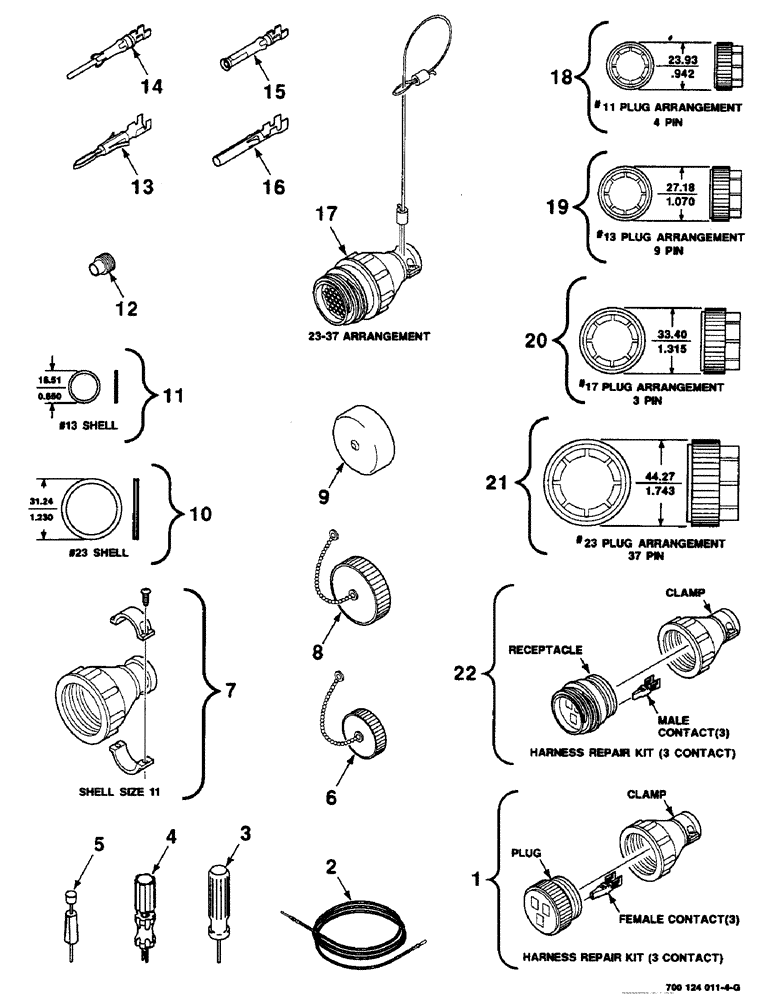

Запчасти Case IH 8590 (4-14) - ELECTRICAL HARNESS SERVICE PARTS, (CONT) (06) - ELECTRICAL

1

1714005

PACKAGE,SERVICE

KIT - harness repair (Female end)

1шт.

2

700708333

WIRE

- test

1шт.

3

700707012

TERMINAL CONNECTOR

TOOL - connector repair

1шт.

4

700707014

TERMINAL CONNECTOR

TOOL - connector repair

1шт.

5

131503C1

TOOL

- connector repair

1шт.

6

700707015

TANK

CAP - sealing

1шт.

7

700709233

CLAMP

- cable (Shell size 11)

1шт.

8

700712983

CAP

- sealing (Shell size 23)

1шт.

9

CAS745216

CAP

- sealing

1шт.

10

700711660

SEAL

1шт.

11

700712896

SEAL

1шт.

12

700706400

PLUG

SEAL

1шт.

13

700706401

TERMINAL

- pin, male

1шт.

14

700708757

ELEC. TERMINAL PIN,18 - 16 SAE

PIN

1шт.

15

700708758

TERMINAL

SOCKET - type III, sel. gold/nickel

1шт.

16

700708760

ELEC. TERMINAL PIN,18 - 20 SAE

- sleeve

1шт.

17

700713300

ELEC CONNECTOR

PLUG ASSEMBLY - service, standard sex, free hanging, w/peripheral seal

1шт.

18

60-6126T2

CONNECTION

RING - coupling

1шт.

19

60-6127T2

CONNECTION

RING - coupling

1шт.

20

1301191C1

CONNECTION

RING - coupling

1шт.

21

60-6129T2

CONNECTION

RING - coupling

1шт.

22

1713999

PACKAGE,SERVICE

KIT - harness repair (Male end)

1шт.
