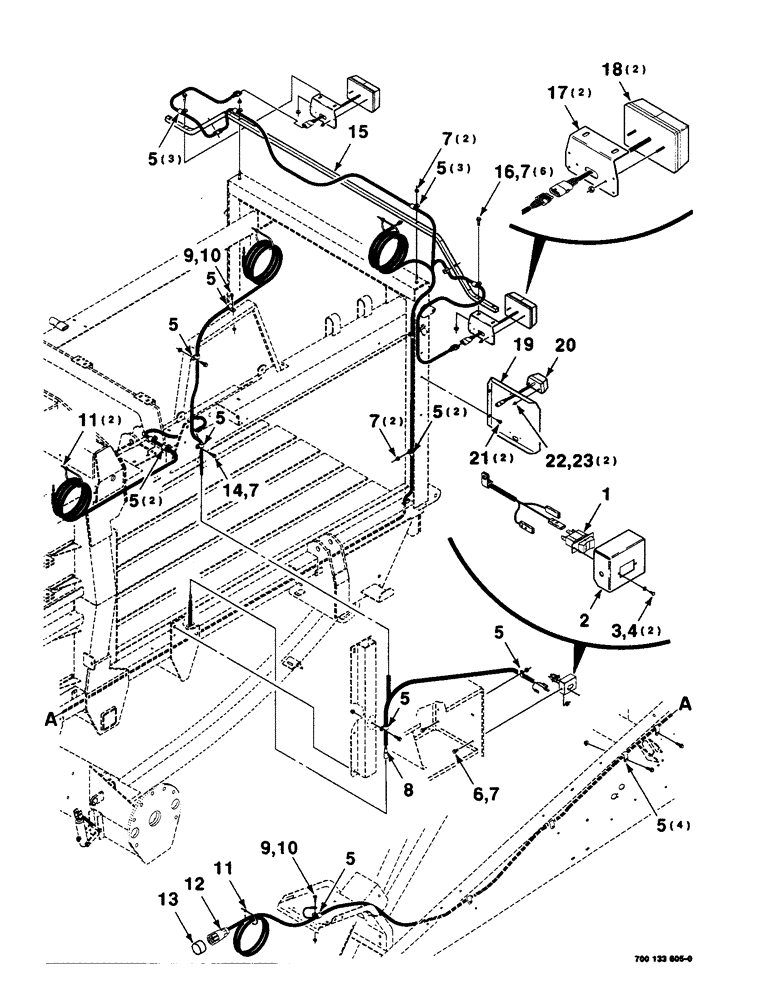

Запчасти Case IH 8590 (4-04) - TAIL LIGHT AND FLASHER ASSEMBLY (06) - ELECTRICAL

1

700715143

SWITCH

- rocker

1шт.

2

700133171

SUPPORT

- switch

1шт.

3

440-1068

SCREW,Cross Pan Hd, #6-32 x 1/2"

#6-32 X 1/2 CRPHMS GR60M

2шт.

4

492-11006

LOCK WASHER,#6

Washer, Lock, #6

2шт.

5

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

20шт.

6

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

1шт.

7

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

12шт.

8

700715694

ELECTRIC CABLE

HARNESS - lights

1шт.

9

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

2шт.

10

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

2шт.

11

529070

CABLE TIE,368.3mm L

TIE - cable

3шт.

12

700715514

WIRE HARNESS

HARNESS - lights

1шт.

13

745216

LINE

PLUG

1шт.

14

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

1шт.

15

700133723

SUPPORT

- light

1шт.

16

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

6шт.

17

700133748

COVER PLATE

PLATE - light

2шт.

18

700716461

TAIL LAMP

LIGHT - tail

2шт.

19

700133747

SUPPORT

- registration plate

1шт.

20

700716772

NUMBER PLATE LAMP

LIGHT - registration plate

1шт.

21

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

22

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

23

825-1405

NUT,M5, Cl 8

2шт.
