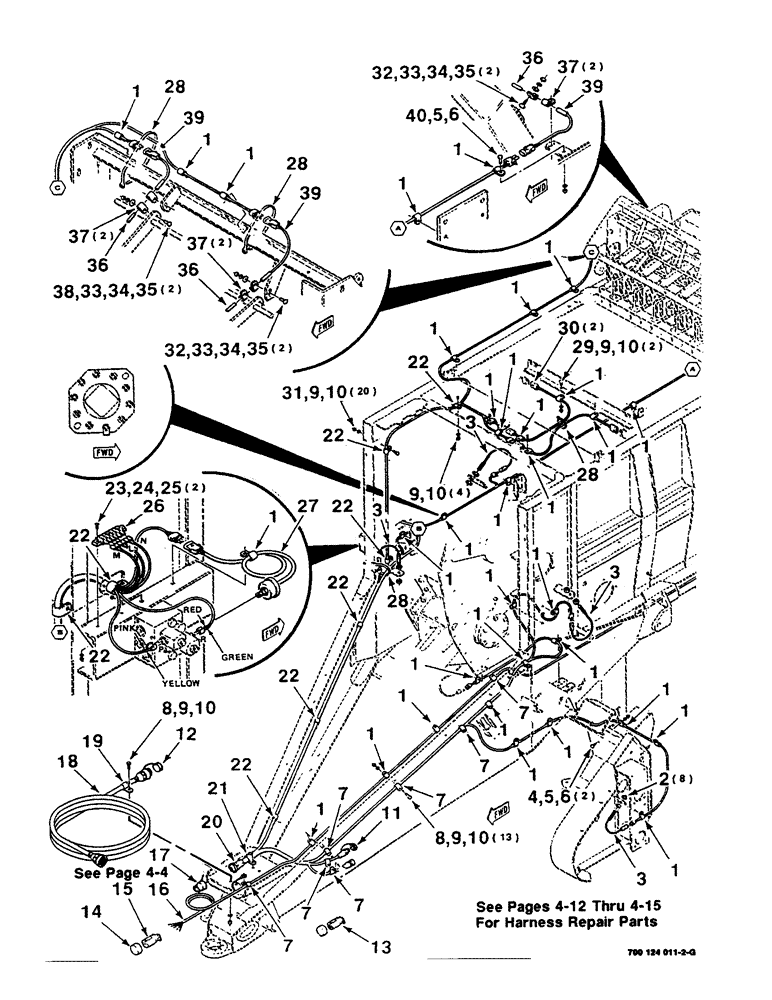

Запчасти Case IH 8590 (4-02) - ELECTRICAL WIRING AND SENSOR ASSEMBLY (06) - ELECTRICAL

1

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

Line 3/8", Insul, 3/8" Bolt

33шт.

2

425-1512

JAM NUT,Jam, 3/4"-10, G5

3/4-16 HJN

8шт.

3

700706398

SENSOR

- PTO

4шт.

4

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

5

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

6

425-105

NUT,5/16"-18, G5

3шт.

7

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

7шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

14шт.

9

492-11038

LOCK WASHER,3/8"

40шт.

10

425-106

NUT,3/8"-16, Cl 5

40шт.

11

700707016

CAP

- sealing

1шт.

12

700712983

CAP

- sealing

1шт.

13

700714649

KIT

CONNECTOR (Optional for European tractors)

1шт.

14

CAS745216

CAP

1шт.

15

121646C1

TERMINAL CONNECTOR,Female

PLUG - 7 pole, cable

1шт.

16

700715514

WIRE HARNESS

HARNESS - lights (Includes item 15)

1шт.

17

700713300

ELEC CONNECTOR

PLUG ASSEMBLY - cap, service

1шт.

18

700706459

WIRE HARNESS

HARNESS - control, cable (Includes item 12)

1шт.

19

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

20

700712846

WIRE HARNESS

HARNESS - wire, main (Includes Ref: 17)

1шт.

21

S95446

CLAMP,1 5/16", Insul, 1/2" Bolt

1шт.

22

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

Hose 3/4", Insul, 3/8" Bolt

8шт.

23

700710188

SCREW

#6-32 X 3/4 CRPHMS

2шт.

24

492-11006

LOCK WASHER,#6

Washer, Lock, #6

2шт.

25

225-14106

NUT,#6-32

2шт.

26

700706645

TERMINAL STRIP

STRIP - terminal

1шт.

27

700113064

PRESSURE SWITCH

TRANSDUCER ASSEMBLY - pressure

1шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

4шт.

29

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

2шт.

30

700706412

WIRE HARNESS

CABLE ASSEMBLY

2шт.

31

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

20шт.

32

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 RHSNB

4шт.

33

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

6шт.

34

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

35

425-104

NUT,1/4"-20, Cl 5

6шт.

36

700706340

MAGNET

3шт.

37

751321

CLAMP

1/4 ID CLAMP

6шт.

38

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

39

700113863

SENSOR

SWITCH ASSEMBLY

3шт.

40

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

C Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.
