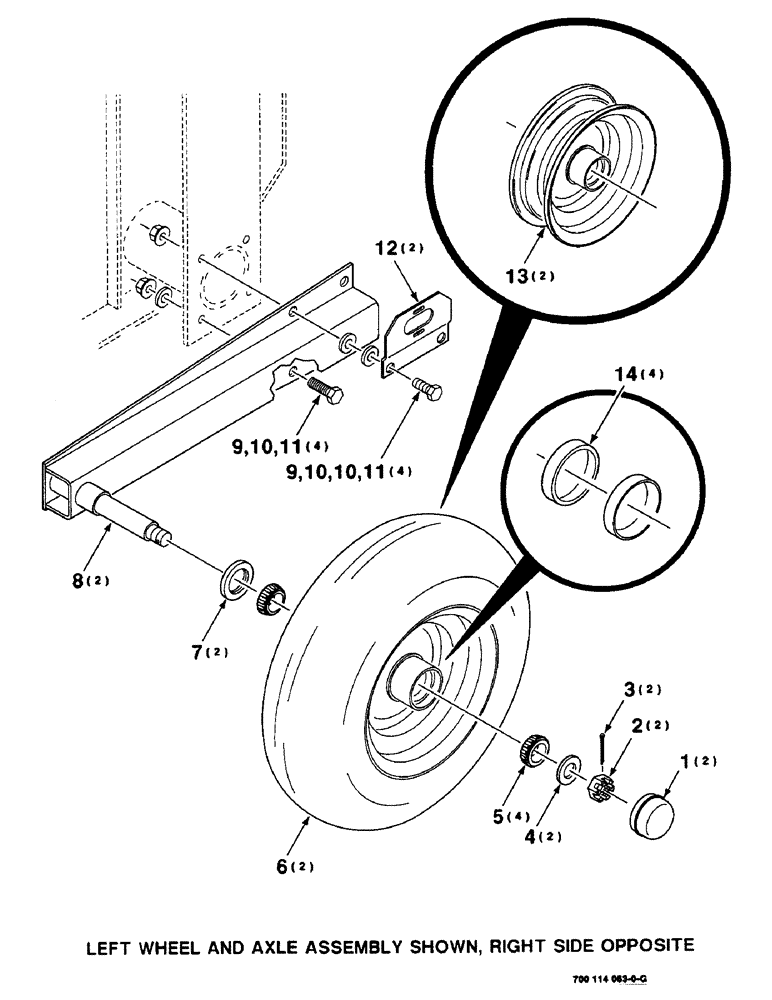

Запчасти Case IH 8590 (3-22) - PICKUP GAUGE WHEEL ASSEMBLY Pickup

1

T27814

CAP

- hub

2шт.

2

425-1312

SLOTTED NUT,3/4"-16, G5

3/4-16 SLOTTED HEX NUT

2шт.

3

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

2шт.

4

705566

WASHER

3/4 HARDENED PLAIN WASHER

2шт.

5

D29266

ROLLER BEARING,1" ID x 0.58"

BEARING - cone

4шт.

6

700708049

WHEEL

AND TIRE ASSEMBLY (Includes Ref: 13 and 14)

2шт.

7

474094R91

OIL SEAL

2шт.

8

700114064

STRUT

WA - wheel

2шт.

9

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

8шт.

10

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

12шт.

11

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

8шт.

12

700133681

SUPPORT

2шт.

13

700708048

WHEEL ASSY

WHEEL ASSEMBLY

2шт.

14

572564R1

BEARING CUP

CUP - bearing

4шт.
