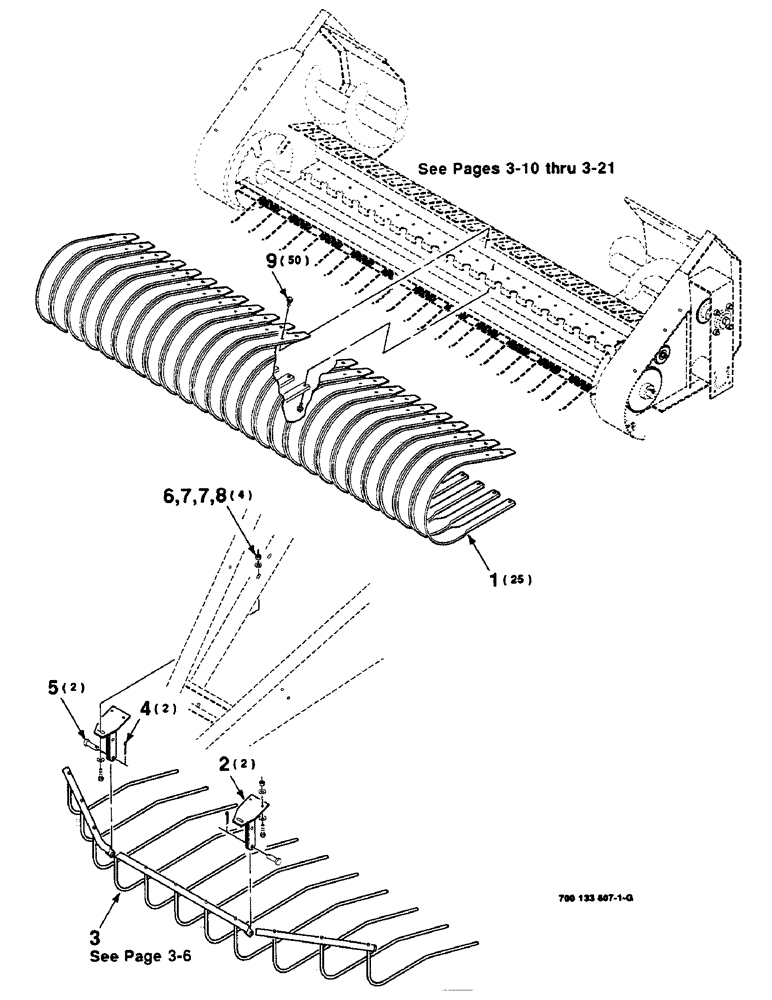

Запчасти Case IH 8590 (3-04) - WINDGUARD AND PICKUP WRAPPERS ASSEMBLY Pickup

1

700113244

GUARD

WRAPPER

25шт.

2

700113625

HANGER

WA

2шт.

3

700121638

WINDGUARD

WA

1шт.

4

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

5

427-8136

CLEVIS PIN,1/2" x 1.360"

1/2 X 1-1/4 CLEVIS PIN

2шт.

6

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

7

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

8шт.

8

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

4шт.

9

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

50шт.
