Запчасти Case IH 8590 (2-22) - DRIVE ASSEMBLY, LEFT, AUXILIARY Driveline

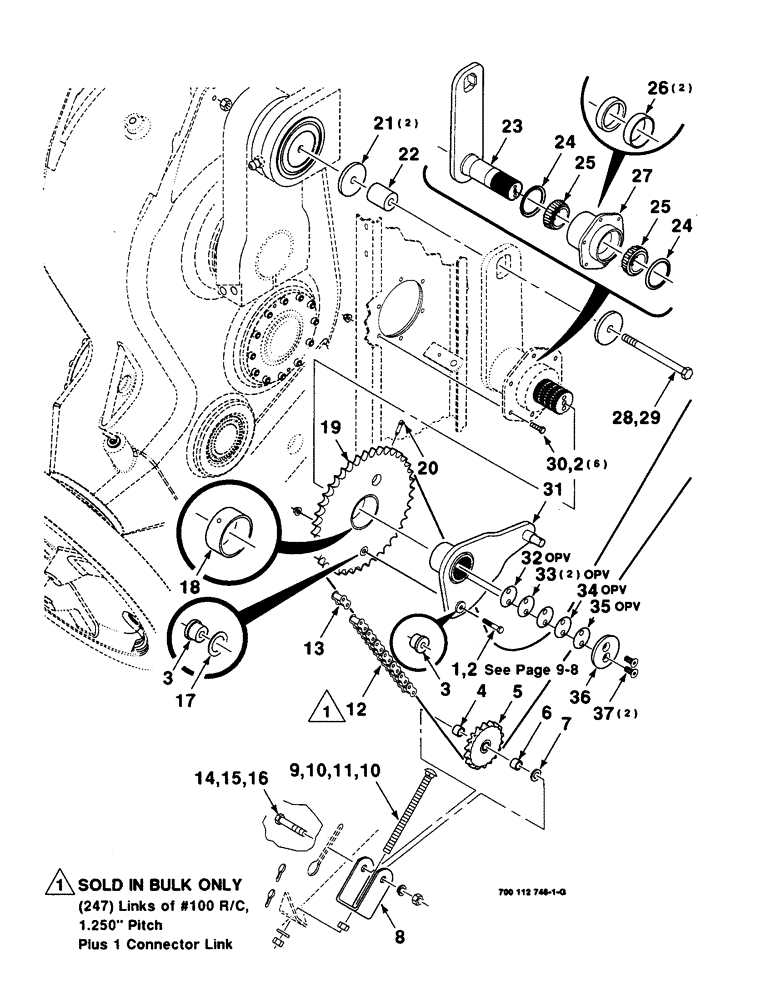

Схема запчастей Case IH 8590 - (2-22) - DRIVE ASSEMBLY, LEFT, AUXILIARY Driveline
9
16
3
3
12
3
13
11
22
31
1
1
19
32
30
10
35
20
21
24
23
36
6
37
14
15
27
34
10
2
4
2
25
8
17
24
7
25
5
28
26
29
18

Артикул

Название

Примечание

Количество

1

426-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

1шт.

2

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

7шт.

3

6526081

BUSHING

SLEEVE - shear bolt

2шт.

4

6179246

BUSHING

1шт.

5

700706110

SPROCKET

- idler, 12 tooth

1шт.

6

6823512

SPACER

1шт.

7

705566

WASHER

3/4 HARDENED PLAIN WASHER

1шт.

8

6526164

CLEVIS

1шт.

9

7770878

BOLT,Sq Nk, 1/2" - 13 x 7", Gr 5, Full Thd

1/2-13 X 7 FTRHSNB

1шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

11

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

1шт.

12

1795D

CHAIN (AG)

CHAIN - roller, #100 (10 foot bulk)

1шт.

13

241-44110

LINK,Chain, 31.75mm Pitch

CONNECTOR LINK - #100 R/C

1шт.

14

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

3/4-10 X 4 C

1шт.

15

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

16

425-1012

NUT,3/4"-10, G5

3/4-10 H

1шт.

17

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

1-1/4 X 14 GAUGE NRMB

1шт.

18

700112933

BRONZE BUSHING

BUSHING - bronze

1шт.

19

700112915

SPROCKET,40T

ASSEMBLY - 100B40 tooth (Includes items 3, 17 and 18)

1шт.

20

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1/8-27 X 90 DEGREE ZERK - extended

1шт.

21

6579106

LARGE PLATE

CAP - plate

2шт.

22

700112930

BUSHING

1шт.

23

700134942

ARM

WA

1шт.

24

700716267

SEALING RING COLLAR

SEAL - excluder

2шт.

25

65720C91

BEARING ASSY,3.1496" ID x 5.1181" OD x 1.378"

CONE - bearing

2шт.

26

65721C1

BEARING ASSY,3.1496" ID x 5.1181" OD x 1.378"

CUP - bearing

2шт.

27

700134948

HUB

ASSEMBLY (Includes item 26)

1шт.

28

413-12160

BOLT,Hex, 3/4" - 10 x 10", Gr 5

3/4-10 X 10 B

1шт.

29

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

1шт.

30

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

6шт.

31

700134945

HUB

ASSEMBLY (Includes item 3)

1шт.

32

700716247

SHIM

- 0.51/.020

1шт.

33

700716244

SHIM

- 0.08/.003

2шт.

34

700716245

SHIM

- 0.13/.005

1шт.

35

700716246

SHIM

- 0.25/.010

1шт.

36

700134951

CAP

- retainer

1шт.

37

61-46224

HEX SOC SCREW,FLAT, 5/8" x 1-1/2"

5/8-11 X 1-1/2 HSFCHCS - special

2шт.

Выбрано товаров: 37
