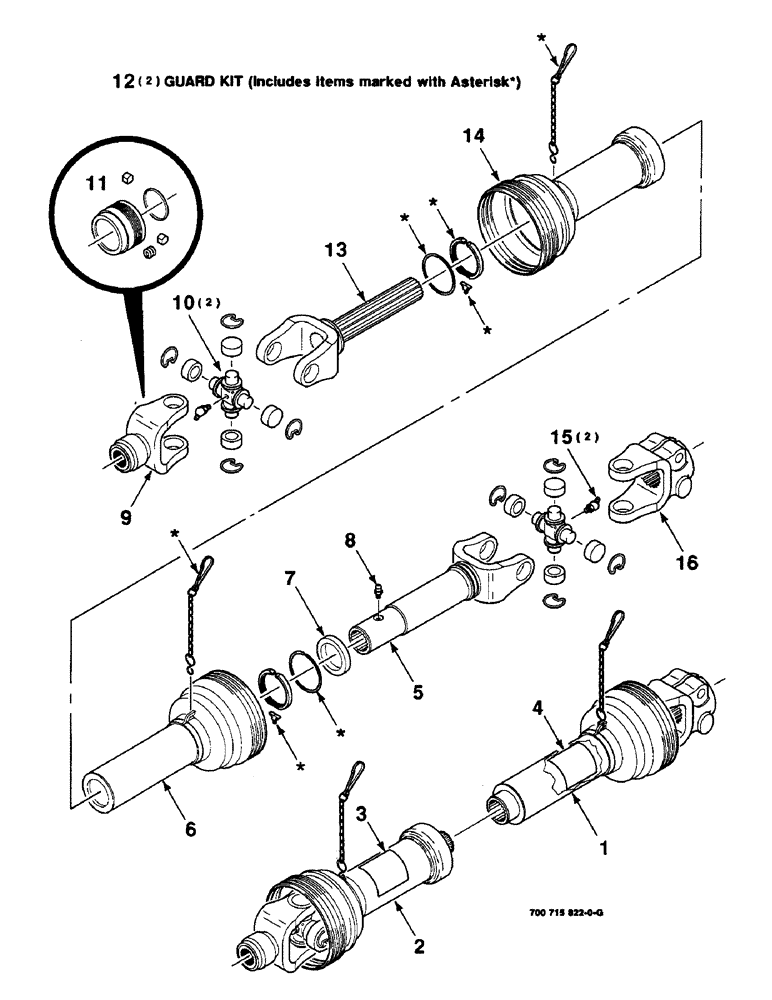

Запчасти Case IH 8590 (9-16) - IMPLEMENT DRIVELINE ASSEMBLY, TYPE 3, 1-3/4" DIAMETER X 20 SPLINE Decals & Attachments

1

700715824

REAR PTO ASSY

U-JOINT ASSEMBLY - half, implement

1шт.

2

700720111

PTO

U-JOINT ASSEMBLY - half, tractor

1шт.

3

80672C1

DECAL

- danger, rotating driveline

1шт.

4

1326528C1

DECAL

- danger, shield missing

1шт.

5

700715827

UNIVERSAL JOINT

YOKE AND TUBE

1шт.

6

700715826

SHIELD

- inner

1шт.

7

700715820

CENTRALIZER

1шт.

8

219-410

LUBE NIPPLE,3/16" NPTF

1шт.

9

700720113

FORK

YOKE - auto lock

1шт.

10

470077R91

BEARING ASSY,1.025" ID x 1.5325" OD x 4.309"

CROSS AND BEARING KIT

2шт.

11

700720044

KIT

YOKE - aut lock, repair kit

1шт.

12

700715022

KIT

GUARD KIT

2шт.

13

8802613

SHAFT

YOKE - shaft

1шт.

14

700715825

SHIELD

- outer

1шт.

15

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1/8-27 X 65 DEGREE ZERK

2шт.

16

700712517

YOKE

- splined, clamp

1шт.
