(9-14) - IMPLEMENT DRIVELINE KIT, TYPE 3, HK40906 IMPLEMENT DRIVELINE KIT COMPLETE

Запчасти Case IH 8590 (9-14) - IMPLEMENT DRIVELINE KIT, TYPE 3, HK40906 IMPLEMENT DRIVELINE KIT COMPLETE Decals & Attachments

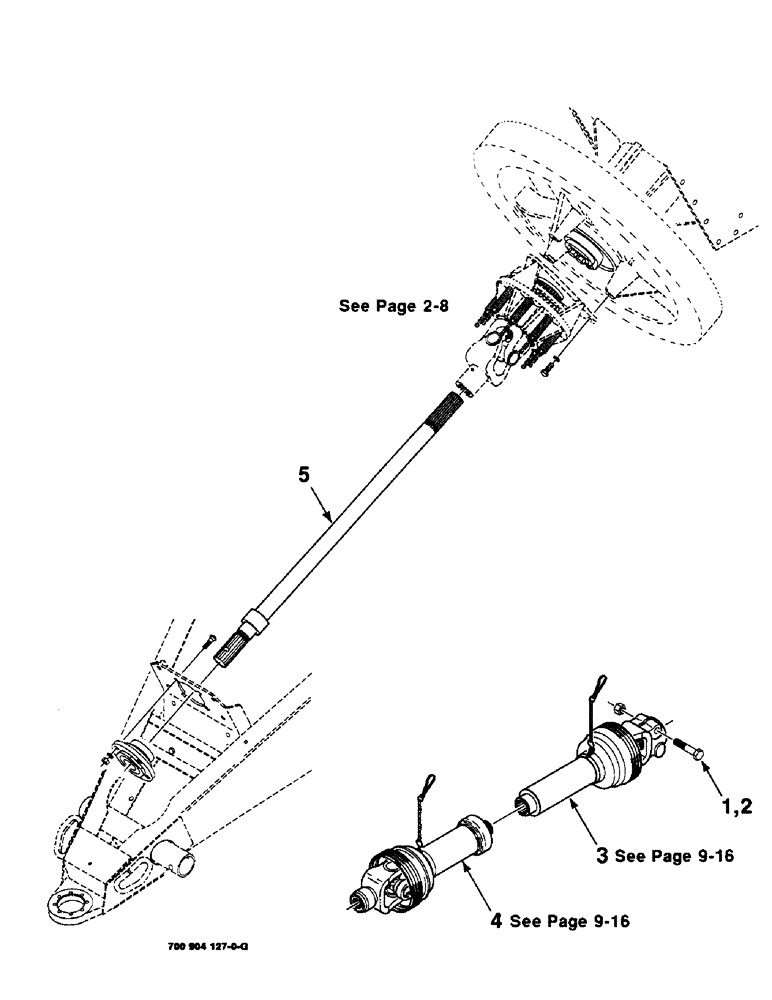

Схема запчастей Case IH 8590 - (9-14) - IMPLEMENT DRIVELINE KIT, TYPE 3, HK40906 IMPLEMENT DRIVELINE KIT COMPLETE Decals & Attachments
3
1
4
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

HK40906

TYPE 3 IDL KIT COMPLETE

1шт.

1

326-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

1шт.

2

700711198

LOCK NUT

5/8-11 HFTLN GR/G

1шт.

3

700715824

REAR PTO ASSY

U-JOINT ASSEMBLY - half, implement

1шт.

4

700720111

PTO

U-JOINT ASSEMBLY - half, tractor

1шт.

5

700113634

SHAFT

ASSEMBLY

1шт.
