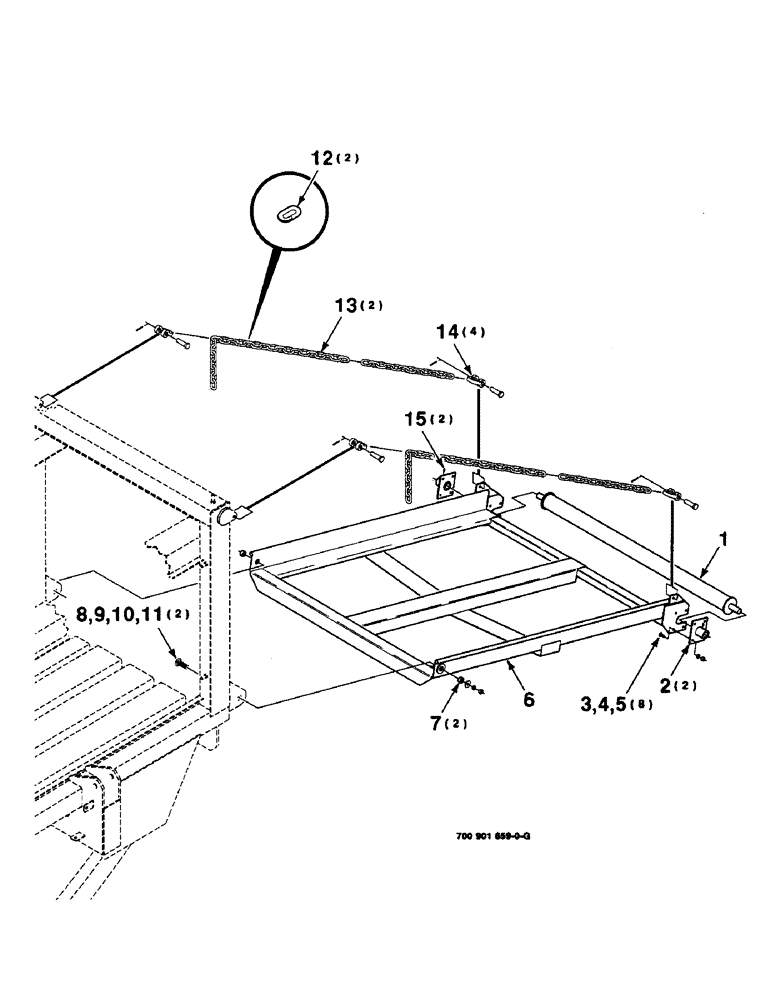

Запчасти Case IH 8590 (9-12) - BALE CHUTE KIT, HK42326 BALE CHUTE KIT COMPLETE Decals & Attachments

HK42326

BALE CHUTE KIT COMPLETE

1шт.

1

6529655

ROLLER

WA

1шт.

2

6529671

BEARING WASHER

WA

2шт.

3

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

8шт.

4

492-11038

LOCK WASHER,3/8"

8шт.

5

425-106

NUT,3/8"-16, Cl 5

8шт.

6

6529564

CHUTE ASSY.

CHUTE WA - bale

1шт.

7

6529705

BUSHING

2шт.

8

433-1032

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

5/8-11 X 2 RHSNB

2шт.

9

495-21069

WASHER,5/8"

5/8 WIDE PLAIN WASHER

2шт.

10

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

11

425-1010

NUT,5/8"-11, G5

2шт.

12

87312

PRESSURE PIPE

- repair

2шт.

13

6529713

CHAIN (AG)

CHAIN - coil

2шт.

14

766113

CLEVIS

4шт.

15

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.
