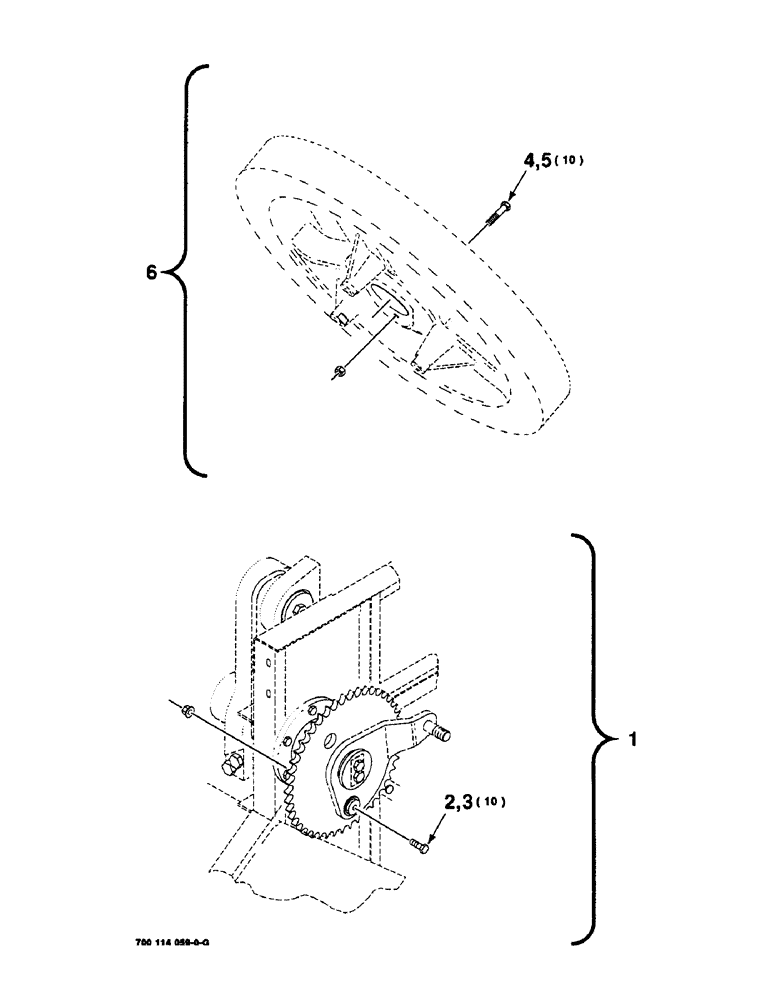

Запчасти Case IH 8590 (9-08) - SHEAR BOLT KITS Decals & Attachments

1

700114059

KIT

SACK OF BOLTS (Includes Ref: 2 & 3)

1шт.

2

426-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

10шт.

3

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

10шт.

4

6521868

BOLT

- shear

10шт.

5

429-107

NUT,7/16"-14, G8

10шт.

6

6521868

BOLT

SACK OF BOLTS (Includes Ref: 4 & 5)

1шт.
