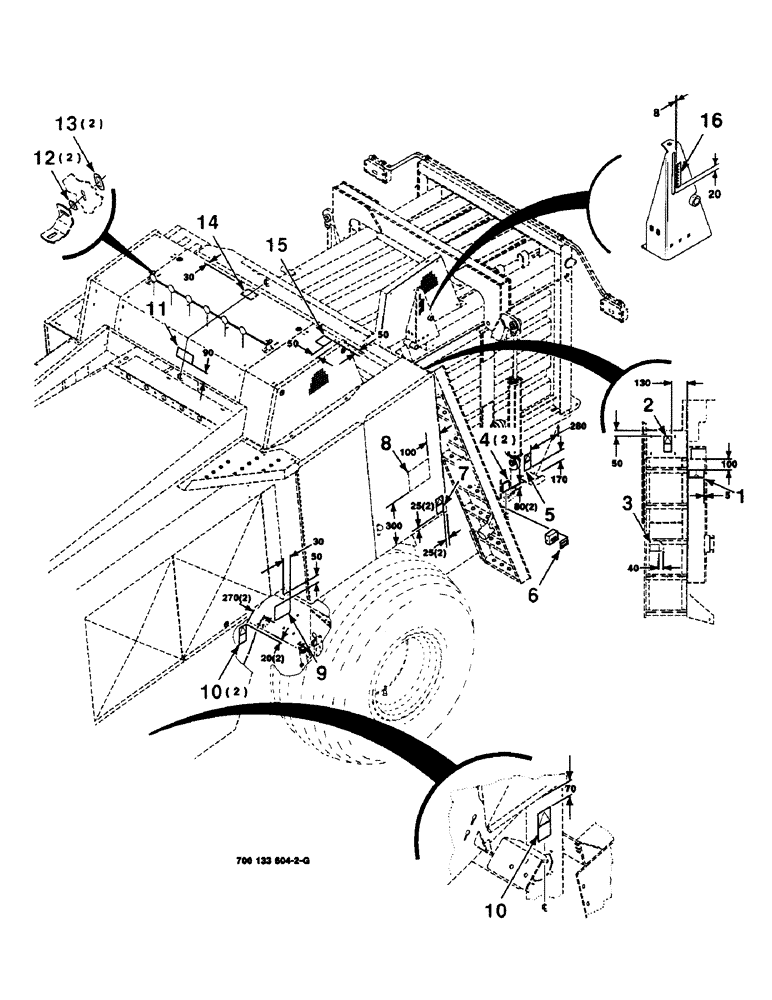

/ / / / / / / / (9-06) - DECALS AND LOCATION DIAGRAM, OPERATIONAL, (CONT)
Запчасти Case IH 8590 (9-06) - DECALS AND LOCATION DIAGRAM, OPERATIONAL, (CONT) Decals & Attachments
13
3
15
4
12
10
16
1
6
14
11
10
8
5
2
7
9
1
700715156
DECAL
- needle, lock
1шт.
2
700715158
DECAL
- elec, shock
1шт.
3
700714662
REFLECTOR
- red
1шт.
4
700714661
REFLECTOR
- amber
2шт.
5
700714074
DECAL
- read, manual
1шт.
6
700715153
DECAL
- lights, switch
1шт.
7
700715157
DECAL
- twine, needles
1шт.
8
8877995
DECAL
- twine, left
1шт.
9
700706990
DECAL
- twine, tension
1шт.
10
700714572
DECAL
- close, shield
3шт.
11
8888026
DECAL
1шт.
12
700709866
WASHER
- washer, camloc
2шт.
13
700709867
DECAL
- slot, camloc
2шт.
14
8888018
DECAL
1шт.
15
8877730
DECAL
1шт.
16
700714164
DECAL
- indicator
1шт.
