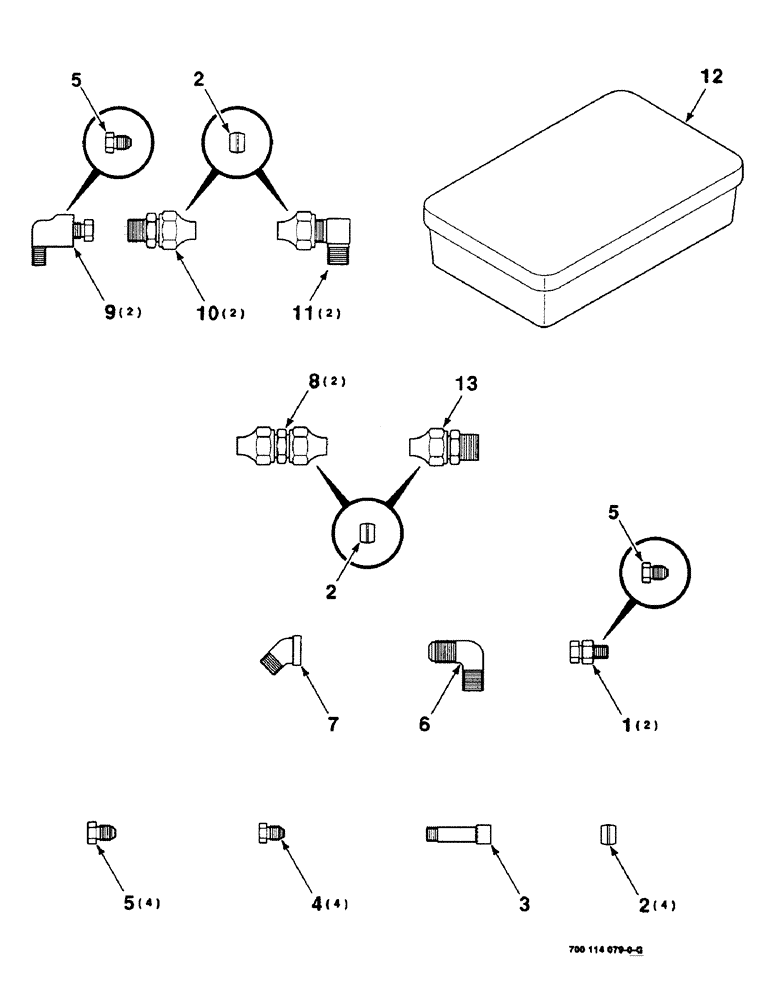

Запчасти Case IH 8590 (6-56) - LUBE KIT, CENTRALIZED, BOX OF SERVICE PARTS, 700114079 BOX OF SERVICE PARTS (14) - BALE CHAMBER

700114079

KIT

BOX OF SERVICE PARTS

1шт.

1

8746778

TUBE NUT

CONNECTOR (Includes Ref: 5)

2шт.

2

30774V

FERRULE

SLEEVE - ball

4шт.

3

700706280

HYD CONNECTOR

EXTENSION - zerk

1шт.

4

700706277

TUBE NUT

- compression

4шт.

5

219-302

TUBE NUT

- compression

6шт.

6

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

90 DEGREE ELBOW - male

1шт.

7

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

Street 45º, 1/8"-27 Female x 1/8"-27 Male

1шт.

8

700706843

HYD CONNECTOR

UNION (Includes item 2)

2шт.

9

51200288

ELBOW

90 DEGREE ELBOW (Includes Ref: 5)

2шт.

10

219-300

ROD, CONNECTING

CONNECTOR - male (Includes Ref: 2)

2шт.

11

222-1845

ELBOW,90 Degree, 7/16"-24 x 1/8" NPT, Comp

90 DEGREE ELBOW - male (Includes Ref: 2)

2шт.

12

700707474

BOX

- plastic

1шт.

13

700706840

HYD CONNECTOR

CONNECTOR - female (Includes Ref: 2)

1шт.
