(9-04) - DECALS AND LOCATION DIAGRAM, OPERATIONAL

Запчасти Case IH 8590 (9-04) - DECALS AND LOCATION DIAGRAM, OPERATIONAL Decals & Attachments

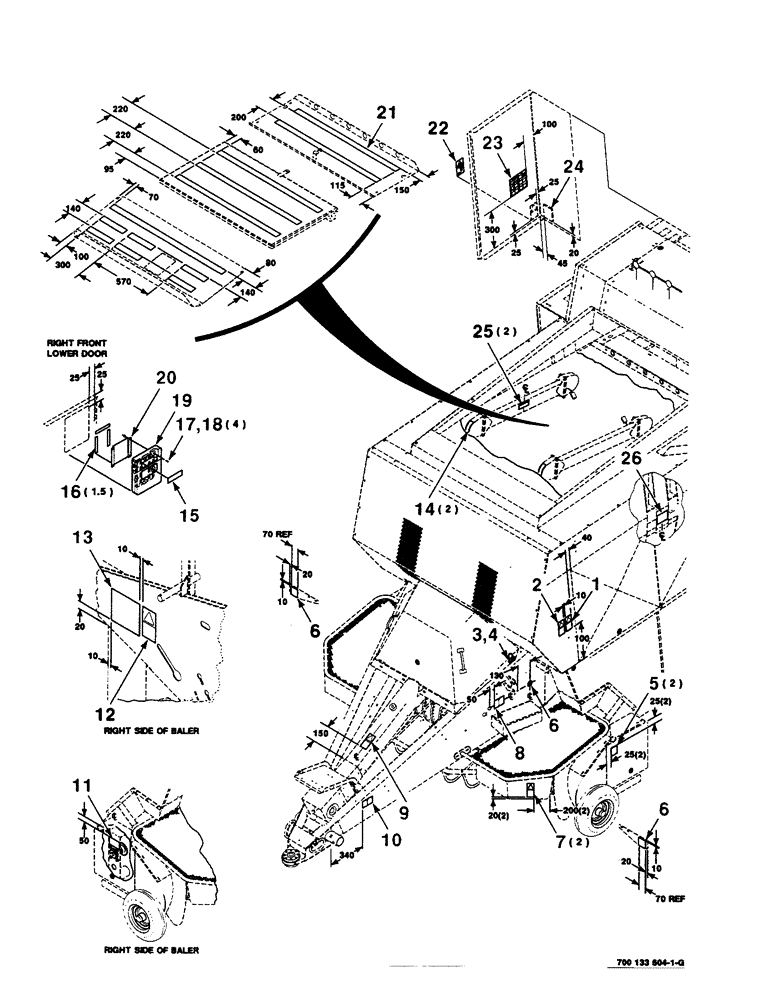

Схема запчастей Case IH 8590 - (9-04) - DECALS AND LOCATION DIAGRAM, OPERATIONAL Decals & Attachments
11
20
3
15
9
17
19
8
4
23
12
18
25
13
16
1
6
14
26
5
21
2
24
6
10
7
6
22
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700715192

DECAL

- engine, off

1шт.

2

700714074

DECAL

- read, manual

1шт.

3

700709866

WASHER

- washer, camloc

1шт.

4

700709867

DECAL

- slot, camloc

1шт.

5

700714661

REFLECTOR

- amber

2шт.

6

700714660

REFLECTOR

- uncolored

2шт.

7

700714570

DECAL

- pickup

2шт.

8

700715154

DECAL

- brake, flywheel

1шт.

9

700715051

DECAL

- PTO, 1000

1шт.

10

700715155

DECAL

- park, brake

1шт.

11

700706633

DECAL

- drive, right

1шт.

12

700714572

DECAL

- close, shield

1шт.

13

700715159

DECAL

- stuffer, adjustment

1шт.

14

700706809

DECAL

- indicator

2шт.

15

700714585

DECAL

- manual, holder

1шт.

16

700714617

TAPE

- double (foot)

1.5шт.

17

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4-20 X 1/2 CRPHMS GR60M

4шт.

18

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

19

700714418

HOLDER

- manual

1шт.

20

700131827

HOLDER

MOUNT - holder, manual

1шт.

21

6849178

WALL

TREAD - safety (10 foot bulk)

1шт.

22

700715157

DECAL

- twine, needles

1шт.

23

8888000

DECAL

- twine, right

1шт.

24

700714662

REFLECTOR

- red

1шт.

25

700706647

DECAL

- notice

2шт.

26

8877334

DECAL

1шт.
