(6-42) - LUBE HARNESS AND VALVE ASSEMBLY, FRONT

Запчасти Case IH 8590 (6-42) - LUBE HARNESS AND VALVE ASSEMBLY, FRONT (14) - BALE CHAMBER

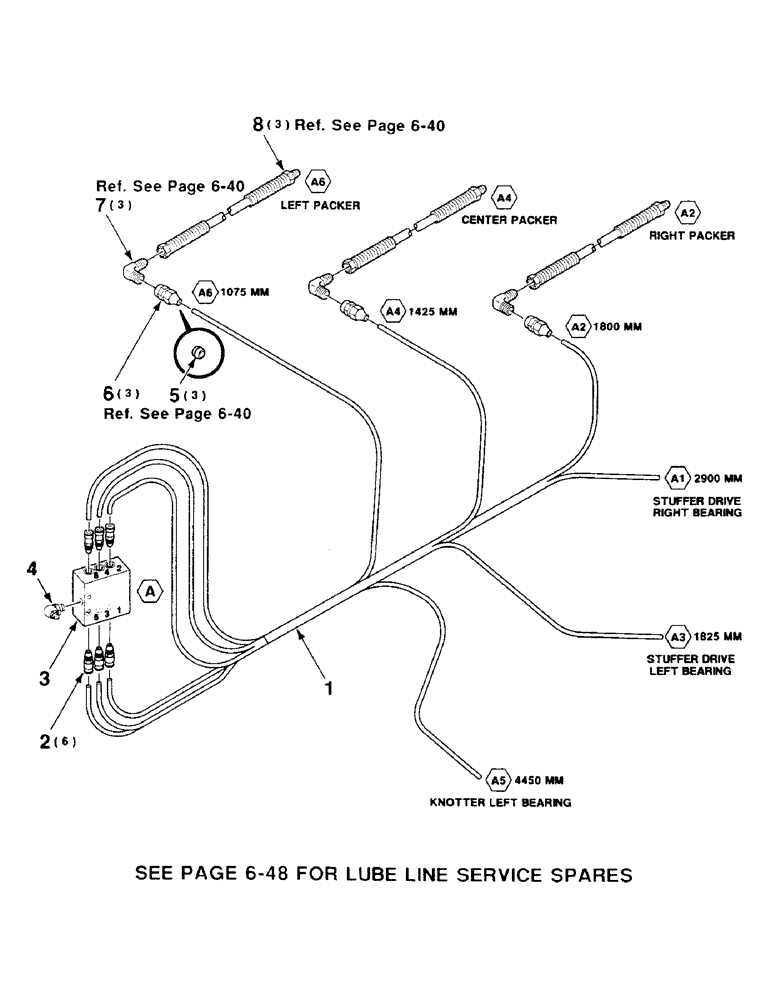

Схема запчастей Case IH 8590 - (6-42) - LUBE HARNESS AND VALVE ASSEMBLY, FRONT (14) - BALE CHAMBER
5
6
2
3
8
4
1
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700113687

FLEXIBLE HOSE

HARNESS - lube, front

1шт.

2

700714008

HYD CONNECTOR

FITTING - quickline

12шт.

3

700706835

MANIFOLD

VALVE BLOCK - lube

1шт.

4

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1/8-27 X 90 DEGREE ZERK

1шт.

5

30774V

FERRULE

SLEEVE - ball

3шт.

6

700706840

HYD CONNECTOR

CONNECTOR - female (Includes Ref: 5)

3шт.

7

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

90 DEGREE ELBOW - male

3шт.

8

700706798

FLEXIBLE HOSE

HOSE

3шт.
