(6-38) - LUBE HARNESS ASSEMBLIES, TWINE FINGER

Запчасти Case IH 8590 (6-38) - LUBE HARNESS ASSEMBLIES, TWINE FINGER (14) - BALE CHAMBER

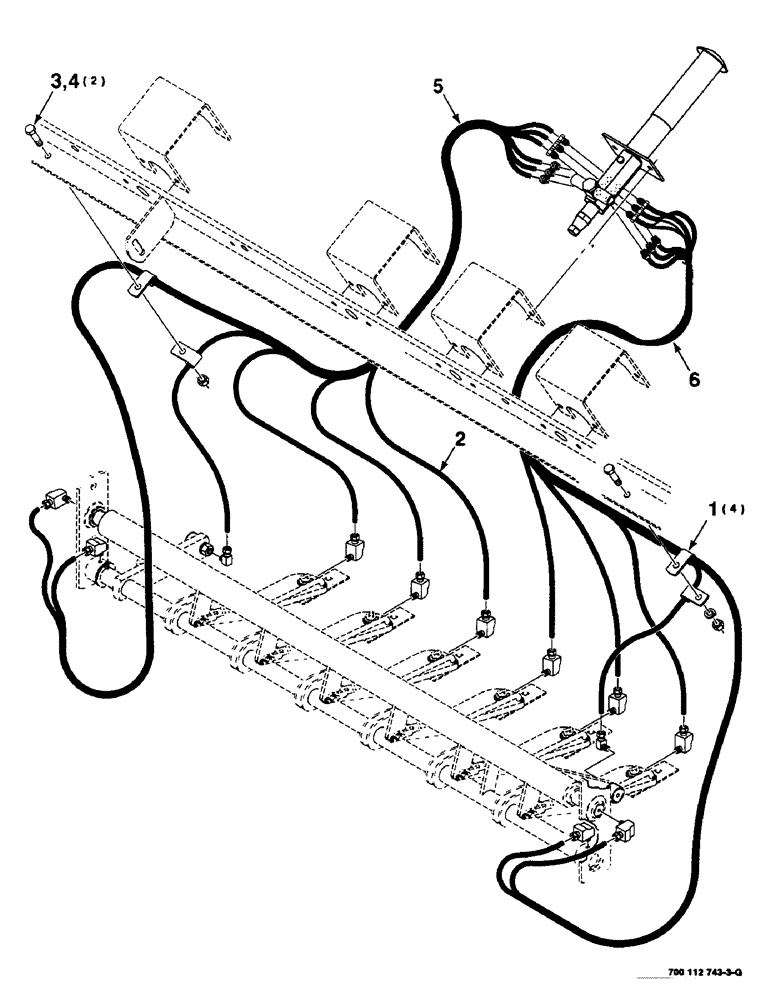

Схема запчастей Case IH 8590 - (6-38) - LUBE HARNESS ASSEMBLIES, TWINE FINGER (14) - BALE CHAMBER
6
4
1
5
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

4шт.

2

700113359

TUBE,0.125" OD, 3048 mm Length

TUBING - nylon (10 foot bulk)

1шт.

3

163-16

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

1/4-20 X 3/4 HWHMS

2шт.

4

1703354

NUT

1/4-20 HFTLN GR/G

2шт.

5

700113356

FLEXIBLE HOSE

HARNESS ASSEMBLY

1шт.

6

700113355

FLEXIBLE HOSE

HARNESS ASSEMBLY

1шт.
